Specifications

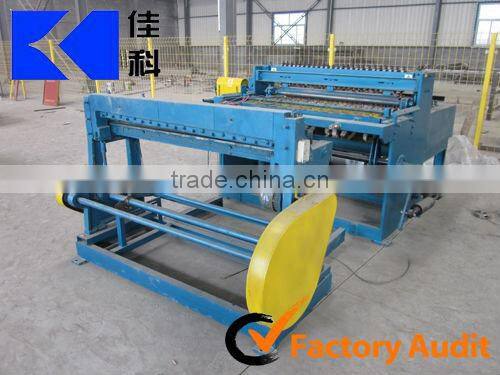

made for poultry cage mesh,It is tailor made, please tell us your need. Daisy Lee, skype:qq1815361000Breed Aquatics Mesh Welding Machine
Breed Aquatics Mesh Welding Machine Function Characteristics:
This machine adopts electrical synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point, and without welded tracks.
Not only welding speed is fast, but also it is easy to learn and operate. Feeding material from coil wire or from the fallen wire structure and drawing materials are automatic, so it is even and accurate, the edge of mesh is regular, it is unnecessary to slice the ends. Drawing mesh adopts the device with elastic tension and fixing mesh, it is easy to regulate mesh hole, and mesh size is rather accurate, welding aperture could also adjust randomly within range.
Breed aquatics mesh: welding for breed aquatic mesh(poultry mesh, coop, pigeon mesh, rabbit mesh and so on.)
Breed Aquatics Mesh Welding Machine Main parameters:
| JK-120B-1 | JK-120B-2 |
Input power | 380V 50Hz | 380V 50Hz |
Max. width | 1200mm | 1200mm |
Line wire space | 25-200mm | 25-200mm |
Cross wire space | 25-200mm | 25-200mm |
Line wire diameter | 1.8-3.0mm | 1.8-3.0mm |
Cross wire diameter | 1.8-2.5mm | 1.8-3.0mm |
Rated capacity | 60kva*2 | 60kva*2 |
Welding point No. | 16 | 16 |
Motor power | 2.2KW | 2.2KW |
Feed line wire | Coil wire | Coil wire |
Feed cross wire | Coil wire | Coil wire & Pre-cut wire |
Cutting mesh | Automatic & Manual | Automatic & Manual |
Welding speed | 55 times/min | 55 times/min |
Weight | 2500kg | 2800kg |
Dimension(L*W*H) | 2500*1800*1400mm | 2500*1800*1500mm |
We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine, chain link fence machine, hexagonal wire netting machine, gabion mesh machine, stone mesh machine, expanded metal mesh machine, barbed wire machine, razor barbed wire machine and so on, please do not hesitate to contact us.
Contact: Daisy Lee
Hebei Jiake Welding Equipment Co.,Ltd
Mobile: :+86-318-15324391556
Fax:+86-0318-7565522
Skype:qq1815361000
Email:qq1815361000 at
Send Inquiry to This Supplier
