Specifications
easy install, and safe.Conveyance convenience,dismantle to install circulating usage,environmental protectionSpecification:
|
Design Data |
load on roof(KN/M2) d speed(KM/H) 3.snow load (KG/M2) if have 5.crane (if have), lift height, lift capacity, |
Size |
1.width 2.length 3.eave height 4.roof slope |
Type |
1.single slope OR double slope 2.muti slope OR single span 4.single floor OR two floors |
Intercolumn |
5m, or 6m…. |
Windows &Door |
1.quantity 2.size 3.Location 4.PVC or aluminum |
Column &Beam |
straight cross-section OR Variable cross-section |
Roof & Wall Panel |
lorfull corrugated steel sheet 0.326~0.8mm thick ,YX28-205-820(820mm wide), |
Purlin |
1.C purlin size:120~C320,Z 2.purlin size100~Z200 |
Accessories |
Do you need the skylight belts, Ventilators,down pipe, out gutter etc? |
Surface Treatment |
Shot blasting with anti rust paint or hot dip galvanize |
1 Q235 Q345 H section steel structure for columns and beam
2 pre-embeding anchor bolts for connection columns to founction
3 intensive bolts for connection tween columns and beams

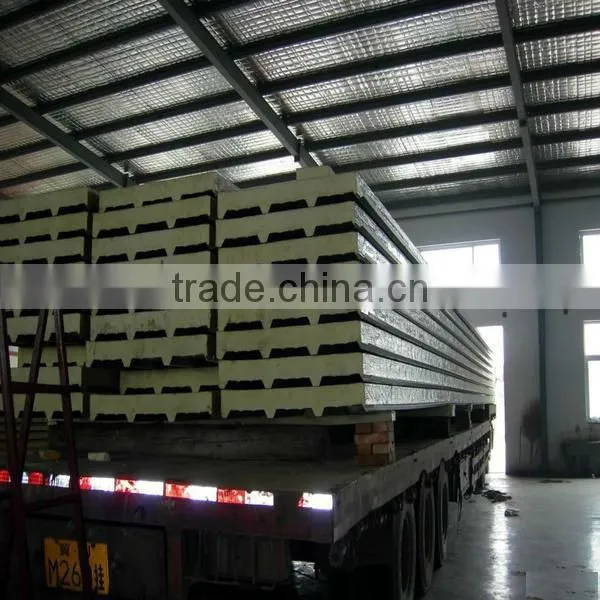

4 wall/roof panel:one layer corrugated steelplate or sandwich panels
5 windows/doors:PVC,aluminum alloy,steel
6 color steel plate or galvanized steel gutters and PVC tubes for rain water
2. Features: fast and flexible to assemble, secure and safe; thermal and noise insulation; water proof and fire prevention.
3. Cost-effective: fast and easy installation greatly shorten the construction time which reduce the costs;
4. Durability: the whole structure is easy in maintenance, and can be used for more than 50years
5. Perfect design: perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention
6. Carrying capacity: with large span can withstands strong wind and seismic impacts and bears heavy loads
7 Advantage : we are very professional and experienced ,as we have built long term relationship with many countries ,Russia, Germany, Philipine and Saudi Arabia …
The scope of application: widely used in kinds of industrial plants, shopping malls, exhibition halls, markets, warehouses, garages, sports venues, workshops, stations, roof constructions, office -buildings, convention centres, stadiums, commercial centres, civil and public buildings etc.
If you needed and have interest ,pls contact us feel free.
