Brand Name |
STL |
||
Item Name: |
Professional design steel structure shed |
||
Material: |
Grade Q235, equivalent to ASTM A36. Grade Q345, equivalent to ASTM A572. |
||
Section: |
Any product shape according to customer's requirements |
||
Certification: |
ISO quality system, Chinese GB50221-2001 |
||
Sand Blast: |
Sweden SA 2.5 Sand blasting |
||
Welding Technology: |
Single level butt welding, fillet welding by electric arc welding, and Gas shielded welding. |
||
Surface treatment: |
Hot dip galvanized, Epoxy zinc rich primer Standard: ISO1461(1999),JIS H 8641-1999,ASTM A 123/A 123M-02 |
||
Welding Testing |
Ultrasonic Testing, X-ray Testing |
||
Manufacturing Technology |
Drilling, Cutting, Assembling, Welding, Rectification, Testing etc |
||
Main Components | |||
Base |
Cement and steel foundation bolts |
||
Main frame |
H beam |
||
Purlin |

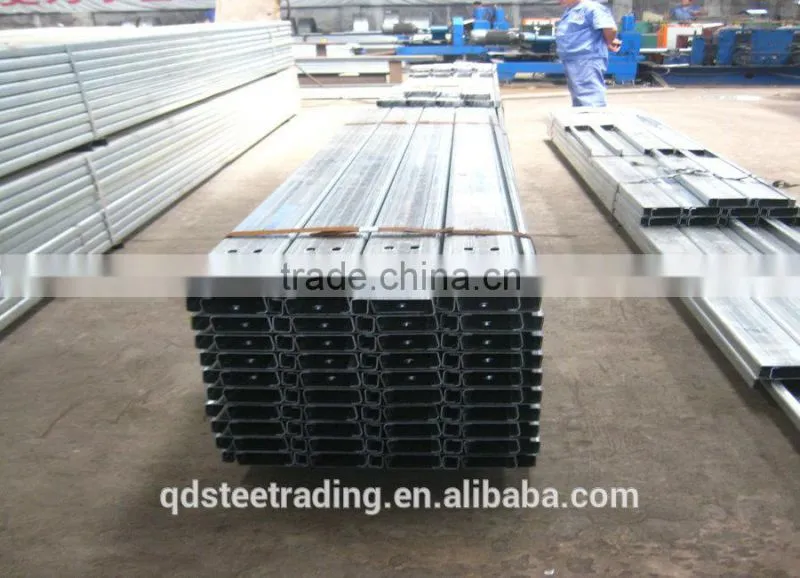

C or z purlin: Size from C120~C320, Z100~Z20 |
||
Bracing |
X-type or other type bracing made from angle, round pipe, etc |
||
Bolt |
Plain bolt and High-stren g th bolt |
||
Roof &wall |
Sandwich panel or color plate |
||
Door |
Sliding or rolling door |
||
Window |
Aluminum alloy window |
||
Sheet |
0.5mm or 0.6mm galvanized sheet |
||
Accessories |
Semi-transparent skylight belts,Ventilators, down pipe, G al vanized gutter, etc |
||
The reason for choose STL | |||
Ø Workshop pre-install. | |||
Ø Professional on-site guidance | |||
Ø Ensure the product quality. | |||
Ø Timely service and progress | |||
Ø Production according welding rules a = 0.7 x thickness of web | |||
Ø Continuous welding on both sides of each pieces | |||
Ø Mark every beam on the bottom plate for being saw after being galvanized | |||
Ø Send pictures to the buyer by mail during products being processed | |||
Ø We have 3 years experience of designing and producing steel structure building | |||
Ø Locating in the QINGdao, only need 1 hour by car, the land transport cost cheaper | |||
|
Ø Our engineers with 10years steel structure design experience and advanced design software and strict design design attitude | |||
Surface Treatment | |||
Hot dip galvanize | |||
Ø Standard: JIS, DIN, ASTM B695-2000 | |||
Ø Hot dip galvanizing hole cutting good looking on surface of | |||
|
Ø Galvanizing process: Steel structural components →Degreasing →Rinsing→ Pickling →Rinsing → Fluxing → Galvanizing →Quenching → (Passivation) → Inspecting →Finished Product | |||
Paint | |||
1. Primer paint one coat 20-30 um | |||
2. Middle paint two coat 40-60 um | |||
|
3. Finish paint one coat 20-30 um Paint type: 1,red primer 2,zinc primer 3,Alkyd primer | |||
|

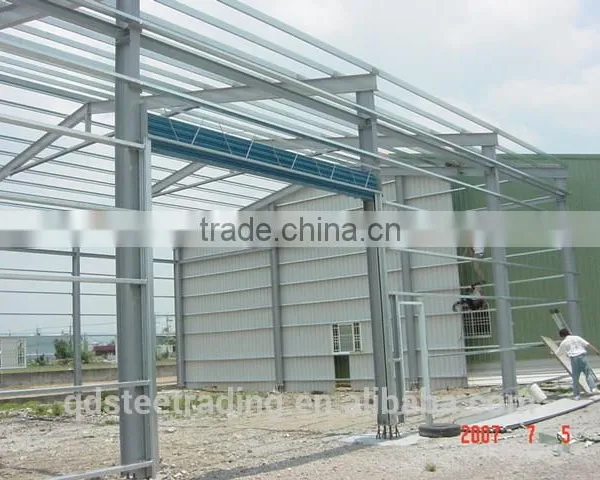

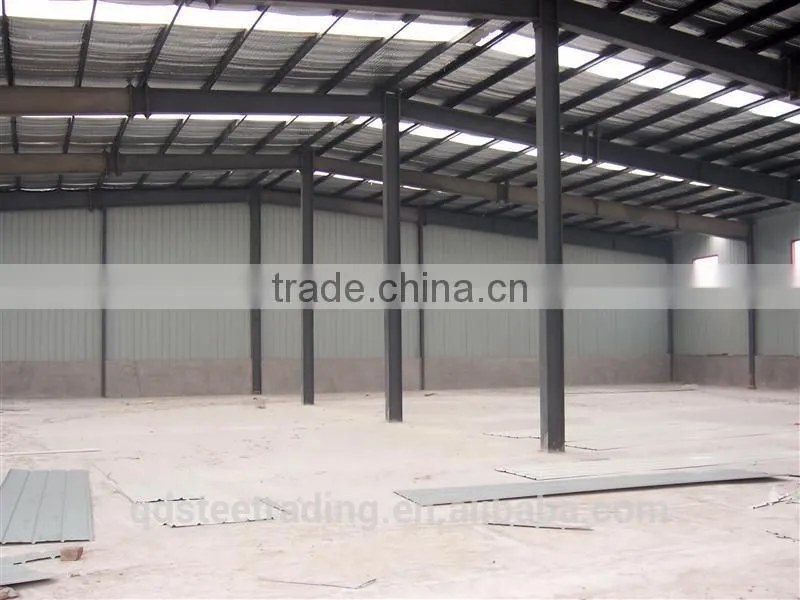

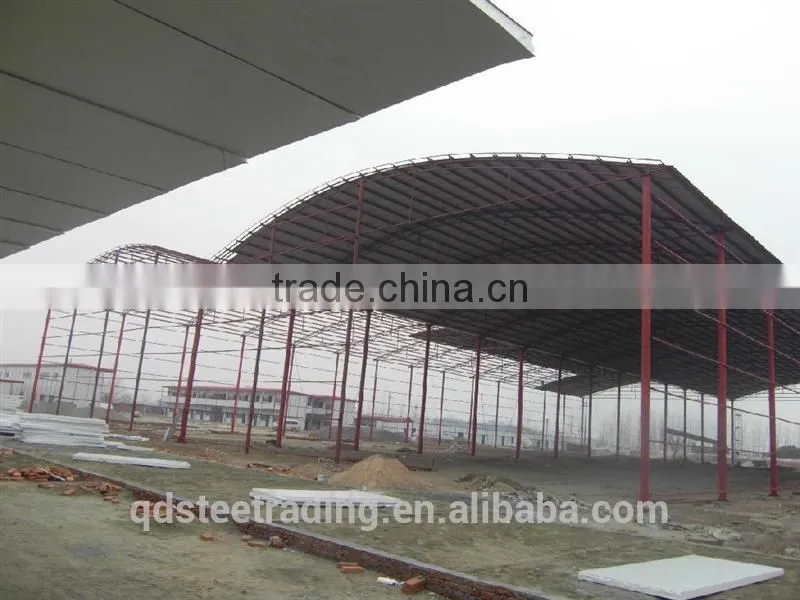

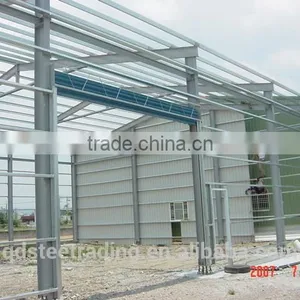

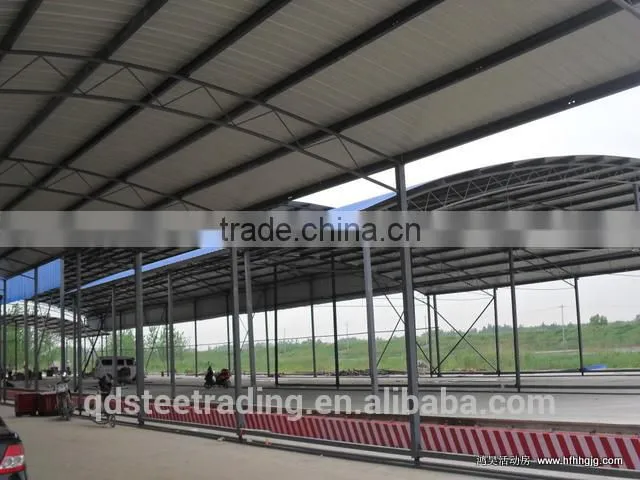

Our Project-- Professional design steel structure shed
| |||
