High quality CE certified HDPE Geocell for roadbed, slope

Specifications

High quality CE certified HDPE Geocell for roadbed, slope
1. material: HDPE.
2. welding distance:330-1000mm.
3. CE

High quality CE certified HDPE Geocell for roadbed, slope







Geocell is made of high intensity HDPE sheet which is welded together according to certain specification.They can be stretched and folded.







Geocell Feature





1. flexible to fold during transportation, stretching out.



2. filled with stone or concrete during service, forming into structure with powerful lateral confinement and rigidity.



3. used as cushion coat to strengthen loading capacity of weak ground or slope protection structure.







Geocell Technical Date





Item Model	Height (mm)	Welding distance (mm)	Sheet thickness (mm)		Tensile yield strength of the cell (MPa)	Seam peel strength (N)
			smooth	textured
TGLG-50-400	50	400	1~1.1	1.4~1.5	20.0	500
TGLG-100-400	100	400	1~1.1	1.4~1.5	20.0	1000
TGLG-150-400	150	400	1~1.1	1.4~1.5	20.0	1500
TGLG-200-400	200	400	1~1.1	1.4~1.5	20.0	2000
TGLG-75-330	75	330	1~1.1	1.4~1.5	20.0	750
TGLG-100-330	100	330	1~1.1	1.4~1.5	20.0	1000
TGLG-150-330	150	330	1~1.1	1.4~1.5	20.0	1500
Notes:(1)welding distance can be made: 330mm, 400mm, 500mm,550mm or according to the demands (2)The special spec or size can be manufactured according to the demands of the contract











Geocell Application







1. Fix railway ground.



2.Fix weak ground of roads and increase loading capacicity.



4.used to build the support block struction.



5.Act as independent wall, dock and break-water.



6.Treat desert, beach, riverbed and bank.

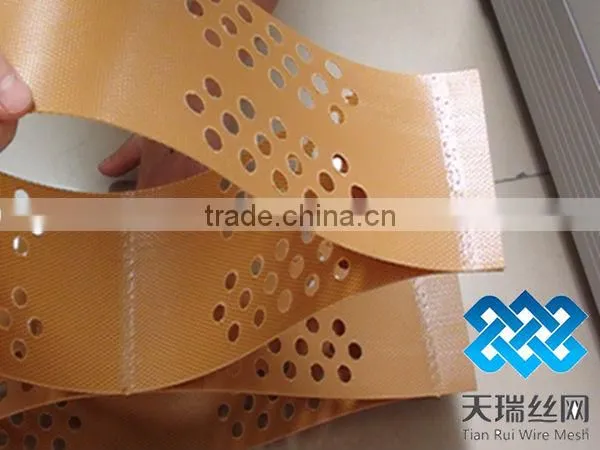

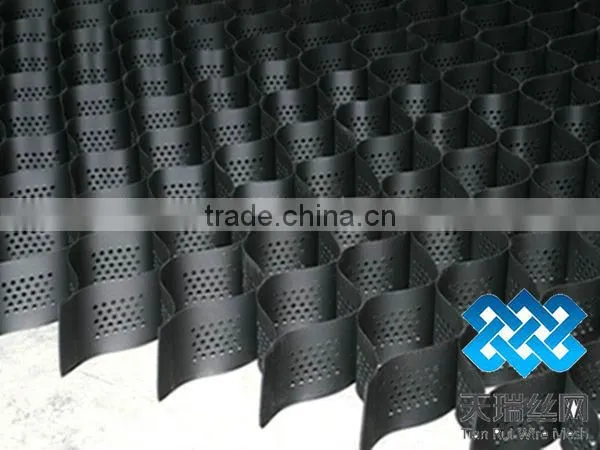

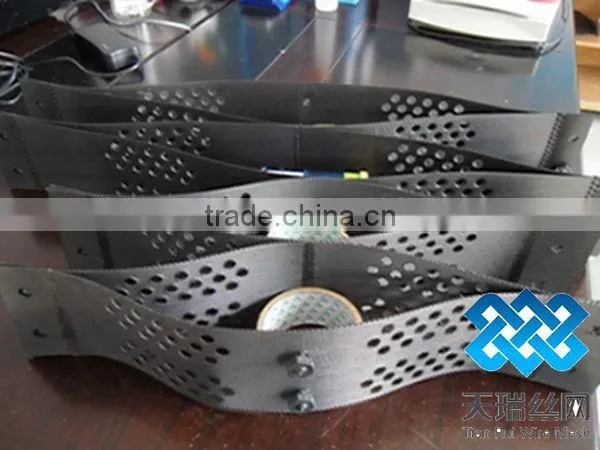

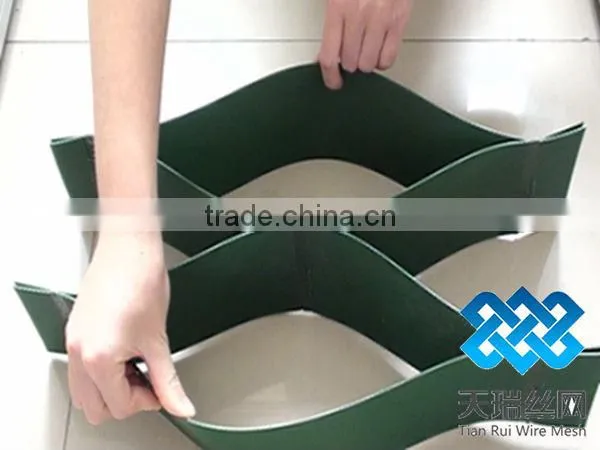

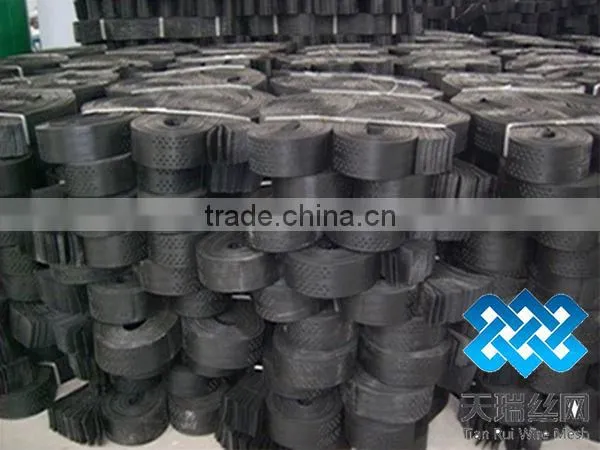

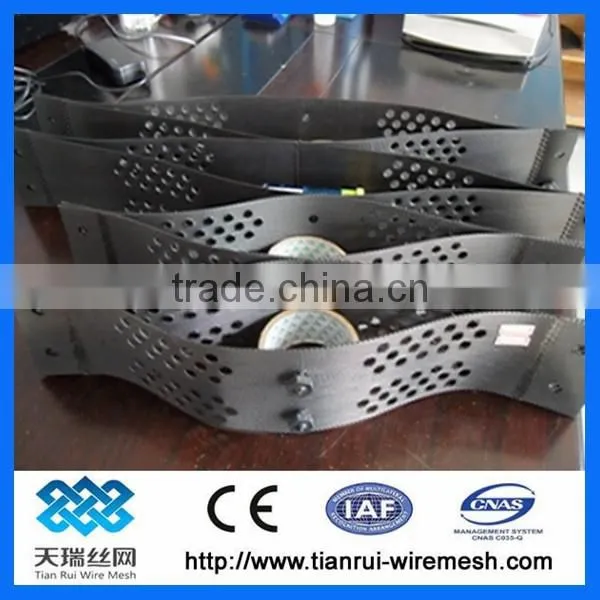

Geocell Photo Details

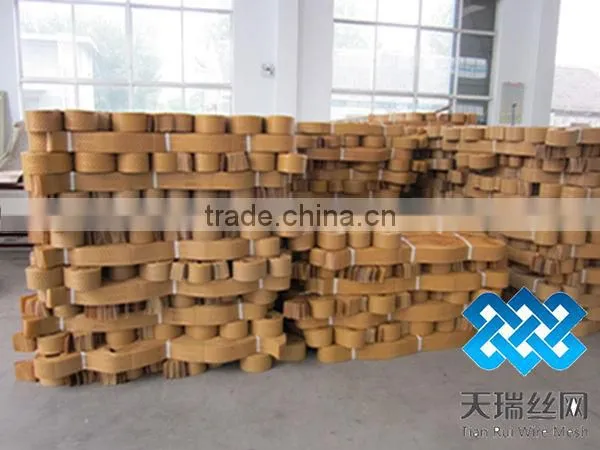

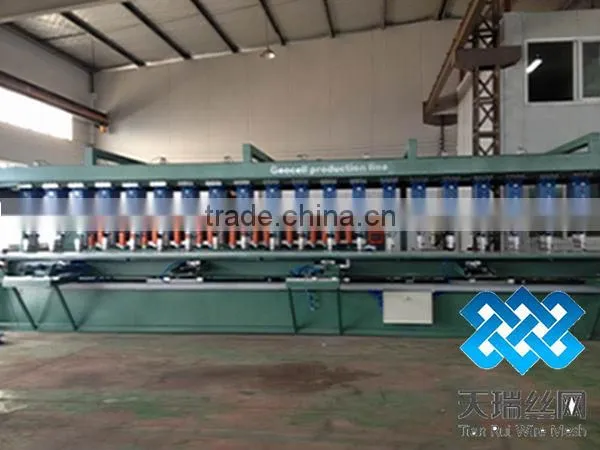

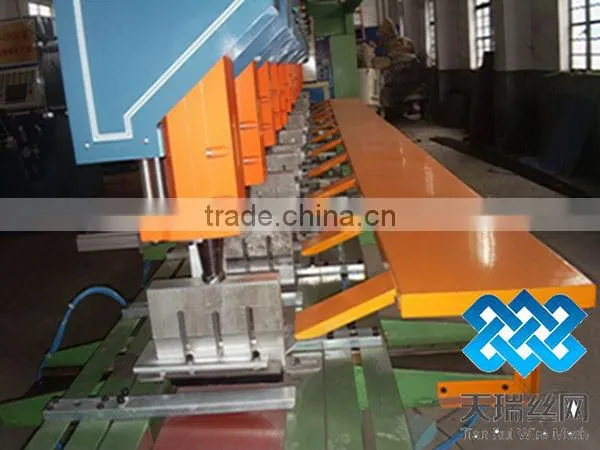

Geocell Production Line

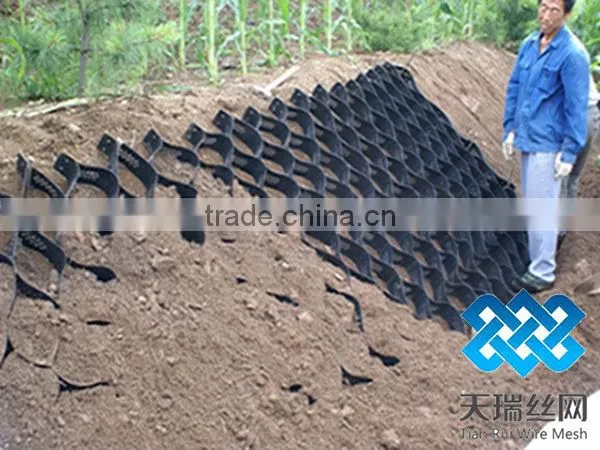

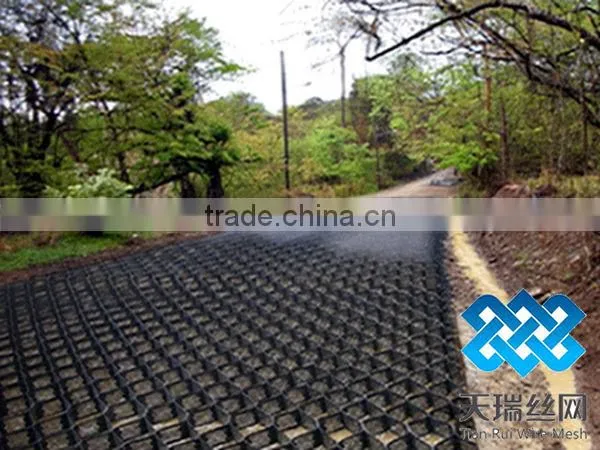

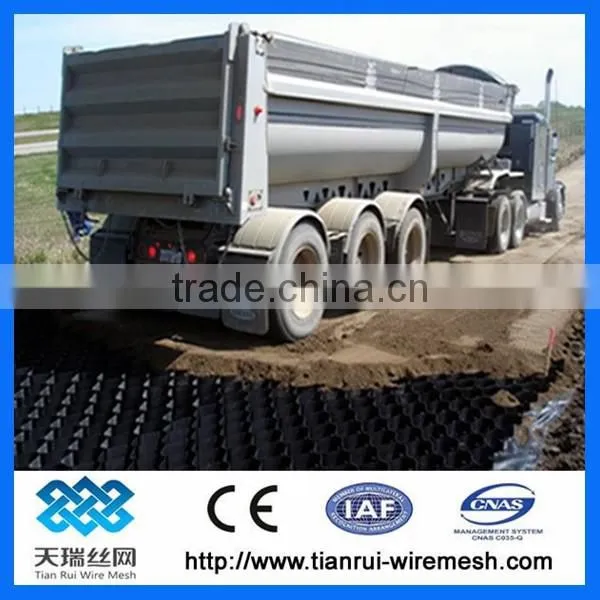

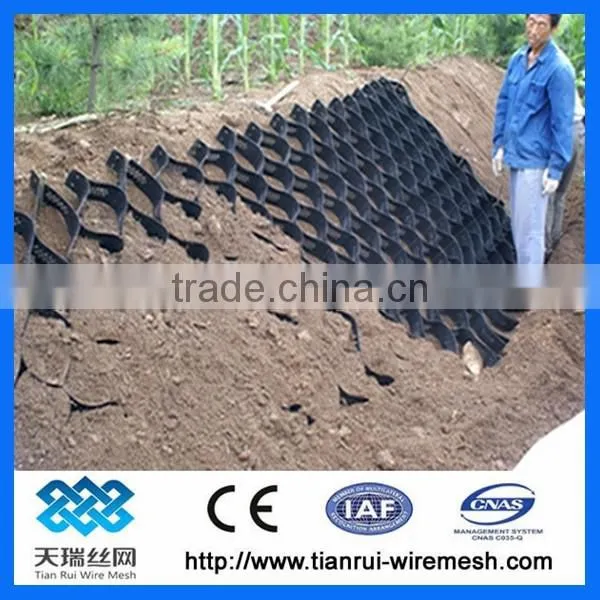

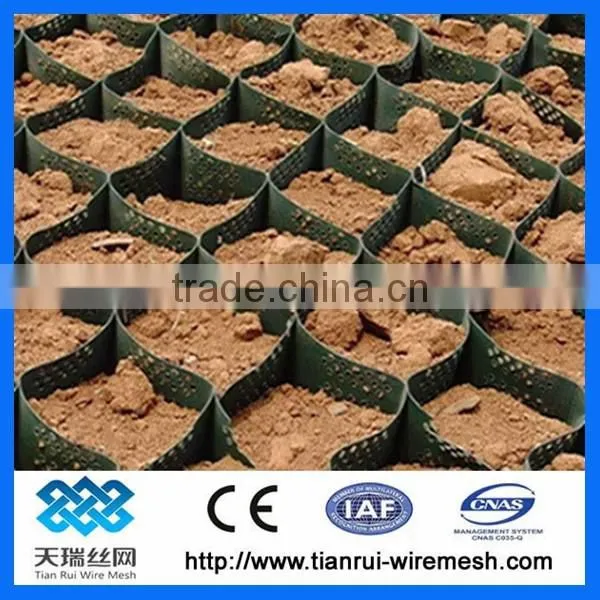

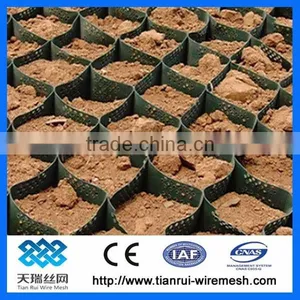

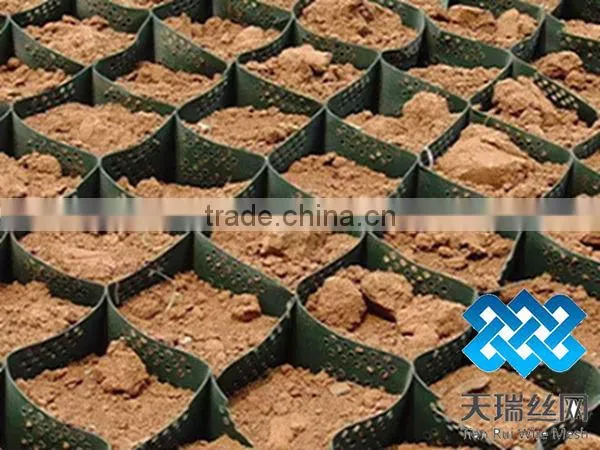

Geocell Application

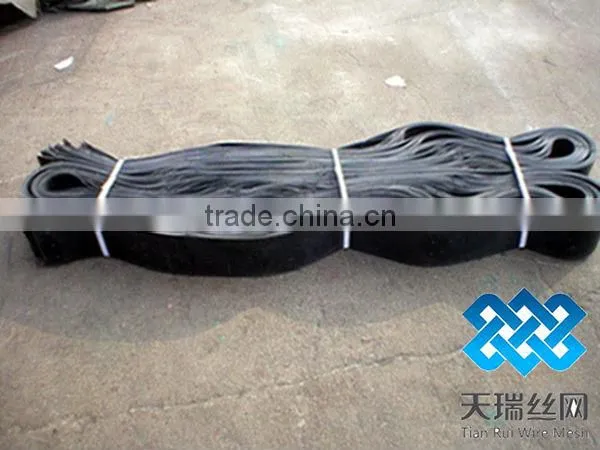

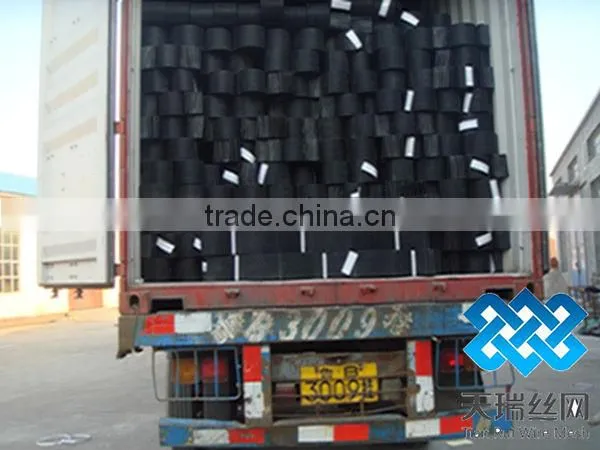

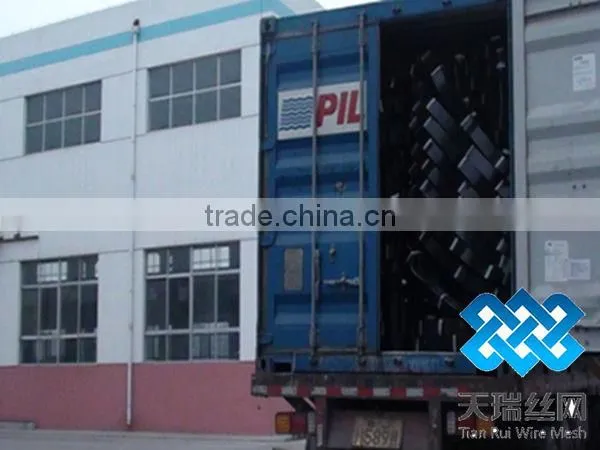

Geocell Loading Container











We are Geocell manufacturer in China, if you have any need, please feel free to contact me.
