Small Type Waste Paper Toilet Paper Machine Toilet Paper Making Machine
Descriptions of Small Type Waste Paper Toilet Paper Machine Toilet Paper Making Machine:
1.Whole line is cheap.
2.Products: toilet paper and tissue paper, napkin, a handkerchief
3.Driver type: frequency control and sub step transmission
Specifications of Small Type Waste Paper Toilet Paper Machine Toilet Paper Making Machine:
1.Output paper :tissue paper
2.Raw material: waste paper
3.Capacity: 0.8-1ton per day
4.Net paper width:787mm
5.Output paper weight: 13-40g/m2
6.Rail gauge:1300mm
7.Working speed: 40-100m/min
8.Drive way: Alternating current, speed control, section driver
9.Cylinder section:Φ1000mm×1100mm stainless steel cylinder mould 1set,
Φ260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.
10.Dryer section:Φ1250mm×1100mm cast iron alloy dyer can 1 set, Φ300mm×1100mm
touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical
pressure device.
11.Paper cutting section: 787mm slitting machine1set .
12.Drive and control section: Alternating current , speed control , section drive
Features of Small Type Waste Paper Toilet Paper Machine Toilet Paper Making Machine:
v This machine adopts PLC computer programming technology, stepless variable
speed pneumatic hydraulic brake, man-machine interface operation
v Easy operation, superior performance, can work continuously don't ask, don't break
v Spiral floating punch, low noise, the use of harmless broken paper, is a production and
processing all kinds of cheap health ,Rewinding paper ideal equipment
v This paper simple operation on board.Paper automatic positioning, the paper transport
mechanism are equipped with elastic adjusting device.
v Rewinding process evenly.Through compaction and adjusting device effectively solves
the tightness of rewinding uneven phenomenon.
v automatic roll, synchronous cutting paper, make continuous work
v spiral perforated knife adopt pneumatic floating control, cutting tool adjusting time, improve
efficiency, prolong the service life of blade.
v finished product number, diameter, weight, random adjustment, easy to operate.

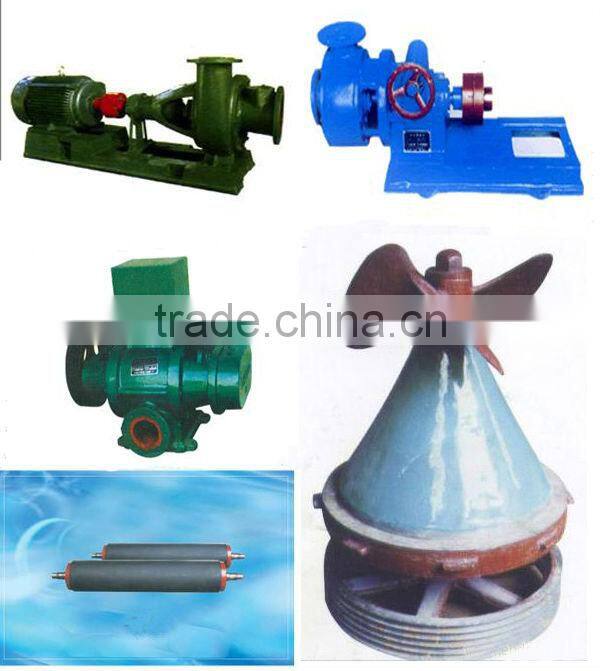

All equipments:
NO. |
Item |
qty(set) |
1 |
787mm tissue paper machine. |
1 |
2 |
Exhaus hood of dryer can |
1 |
3 |
500mm axial-flow ventilator |
1 |
4 |
1.5m3High consistency hydrapulper |
1 |
5 |
0.8m2 High frequency vibrating screen |
1 |
6 |
250mm pulp refiner |
1 |
7 |
500mm Thruster |
2 |
8 |
Sand remover |
3 |
9 |
Suction box |
1 |
10 |
25m3bleacher |
1 |
11 |
4 inch Pulp pump |
5 |
12 |
Vertical mixer |
2 |
13 |
33roots vacuum pump |
1 |
14 |
787mm slitting machine |
1 |
15 |
Electricity control cabinet (Siemens of China) |
1 |
16 |
0.5T boiler(burn coal) |
1 |
More products :
Please click the below picture to see more information .
Toliet paper /tissue paper
Kraft paper / culture paper :
Package: Carton,standard export box ,also can be adjusted at your demand
MOQ: 1 set
Shipment: By sea, By air or By international courier
Port: Main ports of China
Delivery time: 2-5 days after formal order,according to your quantity
Production capacit: 2.000 sets per month
♥Professinoal peson reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
♥Fast delivery for you
♥24 hours on-line service for you
Certification:
Don't worry your TT payment,we do make the shipment as S/C,B/L for your reference!
Zhengzhou Allraising Machinery Company Ltd have been designing, developing,
manufacturing and marketing Machinery for more than 10 years. Firstly we mai-
nly sever china mainland customers, Inorder to adapt to world market development,
now we do the exporting business directly. After theseyears of development, we have
high quality professional teams, skillful talents, strong technical force, strong and
independent research and development capabilities, advanced productionequipment
and a perfect after-sales service system. So choose us, equaling to choose the comp-
etitive price and stable quality both.
Company advantage:
1.Lower price:We produce and export machine directly
2.Competitive price:With a cheaper labor force which make our price more competitive
3.On time shipment:Most developed highway system and logistics deliver company
make sure on time shipment
4.Producing Line:Own advanced manufacturing equipments andcomputer controlled making
machine,so our factory implement assembly line entirely.
5.QC:Strict quality control system to make sure the quality is good and stable.
6.Sincerity:Once cooperation, the whole life friendship. Not for others just for the quality.
Q: Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements
on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our
reputation. Best quality is our principle all the time. You can be assured on our production
completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and
better quality.
If you have any question, please feel free to ontact me.I will reply you soon.
