Home > Products > paper making machine > Paper Bag Making Machine With V Bottom And Square Bottom For Bread,French Fries Food And Shopping Bag
Paper Bag Making Machine With V Bottom And Square Bottom For Bread,French Fries Food And Shopping Bag
- 10 Unit / Units per Month
- Main port of China (mainland )
- T/T Credit Card PayPal
Product Details
| Condition: | New | Machine Type: | Bag Forming Machine | Bag Type: | Shopping Bag |
| Material: | Paper | Computerized: | Other, PAPER BAE MAKING MAHCINE | Place of Origin: | Henan, China |
| Brand Name: | Allraise | Model Number: | AY-LSB320 | Voltage: | 220V/380V |
| Power(W): | 12KW | Dimension(L*W*H): | 8150X2600X1800 mm | Weight: | 7000kg |
| Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Overseas third-party support available |
Product Description

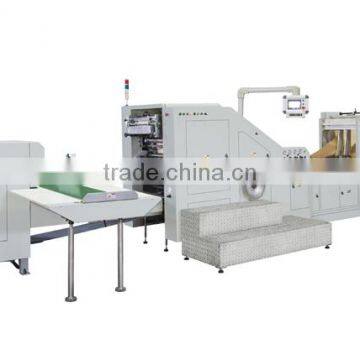

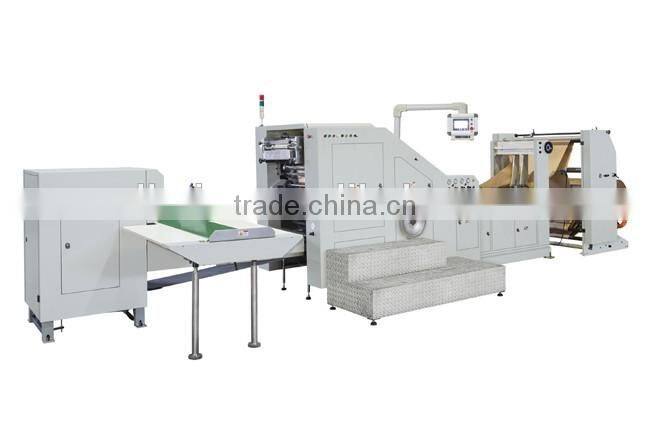

Paper Bag Making Machine With V Bottom And Square Bottom For Bread,French Fries Food And Shopping Bag
Introduction:
The web paper is the original paper bag machine is the original color or printed good paper through the coated plastic, folded into a tube, paper tube cut off, the bottom of the fold, the bottom of the plastic bag bottom forming, finished bag output once completed. The machine is controlled by PC servo control system, touch screen man-machine interface real-time display, can produce a variety of specifications paper bag. It has a fast, easy to change the paper bag specifications, adjust the scope of the advantages of large, is the production of food bags, portable shopping bags the best choice for equipment.
Features:
1. Touch screen man-machine interface, working status real-time display.
2. Ultra-precision servo control system to ensure stable and efficient operation of the machine.
3. Material handling using pneumatic lifting structure.
4. "Fool" automatic constant tension control system, the United States Bellofram precision controller, the tension from the beginning to the end is not bad.
5. Double photoelectric sensor limit automatic correction control system, corrective stability, energy saving, long life.
6. thumb buckle, flat bottom cutting device, bag type a variety of options.
7. Non-stop wheel side clip, adjust the side clip will become very simple and fast.
8. Adhesive roller anti-air coating control, to avoid the glue directly brush the wheel surface, reduce unnecessary trouble.
9. Accurate color tracking system, color error automatically shut down.
10. Automatic lubrication of the oil supply system

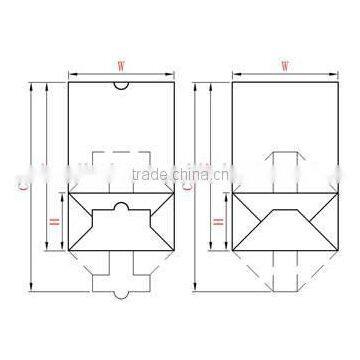

Specification of Shopping Paper Bag Making Machine:
Product name | Square Bottom Paper bag machine AY-LSB320 |
Bag width (w) | 130-320 mm |
Bottom size (H) | 60-150mm |
Bag tube length (L) | 270-530mm |
Max. Speed | 220pcs/min |
Paper roll width | 400-970mm |
Max. Paper roll weight | 600kg |
Max. Paper roll diameter | 1200mm |
Paper inner diameter | 76mm |
Paper weight | 60-170g/m2 |
Rectification control system | Yes |
Automatic electric number marking system | Yes |
Working gas source | ≥0.12m3/min,0.4-1.2 Mpa |
Power | 12KW |
Weight | 7000kg |
Size | 8150*2600*1800mm |
Package: Carton,standard export box ,also can be adjusted at your demand
MOQ: 1 set
Shipment: By sea, By air or By international courier
Port: Main ports of China
Delivery time: 2-5 days after formal order,according to your quantity
Production capacit: 150 sets per month
Zhengzhou Allraise Machinery Company Ltd have been designing, developing,
manufacturing and marketing Machinery for more than 10 years. Firstly we mai-
nly sever china mainland customers, Inorder to adapt to world market development,
now we do the exporting business directly. After theseyears of development, we have
high quality professional teams, skillful talents, strong technical force, strong and
independent research and development capabilities, advanced productionequipment
and a perfect after-sales service system. So choose us, equaling to choose the comp-
etitive price and stable quality both.
Company advantages:
1.Lower price:We produce and export machine directly
2.Competitive price:With a cheaper labor force which make ourprice more competitive
3.On time shipment:Most developed highway system and logistics deliver company
make sure on time shipment
4.Producing Line:Own advanced manufacturing equipments andcomputer controlled making machine,so our factory implement assembly line entirely.
5.QC:Strict quality control system to make sure the quality is good and stable.
6.Sincerity:Once cooperation,the whole life friendship.Not for others just for the quality
Q: Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your require-
ments on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on
our reputation. Best quality is our principle all the time. You can be assured on our
production completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price
and better quality.
If you have any question, please feel free to contact me.
