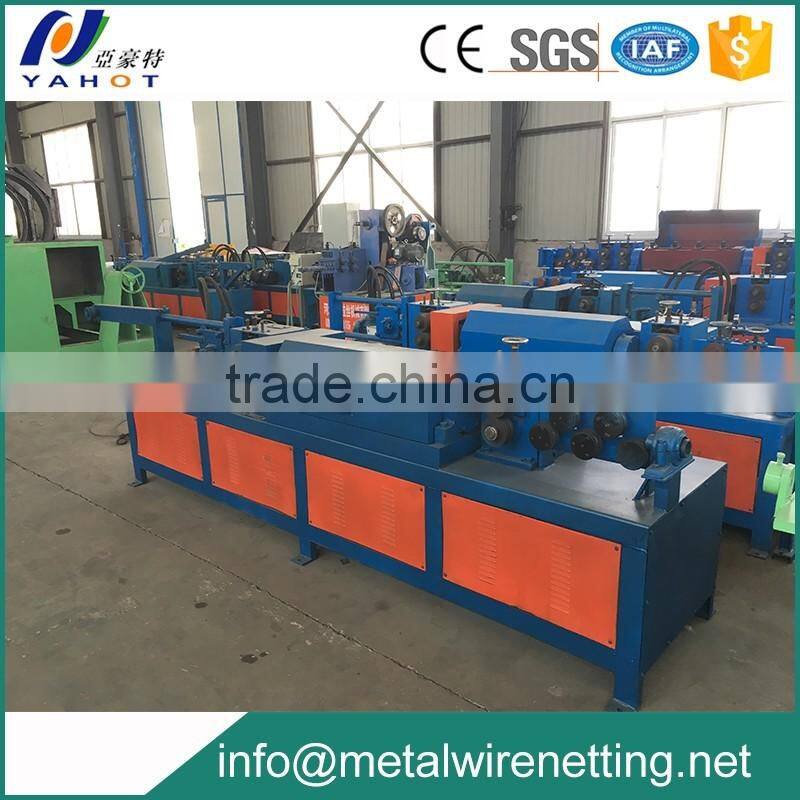

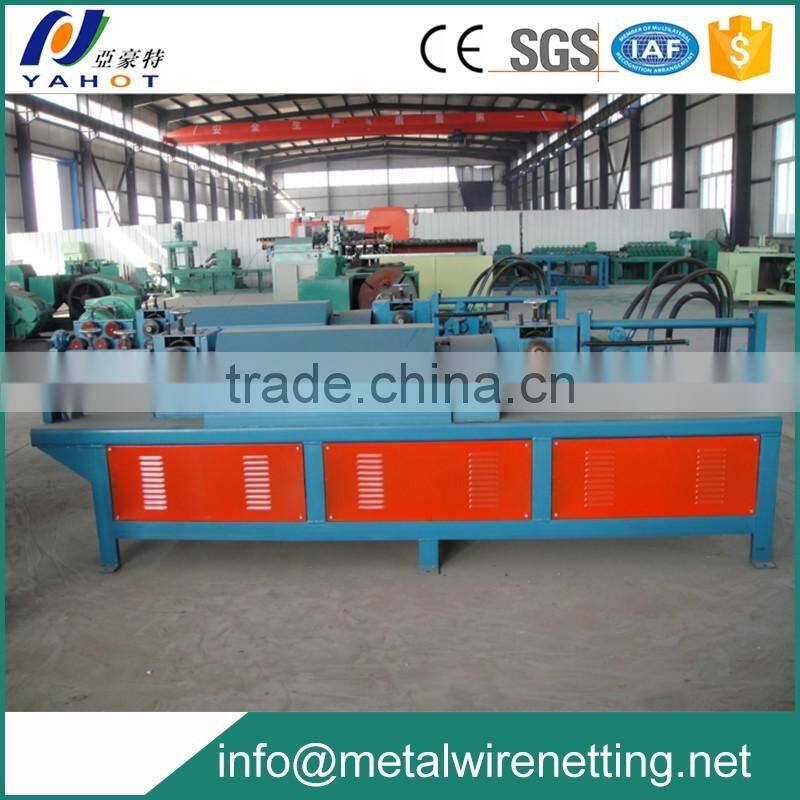

Steel Bar Wire Straightening and Cutting Machine

Steel Bar Wire Straightening and Cutting Machine photo-1

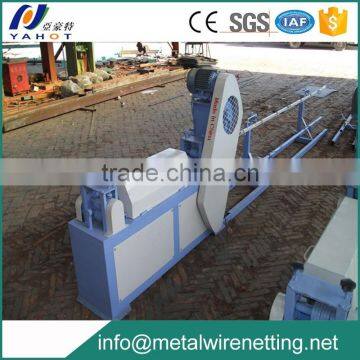

Steel Bar Wire Straightening and Cutting Machine photo-2
Steel Bar Wire Straightening and Cutting Machine photo-3
US$ 700 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Straightener & Cutter
Use:
Bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Straightener & Cutter
Use Bar
Place of Origin Hebei, China
Brand Name YHT
Model Number GT4-12
Voltage 3 Phase 220V/380V/50HZ
Power(W) 4KW
Dimension(L*W*H) 980*760*1380
Weight 600kg
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Contacts

steel bar Wire straightening and cutting machine

Wire straightening machine

1) straighten raw steel wires
2) cut it into set length
3) SS, MS, GI wire

Wire straightening and cutting machine

This machine mainly consists of tray bar rack, straightening rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances. This machine is applicable to straighten and cut all types of metal wire.

3-6mm

Model

SC3-6





wire diameter

3-6mm

Cutting length

30-6000mm

Cut error

±1mm

Speed.

30 m/min

Straight motor

2.2KW

Cut motor

1.5KW

Overall size

7.2*0.5*0.9M

Weight

350KG





5-12mm

Wire Straightening and Cutting Machine

   Hydraulic cutting

Wire diameter

5-12mm

Margin of error

± 1mm

cutting length

Max 12m

Power

380V/50H

speed

30-40meters/minute

Motor

7.5kw  4kw





steel bar Wire straightening and cutting machinesteel bar Wire straightening and cutting machine
