Specifications

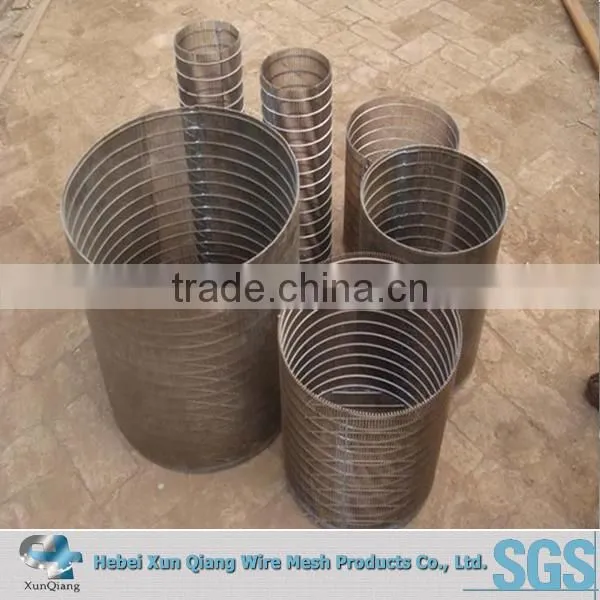

johnson wedge wire well screen1.Materal:SS304 316L etc
2.Slot:0.02mm-6.0mm
3Pipe length:50--5850mm
unction and Characteristics:
1. The sand filter tubes have the efficient sand prevention performance can preferably forbid the formation particle and fulfill the need of sand control.
2. Even filter pores, high permeability and anti-blocking.
3. Large filtering area, small flow resistance and high oil extraction rate
4. Stainless material has the corrosion resistant ability of antacid, alkali and salt, can easily suit the special requirement of the petroleum well. And the slot wont be enlarged because of the corrosion.
5. Multiple structure was welded together with stable filtering pore which made the strong non-deformability.
Material of johnson screen:
stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized wires
Out diameter of johnson screen:
29mm,50mm,68mm,100mm,117mm,168mm,219mm,251mm,278mm
Max diameter :1000mm.
Slot of johnson screen:
0.05mm,0.08mm,0.1mm,0.5mm,1.0mm,1.25mm,2.0mm,2.2mm,3.0mm,3.5mm,5.0mm,6.0mm and so on.
The slot can be made according to the request
Length:
3M & 6M
10MM~5850MM
End connection:
With welded ring & with tread male/female coupling
Specification of the wire and rod
Profile wire:
Width(mm): 1.5,1.8,2.3,3.0,3.3,3.7,4.0,4.5
Height(mm): 1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.70,5.
support rods:
Width(mm): 1.5,2.0,2.3,2.5,3.0,3.3,3.7,4.0,4.5
Height(mm): 1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.5,4.7,5.5
Round rods : diameter from 2.50mm to 6.0mm
Samples are free .we can send to you by DHL TNT Fedex UPS within 5-7 days
3. After-sales service
Our after-sales service start immediately after signing the contract.
No matter FOB or CIF the price term . we would try our best to find a lowest freight cost for customers' reference.
The third-party inspection always gets real and true data from us and we will send production photos to customers
Do our best to help customer arrange the shipment and customs clearance.
Installation, maintenance and repair instructions with full information.
3-8 years warranty depends to different products.
