Specifications

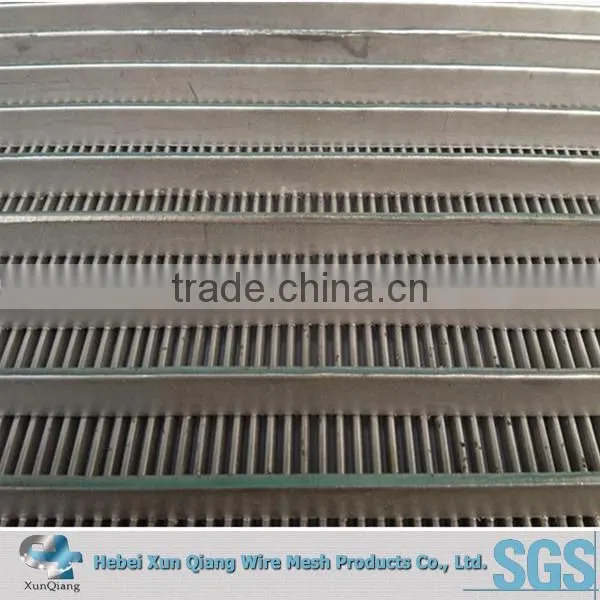

johnson wedge wire screen1.Materal:SS304 316L etc
2.Slot:0.02mm-6.0mm
3Pipe length:50--5850mm
water well screen provided more open area per square foot of screen, allowing more water into the well . it is with firm structure, high temperature and corrosion resistance, good mechanical properities . The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so Johnson screen pipes can filter sand better.
water well screen is widely used throughout the world for water, oil, and gas wells, and is the dominant screen type used in the water well industry.
ADVANTAGES
Non-clogging slot
Large open area
Low pressure drop
Hydraulic efficiency
maximizing flow rates
Mechanical strength
Easy cleaning
Materials of Construction
All types of steel such as carbon steel, galvanized steel, coated steel and stainless steel types 304, 304L, 316, 316L & 430, for example.
| Specification (wedge wire ) | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 |
Specification (support rod): |
Width(mm): 2.30 3.00 3.30 3.70 |
Note: other specifications available as per request | |
Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
Material: |
galvanized low carton (LCG), stainless steel (304,316 etc.) |
Length |
up to 6 meters. |
Diameter |
from 25mm to 1200mm. |
End connection |
Plain beveled ends, flanged or threaded couplings |
Samples are free .we can send to you by DHL TNT Fedex UPS within 5-7 days
3. After-sales service
Our after-sales service start immediately after signing the contract.
No matter FOB or CIF the price term . we would try our best to find a lowest freight cost for customers' reference.
The third-party inspection always gets real and true data from us and we will send production photos to customers
Do our best to help customer arrange the shipment and customs clearance.
Installation, maintenance and repair instructions with full information.
3-8 years warranty depends to different products.
