Low cost Q235 prefabricated large span industrial steel structure garden shed storage shed:
1. Description of low cost Q235 prefabricated large span industrial steel structure garden shed storage shed:
Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof an walls using a variety of panels and other components such as windows, doors, cranes, etc.
Light steel structure building is widely used in warehouses, workshops, large factories, etc.
2. low cost Q235 prefabricated large span industrial steel structure garden shed storage shed:
1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
2. Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
3. Fast construction and easy in installation
4. Long term service life: more than 50 years.
5. Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.
3. Main parts of low cost Q235 prefabricated large span industrial steel structure garden shed storage shed:
Name |
Specification |
Length |
Single slope, double slope, muti slope |
Width |
Single span, double-span, Multi-span |
Height |
single floor, double floors |
Column |
Q235, Q345 welding H section steel |
Beam |
Q235, Q345 welding H section steel |
Purlin |
Q235 C channel or Z channel |
Knee brace |
Q235 angle steel |
Tie bar |
Q235 steel pipe |
Brace |
Q235 round bar |
Cladding system |
sandwich panels (EPS, PU, Fiber glass wool etc.) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze. |
Partition wall |
sandwich panels (EPS, PU, Fiber glass wool etc.) |
Ventilation: |
ventilator |
Door |
sandwich panel sliding door or roller door |
Gutter |
stainless steel or color steel sheet |
Rainspout: |
PVC |
Live load on roof |
In 120kg/Sqm (Color steel panel surrounded) |
Wind resistance grade |
12 |
Earthquake-resistance |
8degree |
Structure usage |
Up to 50 years |

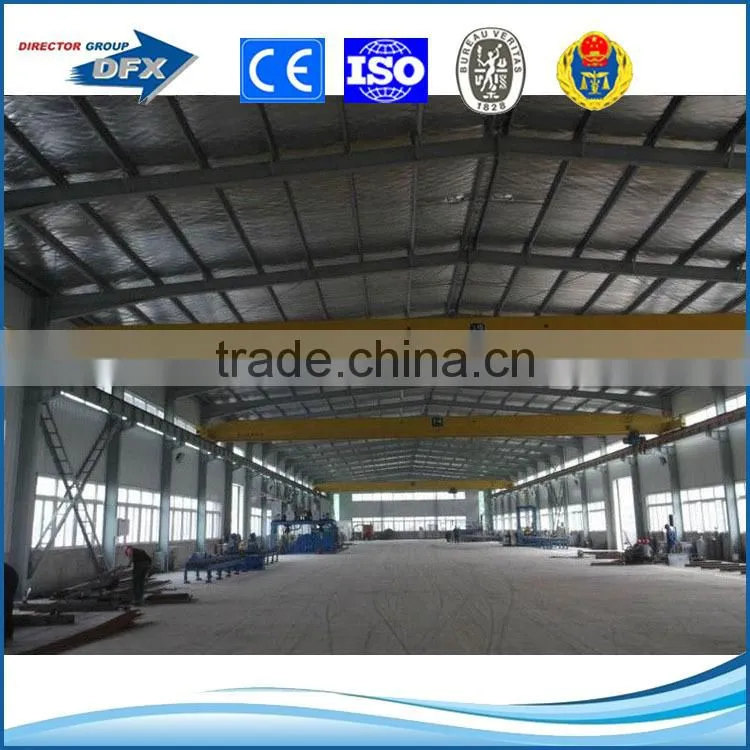

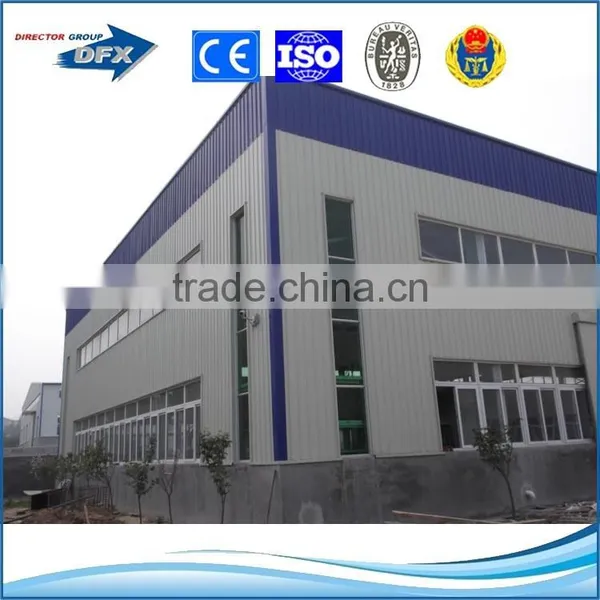

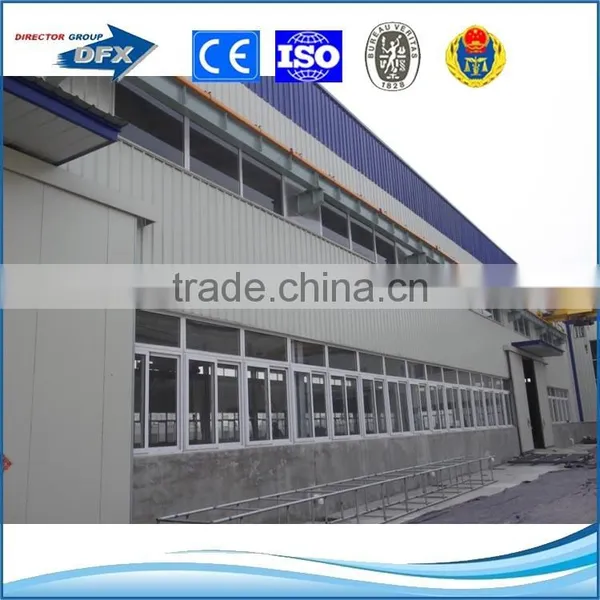

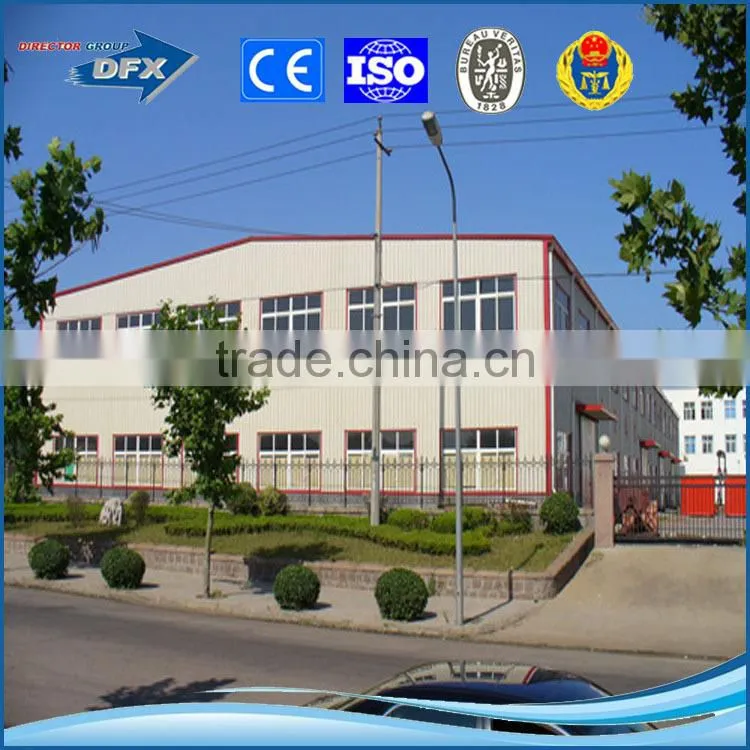

4. Pictures of low cost Q235 prefabricated large span industrial steel structure garden shed storage shed:
Oversea projects we undertook in the last few years:
Industrial Warehouse (13000 M2 )—Brazil
Warehouse (14000M2)---- Georgia
Workshop (12000M2)----France
Warehouse(3600M2)---Belerus
Vegetable Market(2500M2)---- Mauritius
Pig shed(3500M2)---Australia
Chicken shed(2800M2)—Philippines
Aircraft Hangar(1300M2)------Maldives
Warehouse(900M2)---- Russia
Prefabricated house(70M2)----800 sets---Angola
Container house(20’)-----60 sets—Australia
We can provide the quotation , if you confirm the information as bellow:
*Wind speed(KM/H)
*Snow load (KG/M2)
*Rain load (KG/M2)
*Earthquake load if have
*Demands for doors and windows
*Crane (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!
Loading pictures of low cost Q235 prefabricated large span industrial steel structure garden shed storage shed:
Any more detailed information or inquriy, welcome to send us your request. We will answer and quote you very soon. And we also welcome you to visit our factory and talk details on this project.
Name: Wilfred Wu
Office tele: +86 532 66710825
Mobile : +86 13583256881 (viber & whatsapp)
skype : newwilfred
