Large span steel frame factory layout design:
1. Description of large span steel frame factory layout design:
The Q345 galvanized steel structure is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings. And the steel structure workshop is good at easy installation, stable structure, earthquake proofing, water proofing, energy conserving and environmental protection, etc.
2. Specification of large span steel frame factory layout design:
| Specification: | ||
| 1 | Main steel structure | H section steel structure |
| 2 | Steel surface treatment | painting or galvanization |
| 3 | Bracing | angle steel, belt bar, steel bar, etc. |
| 4 | Wall and roof panel | EPS, rock wool, fiber glass, PU sandwich panel or one layer corrugated steel plate |
| 5 | Bolts | anchor bolts, intensive bolts, commen bolts |
| 6 | Purlin | C section, Z section purlin in different size |
| 7 | Edge cover | Made of color steel plate |
| 8 | Gutter and down pipe | Gutter made of color steel plate or galvanization plate, PVC down pipe |
| 9 | Crane | Crane to lift 2 ton to 10 ton |
| 10 | Door | Sliding door, rolling door, lift door, etc. |
| 11 | Window | PVC window, aluminium window, steel window, etc. |
| 12 | Accessories | Nails, sealing glue, gasket, etc. |
| Customized design information: | ||
| 1 | Dimension | Length, width, height |
| 2 | Loads | Wind load, snow load, live load, dead load, etc. |
| 3 | Wall/roof thickness | With insulation: 50mm to 200mm; without insulation: 0.4mm to 0.6mm |
| 4 | Size of window and door | Door material, size |
| 5 | Steel surface treating | Painting, hot galvanization |
| 6 | Crane | If need crane, the lift weight and height |
3. Characters of large span steel frame factory layout design:
a) Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.
b) Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.
c) Fast construction and easy in installation
d) Long term service life: more than 50 years.
e) Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving

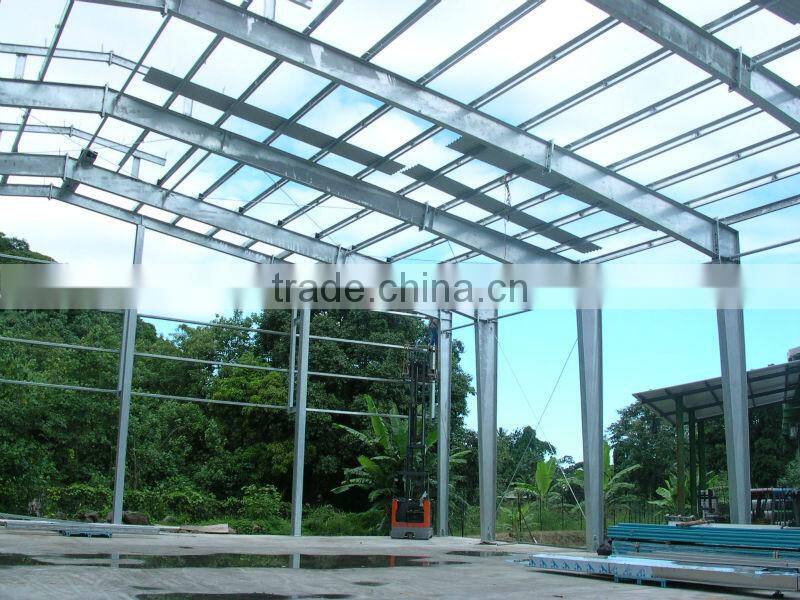

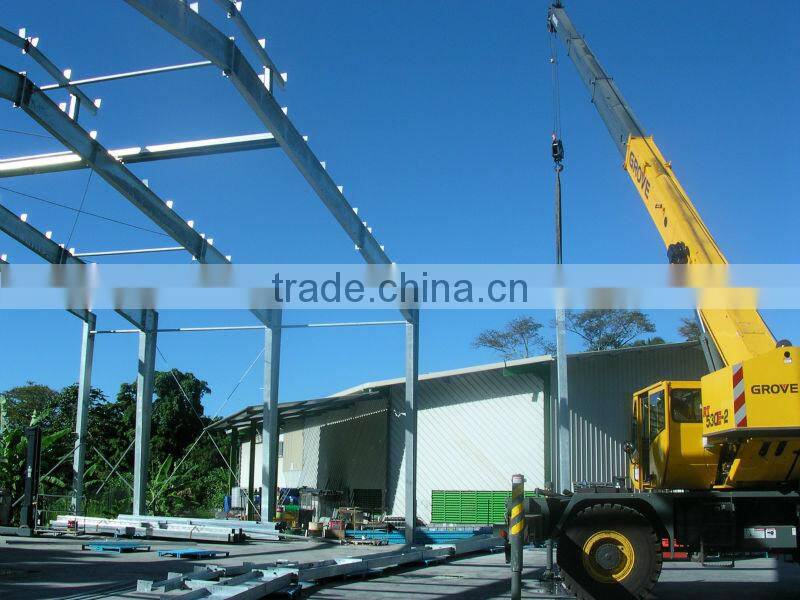

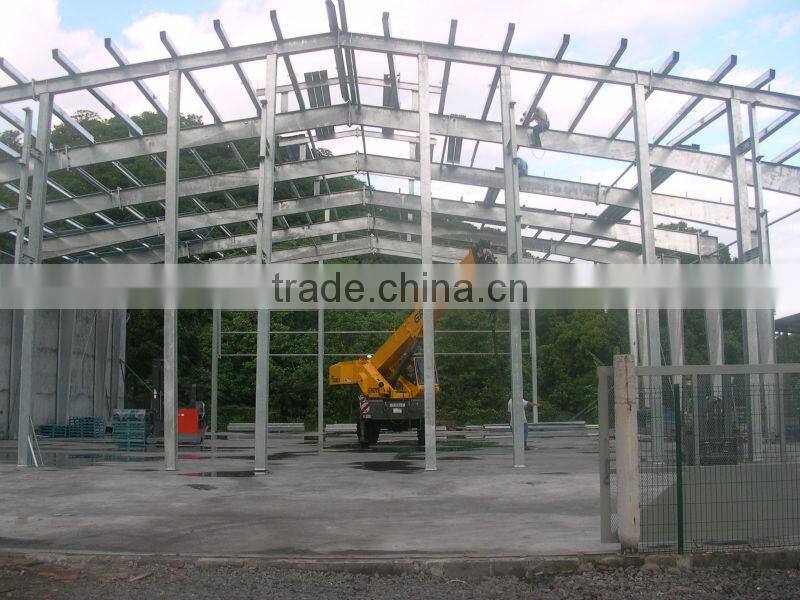

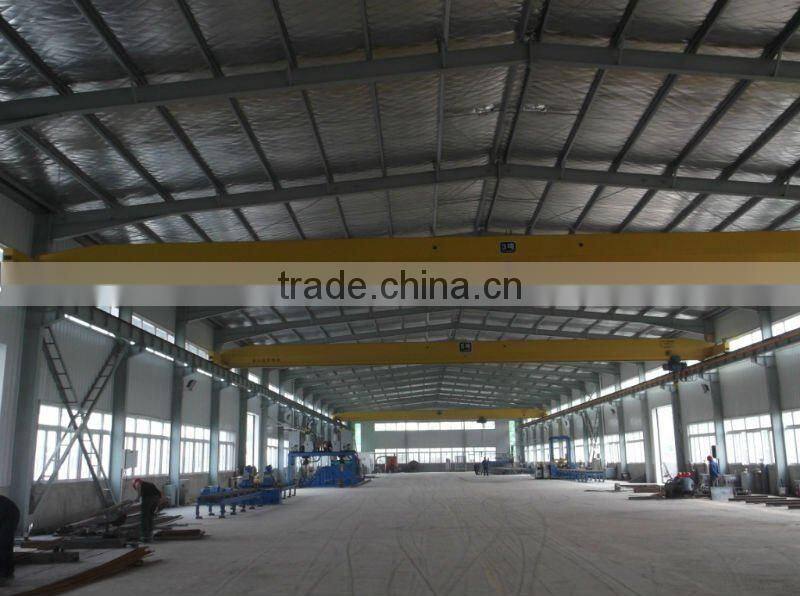

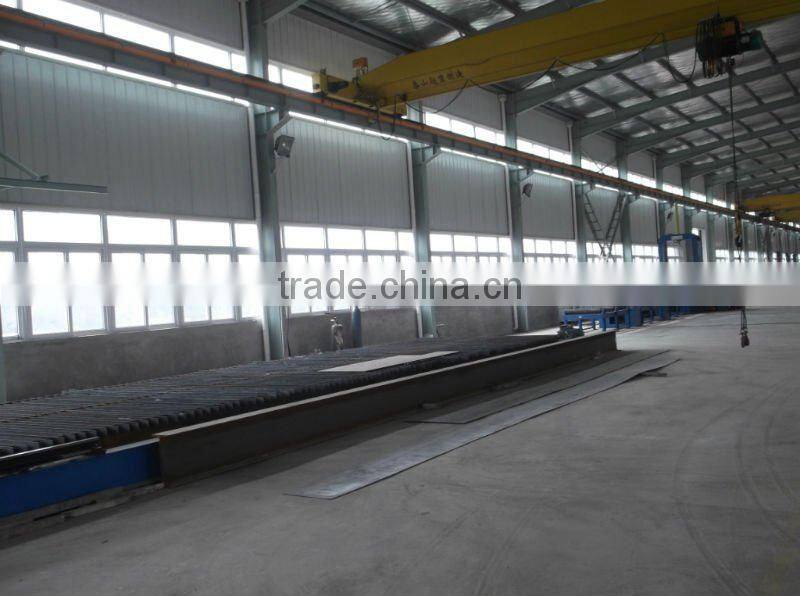

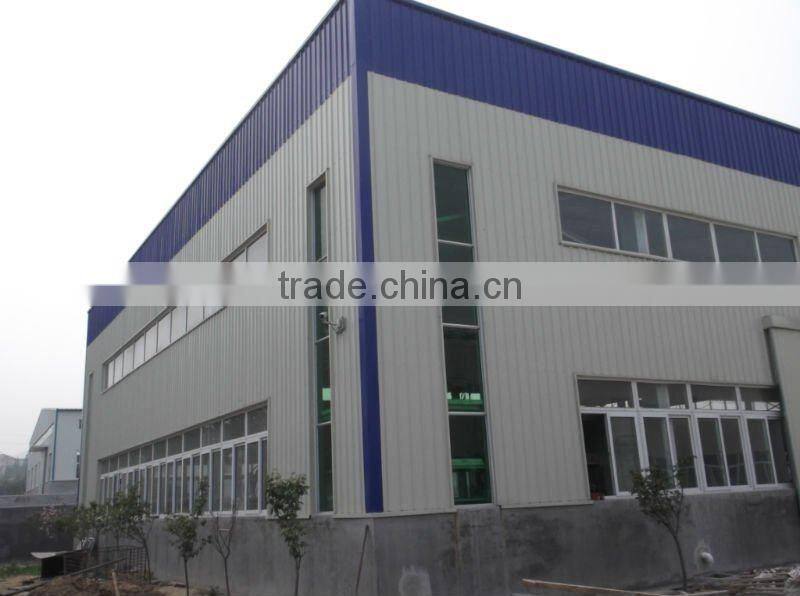

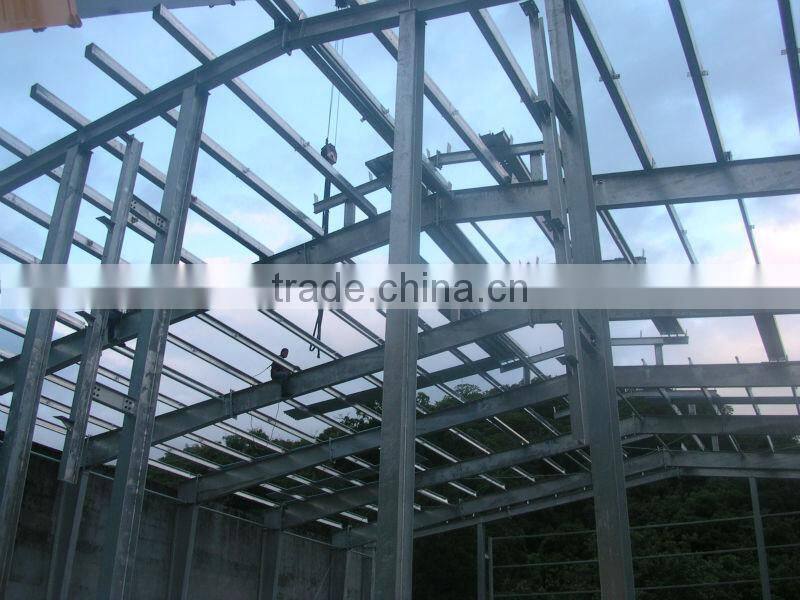

4. Pictures of large span steel frame factory layout design:
5. Production equipments of large span steel frame factory layout design:
6. Oversea projects we undertook in the last few years:
Industrial Warehouse (13000 M2 )—Brazil
Warehouse (14000M2)---- Georgia
Workshop (12000M2)----France
Warehouse(3600M2)---Belerus
Vegetable Market(2500M2)---- Mauritius
Pig shed(3500M2)---Australia
Chicken shed(2800M2)—Philippines
Aircraft Hangar(1300M2)------Maldives
Warehouse(900M2)---- Russia
Prefabricated house(70M2)----800 sets---Angola
Container house(20’)-----60 sets—Australia
