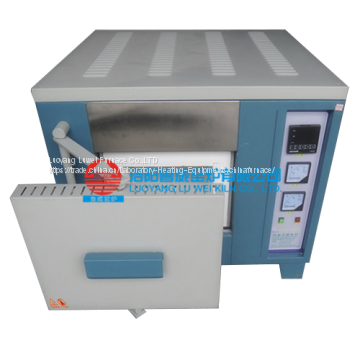

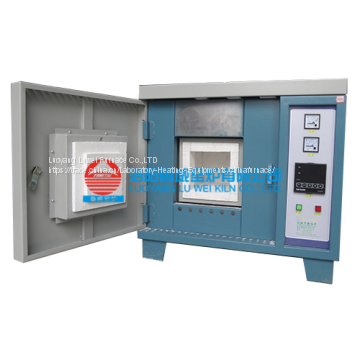

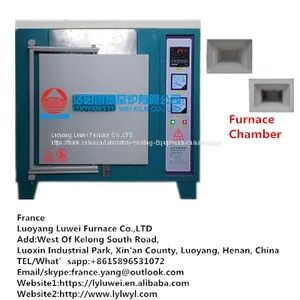

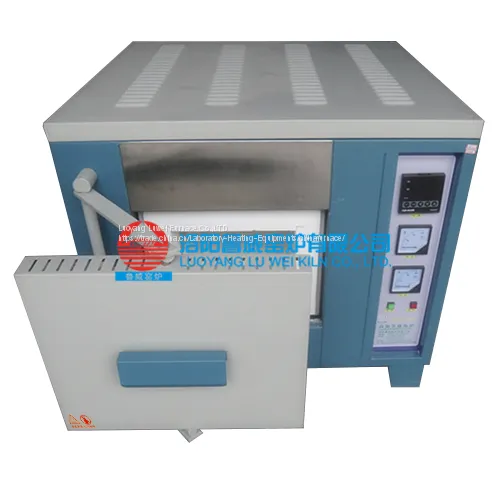

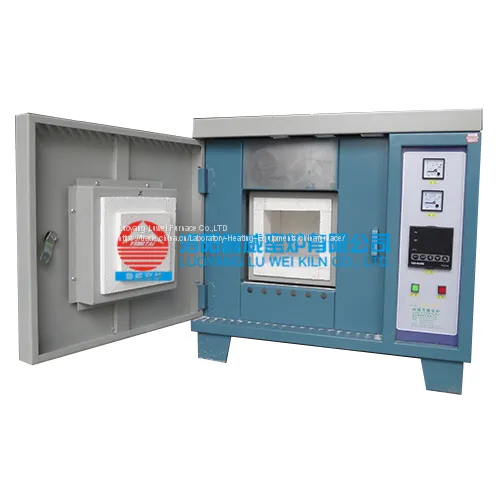

Reliable PID Control Programmable
Quality High Temperature used muffle furnace lab furnace
Usage :
1. In chemical analysis.
2. Physical decomposition and synthesis,superhard materials (such as ceramic)
3. Metal heat treatment of sintering process research and other scientific experiments
4. Universities and colleges, scientific research institutes
5. Rare and precious metal smelting and purification
6. Small pieces of steel hardening, annealing, tempering
Technical data:
Model |
KSS-1700 |
Dimension(L*W*H) |
150*150*150mm Can customize |
Working Temp |
1600°C |
Max Temp |
1700°C Can customize |
Heating Rate |
1 °C/h to 40 °C/min adjustable |
Temperature Accuracy |
+/-1°C |
Temperature Controller |
30 steps programmable and auto control |
Thermocouple |
B Type |
Heating Element |
Silicon molybdenum rods(MoSi2) |
Refractory |
Imported high purity alumina fiber |
Working Voltage AC |
AC 220V/380,50/60 Hz (or according to your requirements) |
Max. Power |
8KW |
The Furnace Materials |
Imported Morgan materials |
Furnace sturcture |
Double shell steel case with air cooling. |

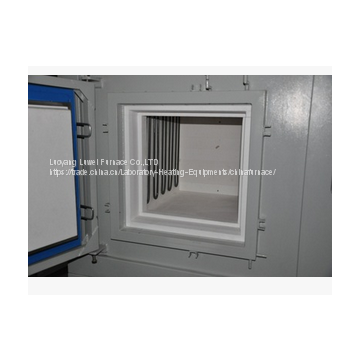

Furnace Chamber Standard Size:
Chamber size/Inner size(Wx Hx D mm)
150x150x150mm (6" x6" x6" )
150x150x200mm (6" x6" x8" )
200x200x200mm (8" x8" x8" )
200x200x300mm (8" x8" x12" )
250x250x300mm (10" x10" x12" )
300x300x400mm (12" x12" x16" )
350x350x400mm (14" x14" x16" )
400x400x400mm (16" x16" x16" )
500x500x500mm (20" x20" x20" )
( Chamber size and brand can also be customized according to customer requirements,and it's free)

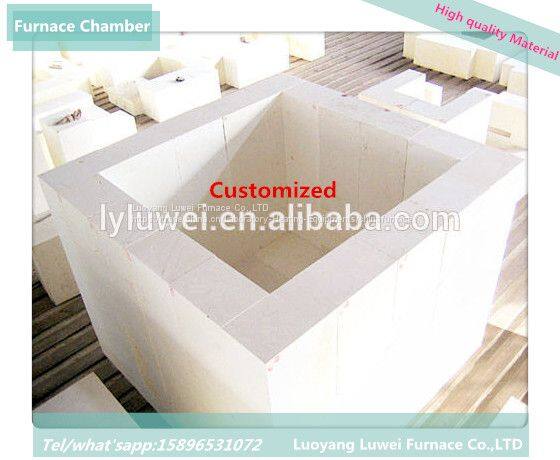

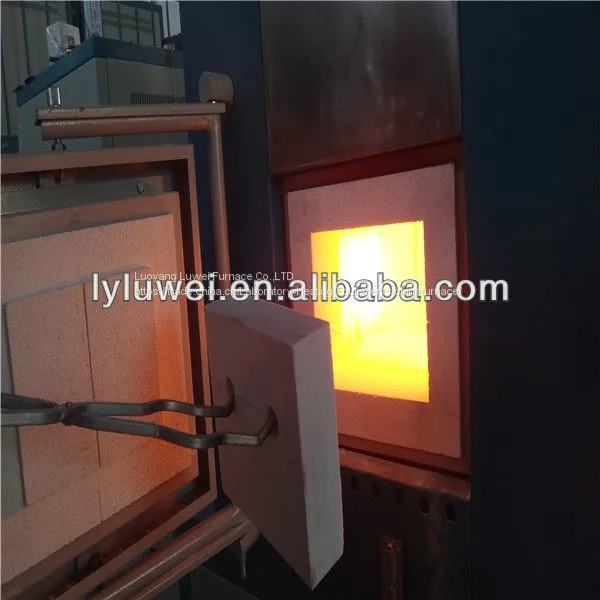

Furnace chamber materials :
FAQ
1). Are you a manufacturer or trade company ?
Yes, we are 100% manufacturer with more than 20 years experiences in production about all kinds of furnaces. All the proc edures will be finished by us, that is good to control the quality and production process.
2). How to get exact price from you ?
Our price is based on furnace working or max temperature and furnace working zone(chamber) sizes(inner Length*Width*Height), structure, chamber material, quantity you need. Each request above is necessary.
3). Do you have stock products to sell ?
Yes, we have furnace in stock like our standard chamber size list above for your reference.If you also have your detail requirements, we also work on OEM order. Each product we do is according to customers. You can have your own design about the furnace chamber size.
4). How to ship the goods ?
A: If you have own forwarder in China, we can just provide you EXW price.
B:If you need us to make shipment for you, we can provide you FOB, CFR, CIF etc.
C: In a word, by sea, by air or by express is up to you. More options, you can suggest.
5). Why are you choose us ?
We have a professional R&D team, and rich production experience of 20 years point service,customer brand, multiple selections, and customers all over the muddle East, Europe and America, Southeast Asia and other regions.
