Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > The Hot Sale and Low Price Heavy Duty Horizontal/universal Lathe CW6263 of China
The Hot Sale and Low Price Heavy Duty Horizontal/universal Lathe CW6263 of China
US$ 6,000 - 20,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supplier Q35Y-30 Hydraulic CNC Iron Worker Machine ,punching MachineUS$ 20,000 - 25,000MOQ: 1 Set -
Bed Compression Coil Spring of Good PriceUS$ 0.5 - 1MOQ: 500 Pieces
-
Hay Rake Wheels of Agriculture Spare PartsUS$ 0.5 - 2.5MOQ: 500 Pieces
-
OEM Factory Torsion Spring Tines Hay Rake Teeth for Agriculture Machine PartsUS$ 0.5 - 1.5MOQ: 500 Pieces
-
John Deere Hay Rake Spring Tines PartsUS$ 0.5 - 1.2MOQ: 500 Pieces
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Automatic
Max. Swing Diameter
630MM
Place of Origin
Jiangsu, China
Brand Name
NANTONG JAKARTA
Model Number
CW6263
Power(W)
11/15KW
Dimension(L*W*H)
3000*1170*1250mm
Weight
4600KG
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas

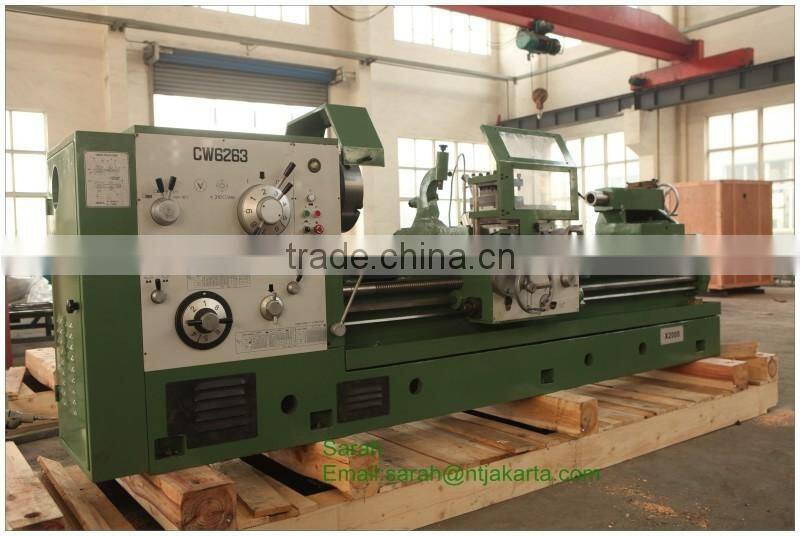

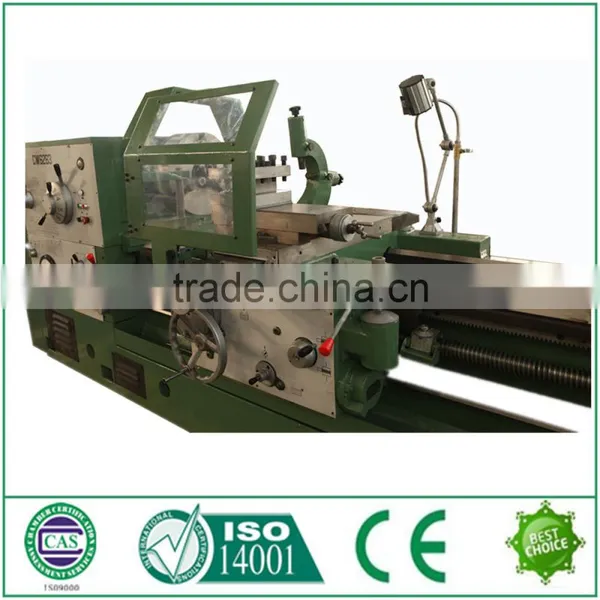

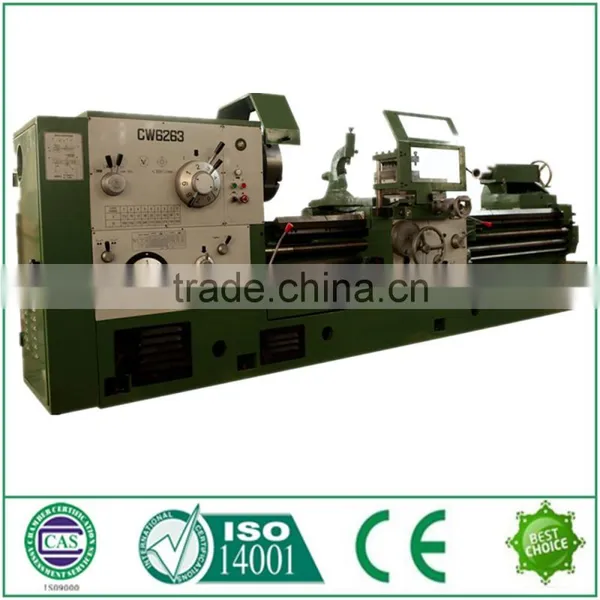

Horizontal/universal lathe CW6263
Technical parameters

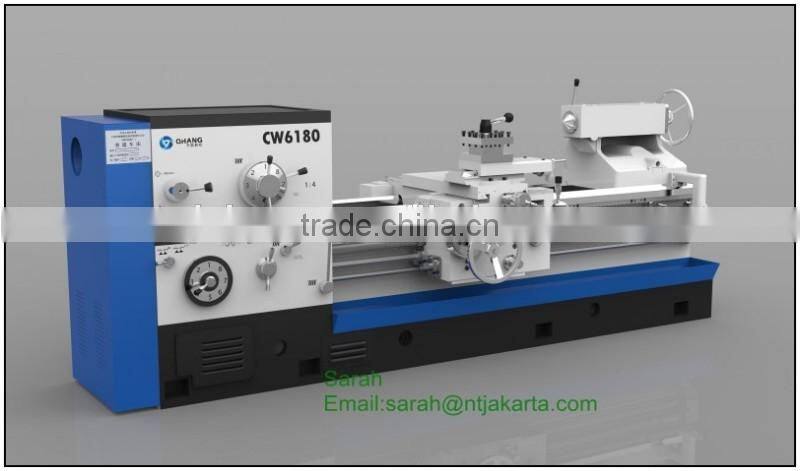

| MODEL | CW6163 | CW6180(A) | CW61100(A) | CW61120(A) |
| CW6263 | CW6280(A) | CW62100(A) | CW62120(A) | |
| CAPACITY | ||||
| Max.swing over bed | 630mm | 800mm | 1000mm | 1200mm |
| Max.swing over gap | 800mm | 1000mm | 1200mm | 1400mm |
| Max.swing over cross slide | 345mm | 480mm | 680mm | 680mm |
| Center distance | 1m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m | |||
| Width of bed | 600mm | |||

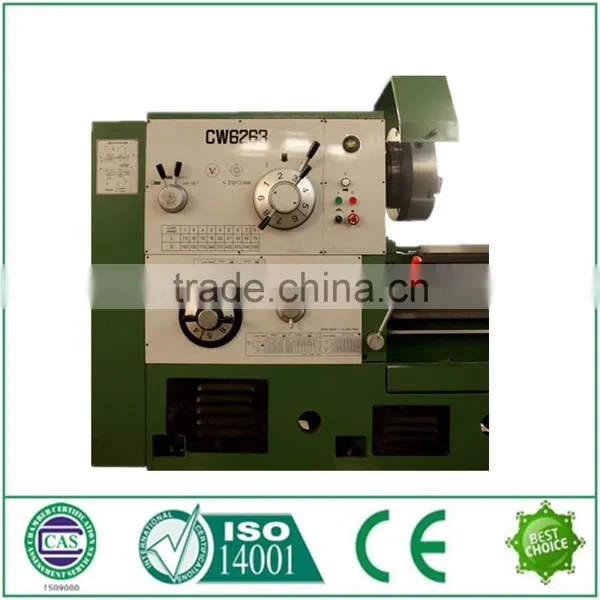

| HEAD STOCK | ||||
| Spindle hole | 105mm (130mm) | |||
| Spindle taper | 120mm 1:16 | |||
| Spindle speeds | 0.75-1000r/min | 7-720r/min | ||
| GEAR Box-threads&feeds | ||||
| Metric threads mm | 1-240mm (52) | |||
| Inch threads TPI | 1-14 (26) | |||
| Moudle threads mm | 0.5-120mm (53) | |||
| Diametral threads DP | 1-28 (24) | |||
| Longitudinal feeds range | 0.1-24.3mm/r | |||
| Cross feed range | 0.05-12.15mm/r | |||
| Rapid feed:long/cross | 4000mm/min,2000mm/min | |||
| TOOL-POST | ||||
| Tool section | 32*32mm | |||

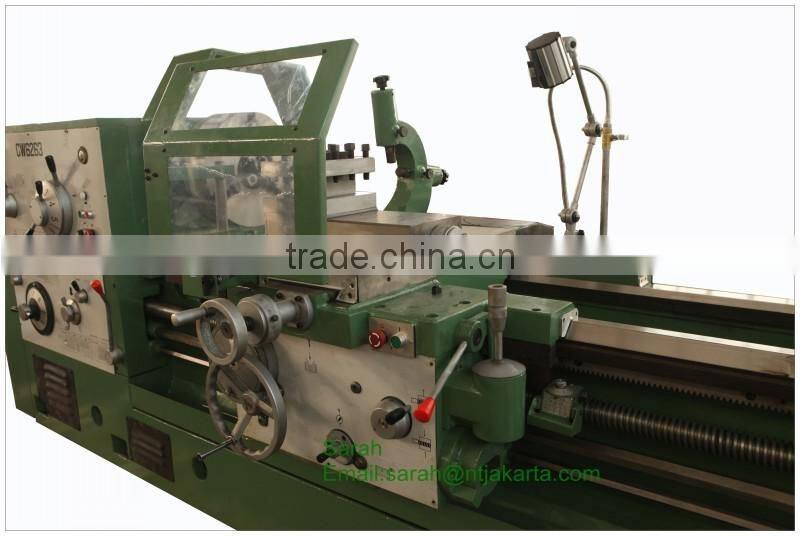

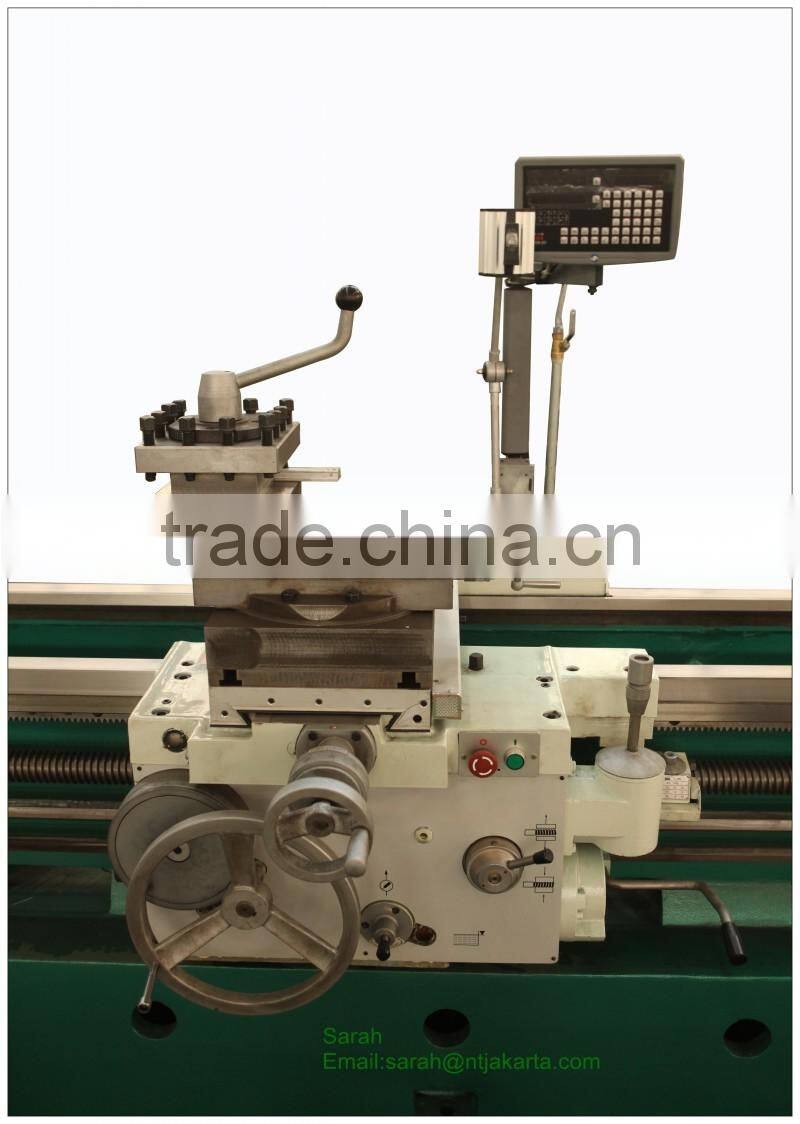

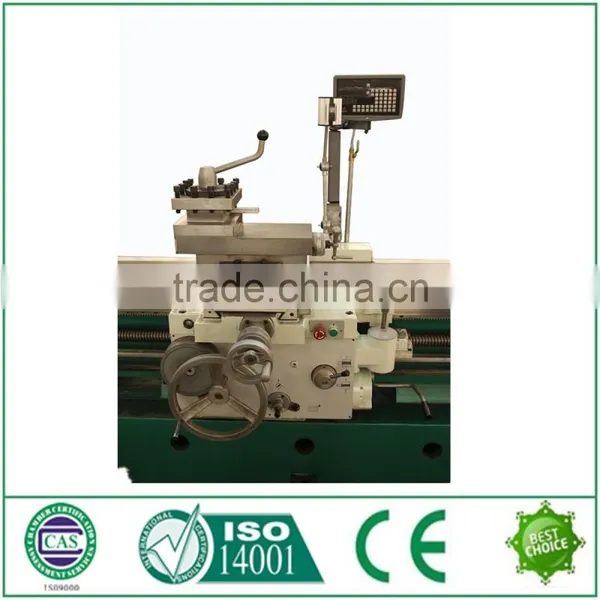

| CARRIAGE | ||||
| Cross slide travel | 370mm | 430mm | ||
| Compound rest travel | 200mm(A Auto feed 170mm) | |||

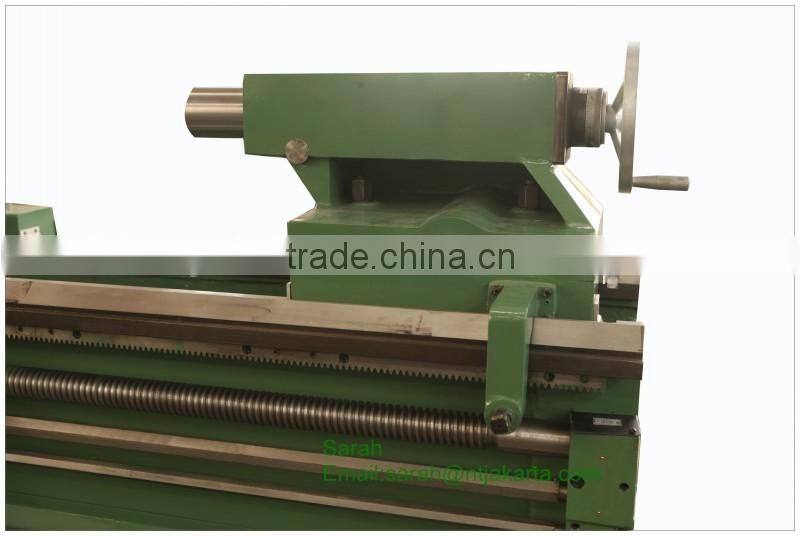

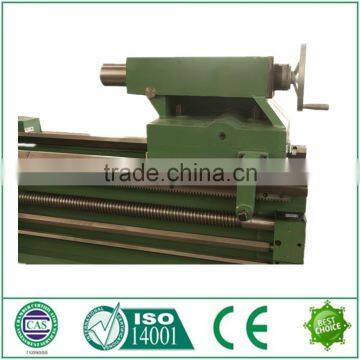

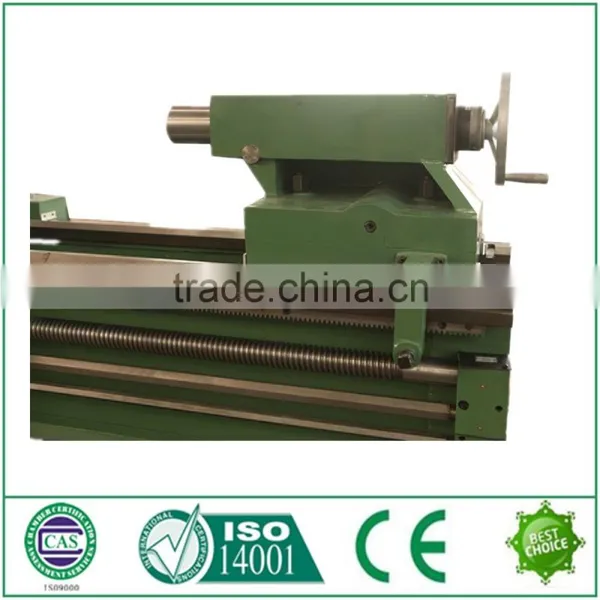

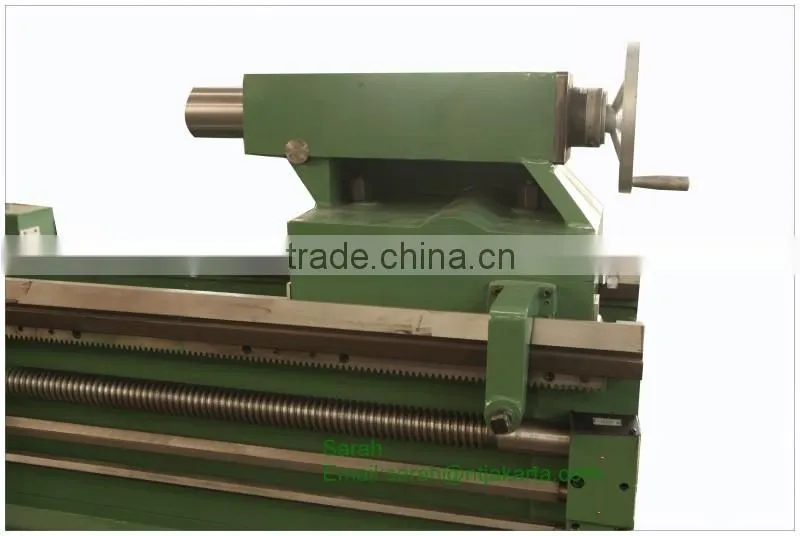

| TAILSTOCK | ||||
| Sleeve diameter | 100mm | 120mm | ||
| Sleeve taper | Morse 6# | |||
| Sleeve travel | 240mm | |||
| STEADY REST | ||||
| Steady rest | 20-200mm | |||
| Follow rest | 20-100mm | |||
| MOTOR | ||||
| Main motor | 11 or 15kw | |||
| Rapid feed motor | 1.1kw | |||
| CW6163.Net weight(kg) | 1000mm | 4600kg | 3000*1710*1250mm | |
| Dimention(L*W*H) | 1500mm | 5000kg | 3500*1170*1250mm | |
| 2000mm | 5200kg | 4000*1170*1250mm | ||
| 3000mm | 5800kg | 5000*1170*1250mm | ||
| 4000mm | 6400kg | 6000*1170*1250mm | ||
| 5000mm | 7000kg | 7000*1170*1250mm | ||
| 6000mm | 7600kg | 8000*1170*1250mm | ||
| 8000mm | 9000kg | 10000*1170*1250mm | ||
| 10000mm | 10400kg | 12000*1170*1250mm | ||
| 12000mm | 11700kg | 14000*1170*1250mm | ||

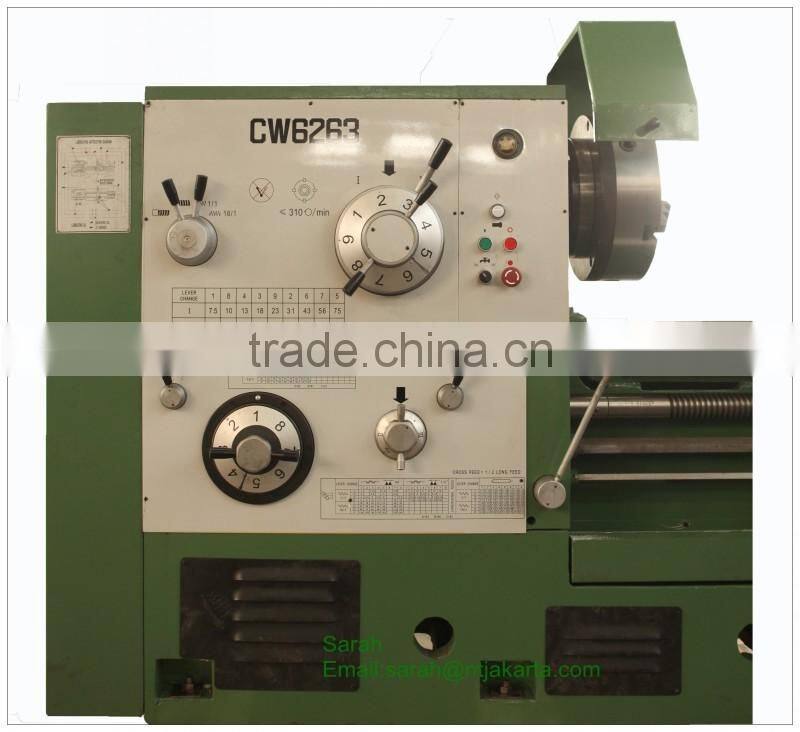

More details of Universal lathe CW6263
Our company
Why choose us?
1.Your inquiry will be replied in 24 hours.
2.Our factory is more industry technology experience for 20 years .
3.To offer free spare parts and service within one year of warranty.
4.Technology Support Provide operation video for training.
5.Professional after-sales service team.
6.Give reasonable offers with the best quality.
