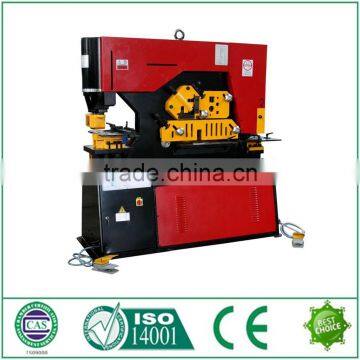

Help CenterChina Supplier Q35Y-30 Hydraulic CNC Iron Worker Machine ,punching Machine
Related Products
-
Bed Compression Coil Spring of Good PriceUS$ 0.5 - 1MOQ: 500 Pieces -
Hay Rake Wheels of Agriculture Spare PartsUS$ 0.5 - 2.5MOQ: 500 Pieces
-
OEM Factory Torsion Spring Tines Hay Rake Teeth for Agriculture Machine PartsUS$ 0.5 - 1.5MOQ: 500 Pieces
-
John Deere Hay Rake Spring Tines PartsUS$ 0.5 - 1.2MOQ: 500 Pieces
-
High Frequency Transformer EE Soft Ferrite CoreUS$ 0.09 - 10MOQ: 100 Pairs
Description hydraulic CNC cutting machine and iron worker machine

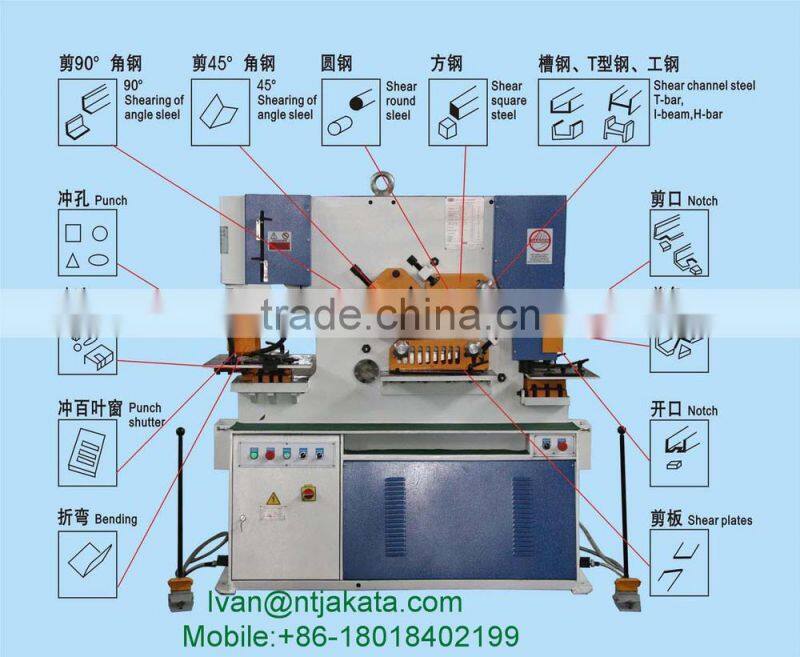

1.Cut and pinch all kinds of materials such as plate, square bar, angle, round bar, channel etc.
2.Bend the plate below 500mm
3.All the components are of the highest quality in their safety, function, capability and maintenance
4.CE&ISO certification
Technical parameters hydraulic CNC cutting machine and iron worker machine
TYPE |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Working Pressure(KN) |
550 |
750 |
1100 |
1400 |
Max. cutting thickness(mm) |
16 |
20 |
25 |
30 |
|
Tensile strength of Sheet metal (N/mm2) |
≤450 |
≤450 |
≤450 |
≤450 |
Shear angle |
7° |
8° |
8° |
8° |
Max scale size of plate cutting (thickness*width) mm |
16×250 8×400 |
20×330 10×480 |
25×330 16×600 |
30×330 20×600 |
Stroke of ram(mm) |
80 |
80 |
80 |
80 |
Travel times (/min) |
6 |
8 |
6 |
8 |
Depth of throat(mm) |
300 |
355 |
400 |
600 |
Thickness of punching (mm) |
16 |
20 |
25 |
30 |
Max diameter of punching hole(mm) |
25 |
30 |
35 |
38 |
Main motor power(Kw) |
4 |
5.5 |
7.5 |
11 |
Dimension(mm) |
1720×790 ×1880 |
1920×790 ×1990 |
2280×960 ×2200 |
2680×1040 ×2300 |
Weight(Kg) |
1710 |
2200 |
3800 |
6200 |
Steel type |
Round steel |
square steel |
Equal Angle Steel |
I-beam |
Channel steel |
|
90°shearing |
45°shearing |
|||||
Q35Y-16 |
45 |
40×40 |
120×120×12 |
70×70×8 |
126×74×5 |
126×53×5.5 |
Q35Y-20 |
50 |
45×45 |
140×140×12 |
70×70×10 |
160×86×6 |
160×60×6.5 |
Q35Y-25 |
60 |
50×50 |
160×160×14 |
80×80×7 |
200×102×9 |
200×75×9 |
Q35Y-30 |
65 |
55×55 |
180×180×16 |
80×80×10 |
280×124×10.5 |
280×86×11.5 |

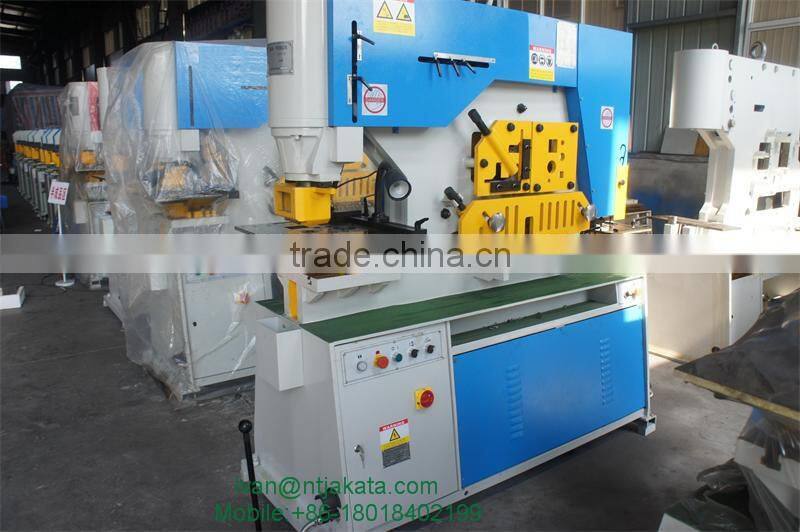

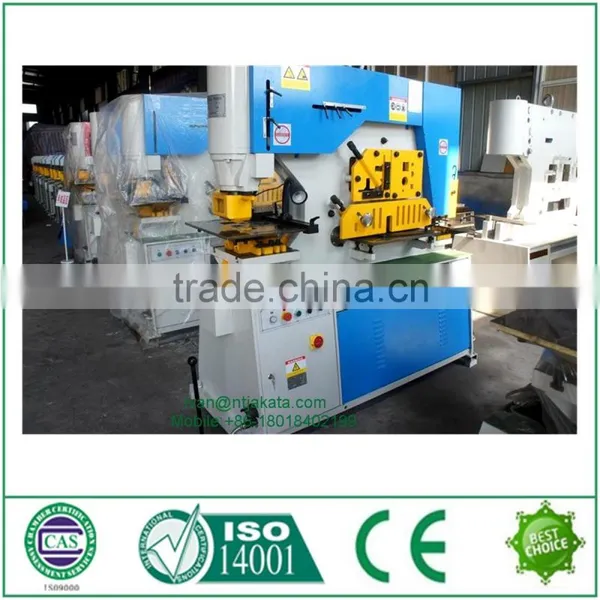

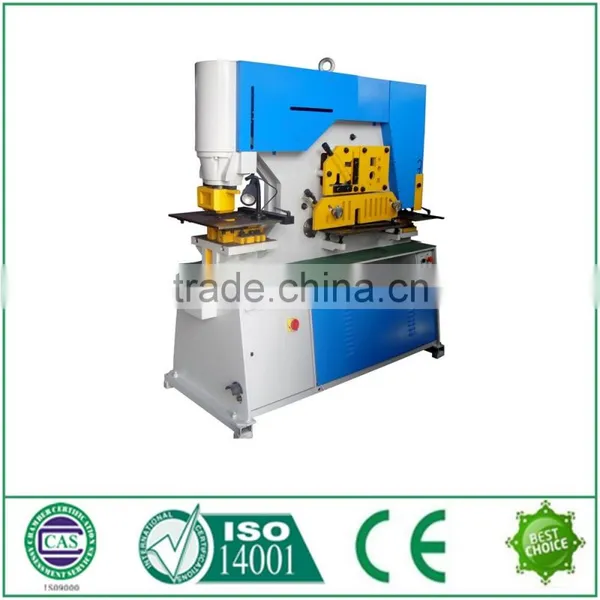

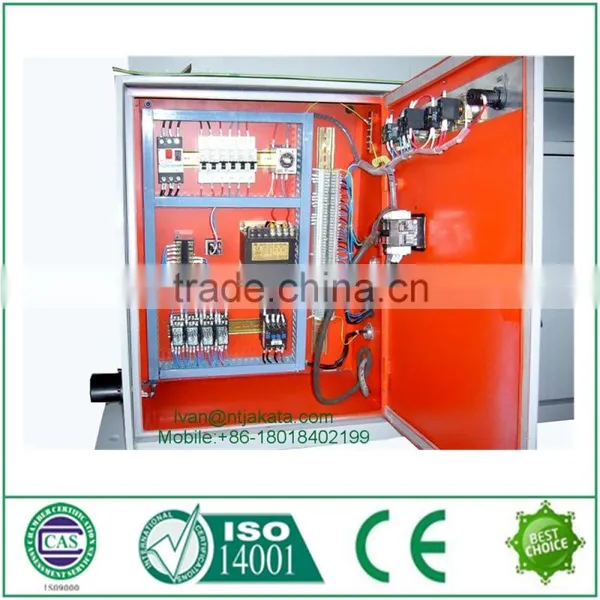

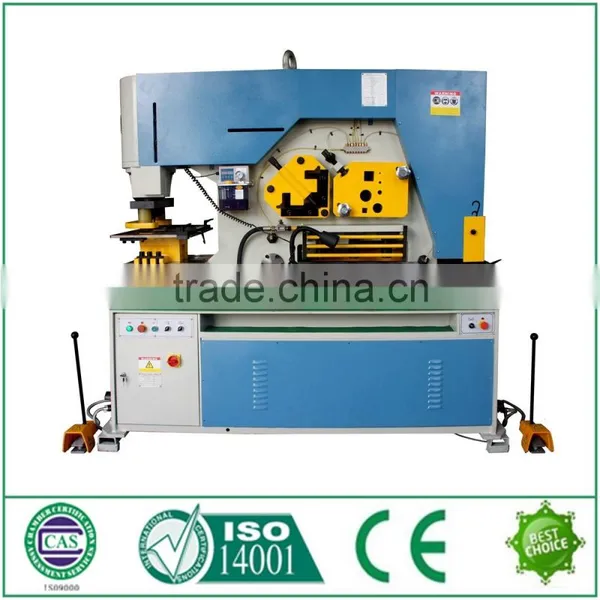

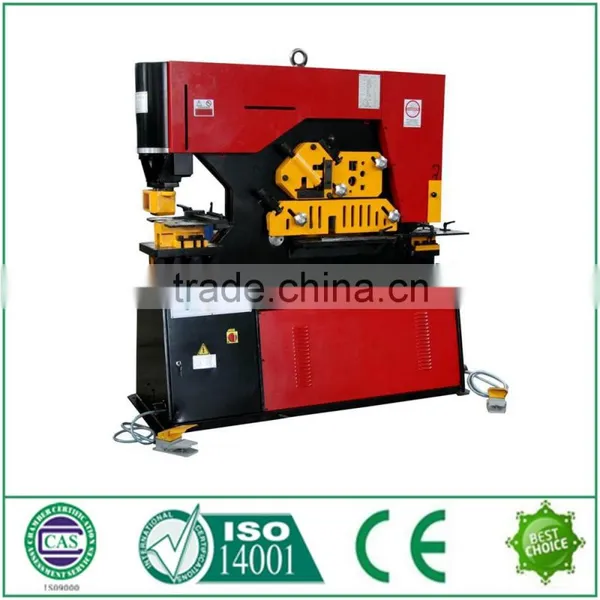

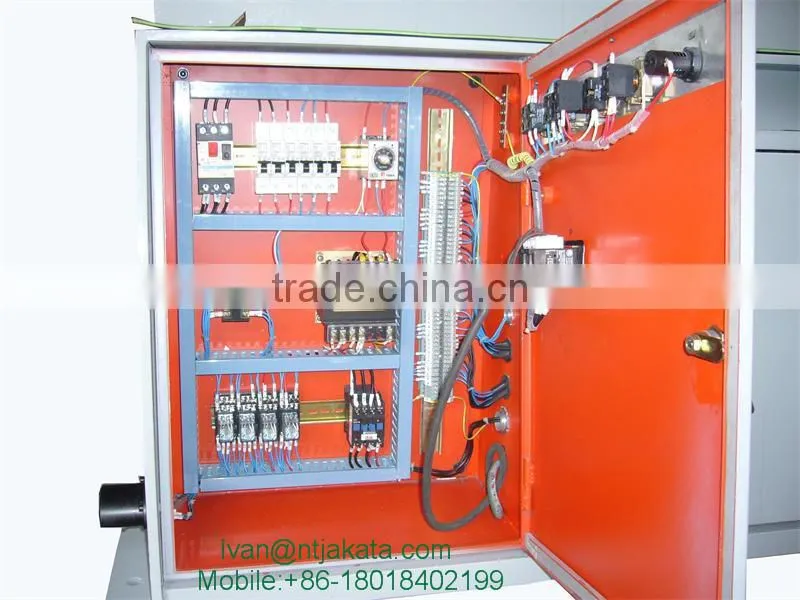

Products details hydraulic CNC cutting machine and iron worker machine
