DESCRIPTION
Performance features:
1.Use WC67K series bending machine;
2.Equipped with special CNC bending machine produced by DELEM company; Backgauge (X), slider stroke (Y) automatic control
by computer; Backgauge with ordinary wire rod and precision ball screw rod two.

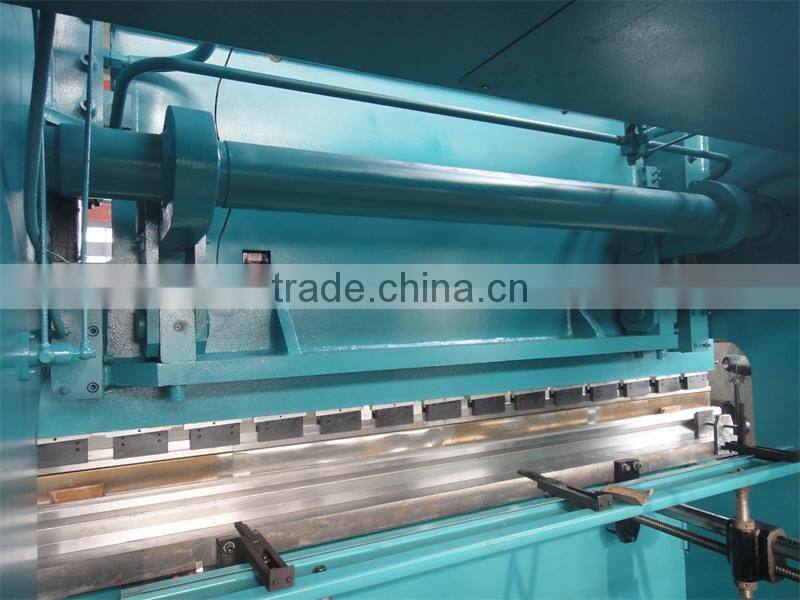

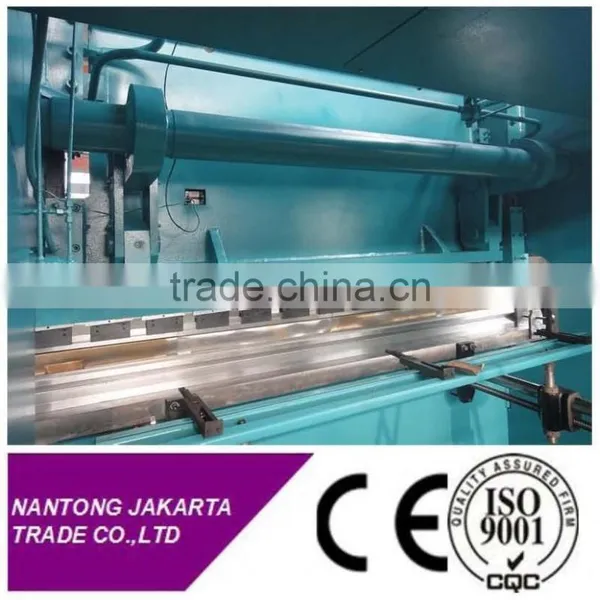

Hydraulic crowning mechanism
using hydraulic or mechianical deflectiong compensation ,can be obtained in table length accuracy uniformity.Cylinder hydraulic deflection compensation by a group of mounted within the lower stage composition,can make the worktable relative movement, form the ideal curve convex,
and guarantee a constant relative position relationship between stress and sliding block.
The amoiunt of compensation
CNC E21 SYSTEM
Back gauge positioning control;Intelligent positioning function;Unidirectional and bidirectional positioning function;Yielding escape
materials function;Automatic search reference point;One key backup and recovery function parameters; Fast position teaching
function;More than 40 step program memory space, each procedure has 25 steps; Power-off protection function;
CNC DA41 SYSTEM
High resolution LCD display;Slide the stop position control;Back gauge control;View programming; The die parameter setting;Feed
control function;100 procedures;Every procedure has 25 steps;Panel mounting;Servo control, frequency control and double speed
AC communication control.
TECHNICAL PARAMETERS CNC sheet metal bending machine with stable sructure,formingmachine
Specification | Nominal Pressure (KN) | Length of working table (mm) | The Depth of throat (mm) | Ram Stroke (mm) | Open Height (mm) | Motor Power (kw) |
WC67K-63/2500 | 630 | 2500 | 250 | 100 | 360 | 5.5 |
WC67K-63/3200 | 630 | 3200 | 250 | 100 | 360 | 7.5 |
WC67K-80/3200 | 800 | 3200 | 320 | 120 | 370 | 7.5 |
WC67K-100/3200 | 1000 | 3200 | 320 | 120 | 370 | 7.5 |
WC67K-100/4000 | 1000 | 4000 | 320 | 120 | 370 | 7.5 |
WC67K-160/3200 | 1600 | 3200 | 320 | 200 | 470 | 11 |
WC67K-160/4000 | 1600 | 4000 | 200 | 200 | 470 | 11 |
WC67K-160/5000 | 1600 | 5000 | 200 | 200 | 470 | 11 |
WC67K-160/6000 | 1600 | 6000 | 200 | 210 | 520 | 11 |
WC67K-200/3200 | 2000 | 3200 | 250 | 200 | 520 | 15 |
WC67K-200/4000 | 2000 | 4000 | 250 | 200 | 520 | 15 |
WC67K-200/6000 | 2000 | 6000 | 250 | 200 | 520 | 15 |
WC67K-250/3200 | 2500 | 3200 | 250 | 250 | 560 | 18.5 |
WC67K-250/4000 | 2500 | 4000 | 250 | 250 | 560 | 18.5 |
WC67K-320/4200 | 3200 | 4200 | 400 | 250 | 560 | 2*15 |
WC67K-500T/8000 | 5000 | 8000 | 6200 | 600 | 400 | 45 |

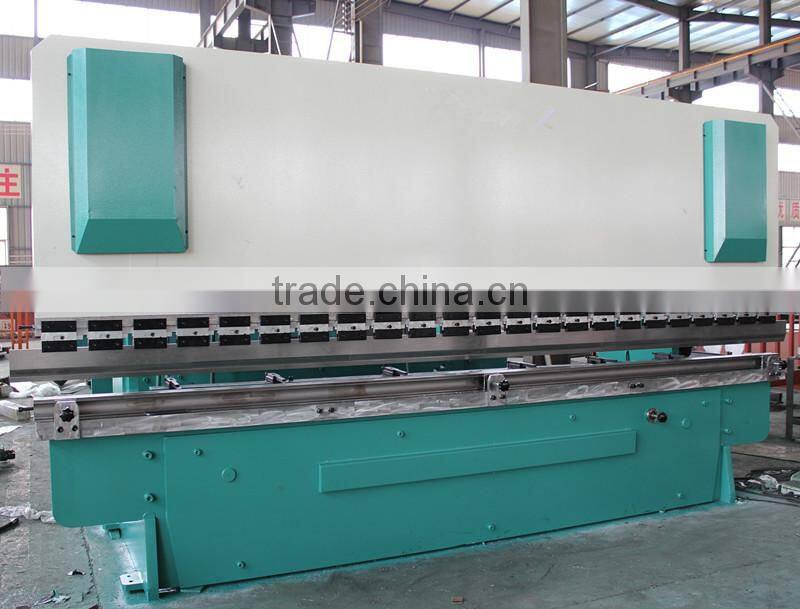

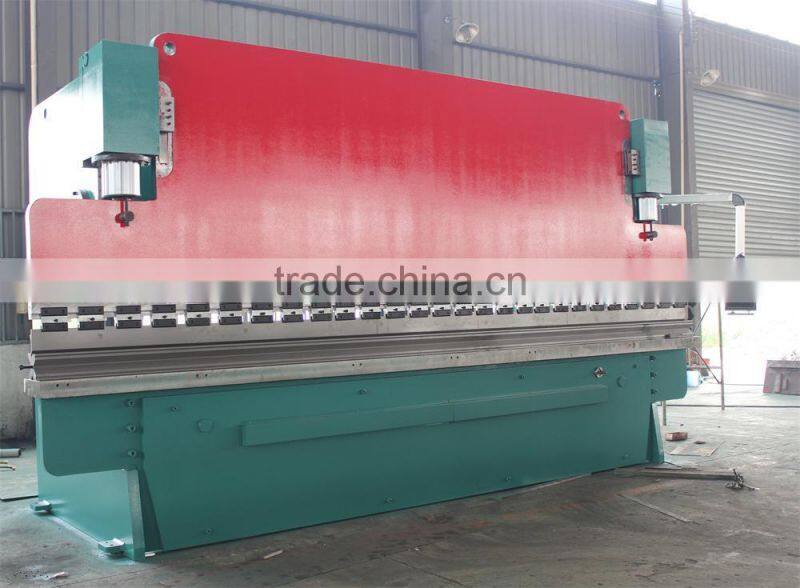

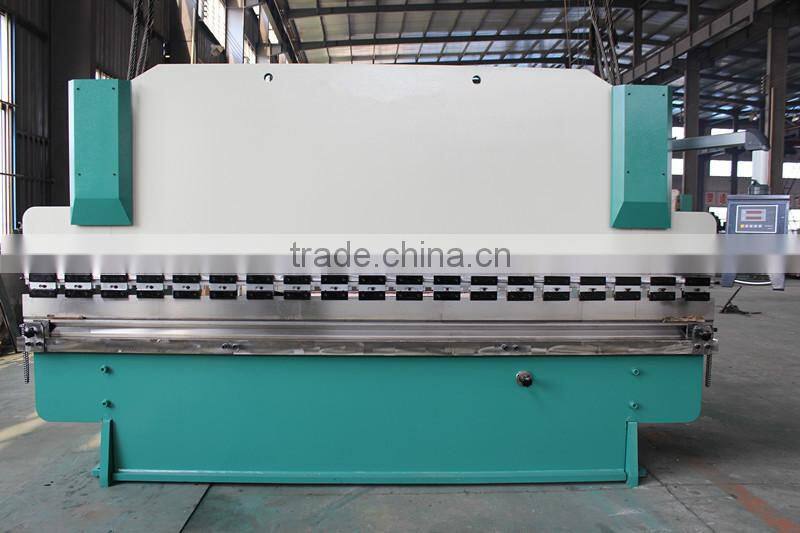

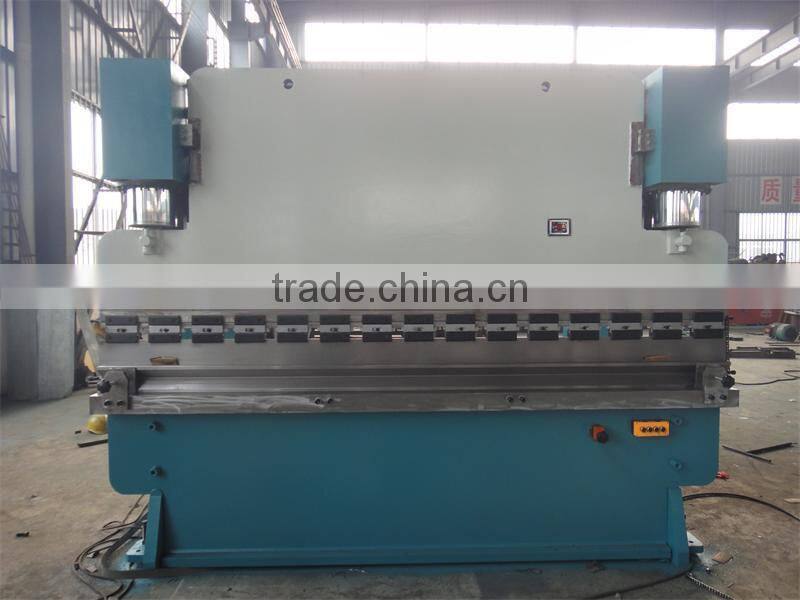

MORE DETAILS CNC sheet metal bending machine with stable sructure,forming machine
OUR AFTER-SERVICE TEAM IN SOUTH EAST ASIA

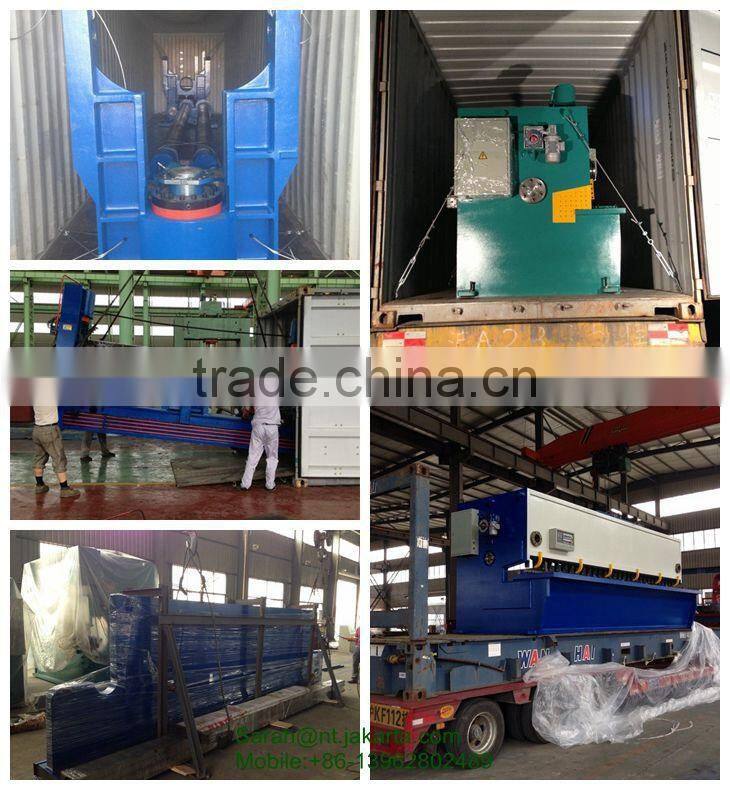

PACKAGING CNC sheet metal bending machine with stable sructure,forming machine
SHIPPING
PAYMENT TERMS
CONTACT US
Our service
1.Standardization of Service “212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all JKDmachines. We dispatch technician to customer's
factory for installation and preoperation of machines. ( Customers only need to pay the airfare
and hotel )
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well,
you may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same
as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's
materials for test. After making sure machine is the best performance, then make shipments.
FAQ
How to get an accurate quotation from us ?
1.Tell us metal thickness.
2.Tell us metal width.
How to repair&maintain our machine ?
Generally,the hydraulic machine is not easy to break.even though the problem occur,
it is small problem.we can solve it through email and video.
What policy for broken parts?
Within one year,we offer free parts. If beyond one year,you need to buy by factory cost.
