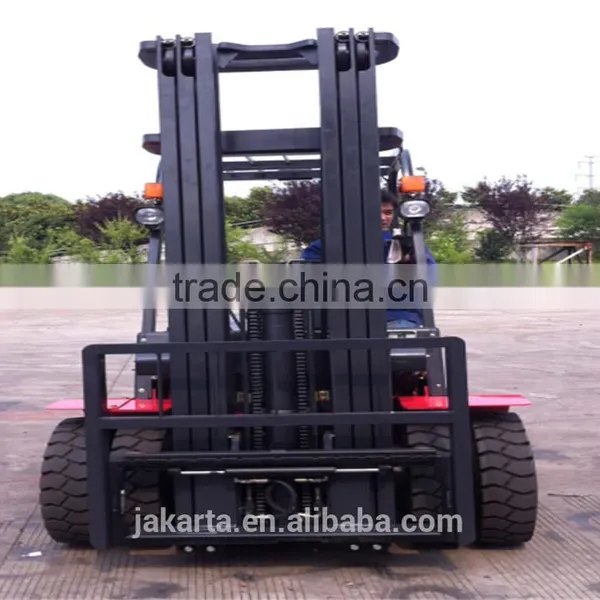

6.0 TON forklift from YJD for Export
Our forklift aims to become the world’s loading master. The R&D departments from China & Taiwan seriously study various feedbacks from market and improve the
structure & function constantly year by year. Finally we develop a complete series of reliable products for customers
all over the world.
Technical parameters
| 1 | Model | FD60 | ||||
| 2 | Capacity | kg | 6000 | |||
| 3 | Load center | mm | 600 | |||
| 4 | Power type | Diesel | ||||
| 5 | Control type | Sit | ||||
| 6 | Tires P=pneumatic | P | ||||
| 7 | Lift height | I | mm | 3000 | ||
| 8 | Fork size | LxWxT | mm | 1220*150*60 | ||
| 9 | Mast tilting angle (F/R) | α-β | Deg | 6°/-12° | ||
| 10 | Rear load distance | Q | mm | 695 | ||
| 11 | Forks distance | B | mm | 1700 | ||
| 12 | Total width | A | mm | 2010 | ||
| 13 | Mast height | J | mm | 2500 | ||
| 14 | Overhead guard height | V | mm | 2450 | ||
| 15 | Min. turning radius | G | mm | 3420 | ||
| 16 | Max. height | H | mm | 4390 | ||
| 17 | Front load distance | O | mm | 590 | ||
| 18 | Fork bracket height | L | mm | 1430 | ||
| 19 | Total length | R | mm | 4855 | ||
| 20 | Ground clearance (mast) | m1 | mm | 200 | ||
| 21 | Speed | Travel speed with/without load | km/h | 26/30 | ||
| 22 | Lift speed with/without load | mm/s | 500/550 | |||
| 23 | Lowering speed with/without/load | mm/s | without load≥300 full load≤600 |
|||
| 24 | Max.traction power (with load) | KN | 54 | |||
| 25 | Max. gradeability | % (tan θ) | 35/20 | |||
| 26 | Service weight | kg | 8800 | |||
| 27 | Tyres | Number (front/rear) | 4x/2 | |||
| 28 | Front | 8.25-15-14P.R | ||||
| 29 | Rear | 8.25-15-14P.R | ||||
| 30 | Wheelbase | P | mm | 2250 | ||
| 31 | Tread | F/R | C/F | mm/mm | 1475/1700 | |
| 32 | Brake | Brake model | Hand/Pedal | |||
| 33 | Battery | Voltage/Capacity | V/AH | 24/80 | ||
| 34 | Engine | Model | Perkins1106d | ISUZU 6BG1 | ||
| 35 | Rated power | kw/rpm | 117/2200 | 82/2000 | ||
| 36 | Rated torque | N.m/rpm | 683/1400 | 415/1400-1600 | ||
| 37 | Displacement | L | 6.6 | 6.5 | ||
| 38 | Transmission | Type | Hydraulic | |||
| Speed rank of transmission rear/front | 2/2 | |||||
More details
Packaging and shipping
Find more forklifts suited for you
Contact information
Since we have hundreds of product in different serier ,please tell me which series/product you interested in , we will quote according to your selection .
So please contact me, or add my skype ID is: live:haveon
Q: Why should i choose you?
A: Firstly, we can offer you competitive price and as a fact we have dealed with numbers of client friends. furthermore, our company has equiped with a group of diligent, honest and enterprising staff. So we can make sure that we can make quick response to your questions all the time. Actually, most problems can be solved within 6 hrs. lastly, we guarantee that the forklift can be delivered within 25days after advance payment.
Q: Which payment terms can we accept?
A: Normally we can work on L/C , T/T, Western Union and MoneyGram
Q: How long will our price be valid?
A: We are a tender and friendly supplier, never greedy want the profit. Basically, our price remains stable within 12months. And we only adjust our price on the two issues, i.e. the rate of USD to RMB and the vary of product price of the forklift. Thank you.
