1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery

Nantong Jakarta Trade Co., Ltd.
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery thumbnail-1
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery thumbnail-2
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery thumbnail-3
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery thumbnail-4
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery thumbnail-5
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery thumbnail-6
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery photo-1
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery photo-2
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery photo-3
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery photo-4
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery photo-5
1.0-3.5 Ton Electric Semi-ac Forklift Trucks Price With Battery photo-6
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
NanTong Jakarta
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name NanTong Jakarta
Model Number CPD10-35J
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1000-3500kg
Max. Lifting Height 6000mm
Min. Lifting Height 2000mm
Fork Length 920mm
Fork Width 100mm
Overall Dimensions 2975*1070mm
Certification ISO9001,CE
After-sales Service Provided Engineers available to service machinery overseas



Introduction



       The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc.



      Our main markets are Southeast Asia, Mid East and Africa. 2. We have obtained the ISO 9001:2008, ISO 14001:2004 and ISO 18001:2007 management system certification and CE certification. 3.OEM and ODM service are provided.







Export Market Distribution







Market

Revenue(Previous Year)

Total Revenue (%)

South America

confidential



0.23

Eastern Europe

0.96

Southeast Asia

1.51

Africa

1.19

Oceania

0.27

Mid East

1.83

Eastern Asia

0.03

Southern Europe

0.06

South Asia

0.3

Domestic Market

93.62











Forklift Specification



Model-CPD10JCPD15JCPD20JCPD25JCPD30JCPD35J
Lifting capacitykg100015002000250030003500
Load centermm500500500500500500
Lifting height (max)mm300030003000300030003000
Maximum height at workmm397539754035403542604260
Mast tilt angle (F/B)°6°/12°6°/12°6°/12°6°/12°6°/12°6°/12°
Hold under mast (min)mm9999110110125125
Free lift heightmm135135140140140140
Turning radius(min)mm193019302260226023802450
Lifting speed (max) (Loaded/Unloaded)mm/s235/320230/320272/380260/380280/400280/400
Travelling speed (max) (Loaded/Unloaded) Km/h12.5/13.512/1312.5/1412.5/1412.5/1412.5/14
Tractive force (Loaded)KN557.5799
Lowering speedmm/s≤600≤600≤600≤600≤600≤600
Max gradeability (Loaded)%151510101010
Complete size (L × W)mm2975×10702975×10703470×11703470×11703643×12503726×1250
Fork size (L x W x T)mm920×100×30920×100×351070×120×401070×120×421070×122×451070×122×45
Closed mast heightmm199519952055205521602160
Overhead guard heightmm210021002150215021902210
Wheelbasemm125012501500150016001720
Wheel tread (F/R)mm900/930900/930980/954980/9541000/9701000/970
Work pressureMPa141417.517.517.517.5
Distance from chair to overhead guardmm102010201010101010601060
Battery voltageV484848488080
Battery capacityAh400450560620500560
Subsidiary motor powerKw7.57.58.6101213.5
Travel motor powerKw6.8(7.5)6.8/7.59.19.11111
Front tire model-6.50-10-12PR6.50-10-12PR7.00-12-12PR7.00-12-12PR28×9-15-12PR28×9-15 Solid tire
Back tire model-5.00-8-8PR5.00-8-8PR18×7-8-14PR18×7-8-14PR18×7-8-14PR18×7-8-14PR
Tire air pressureMPa0.70.7Front:0.7 Rear:0.9Front:0.7 Rear:0.9Front:0.7 Rear:0.9Rear:0.9
Total weight(including battery)kg274029403980425048005300

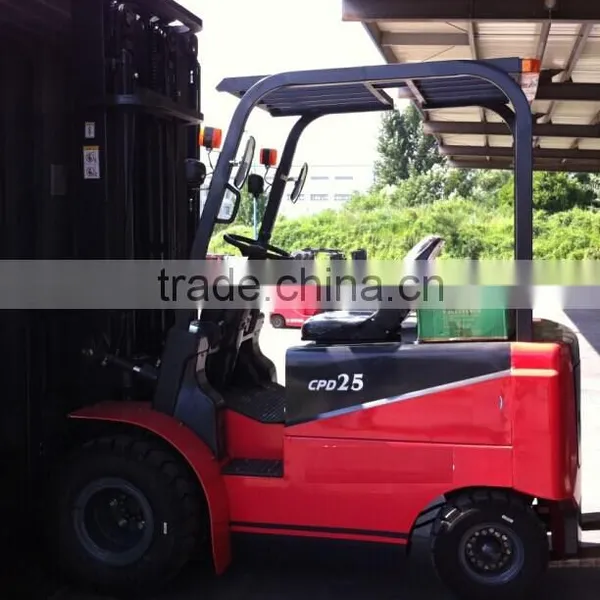

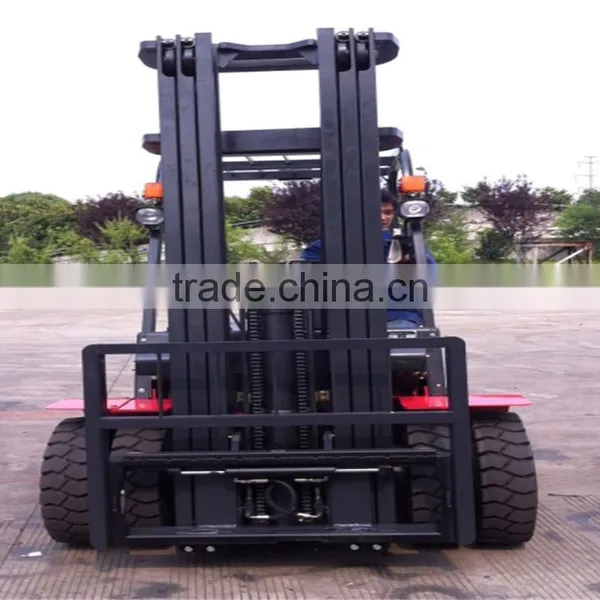

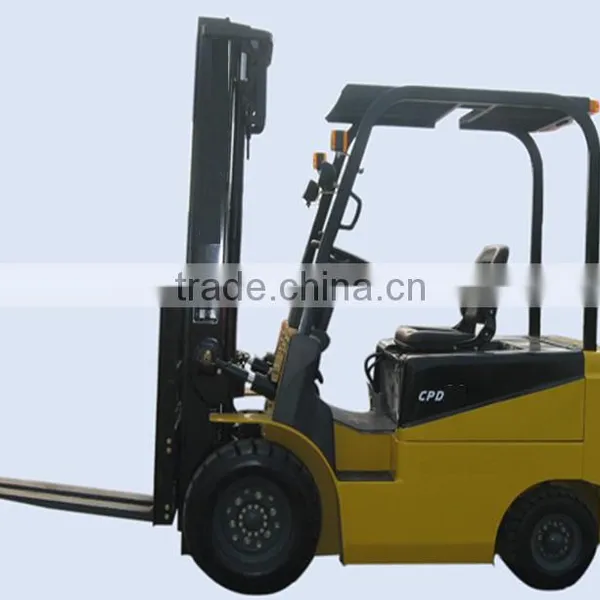

  Product Picture

1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery



 1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery



Photo Details

1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery

1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery





Certificate

1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery



Forklift Attachments Conents







Delivery photos

1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery

1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery

Factory Photos



1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery1.0-3.5 Ton Electric semi-ac Forklift Trucks Price With Battery
