Home > Products > Engineering machinery > 1 ton electric forklift, electric forklift 1000kg

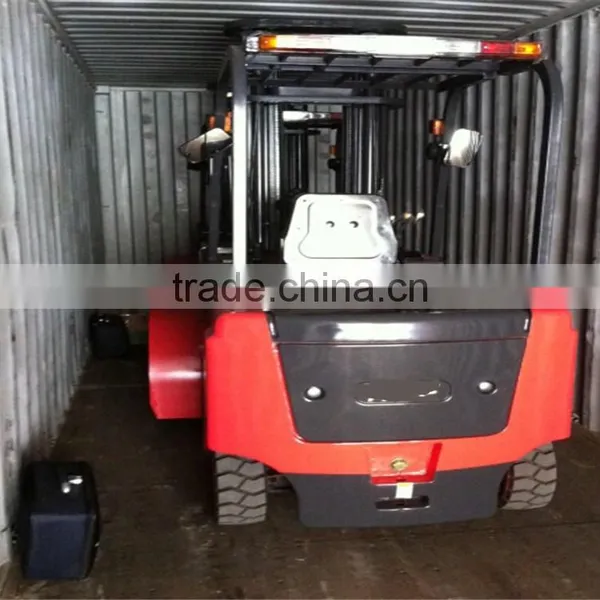

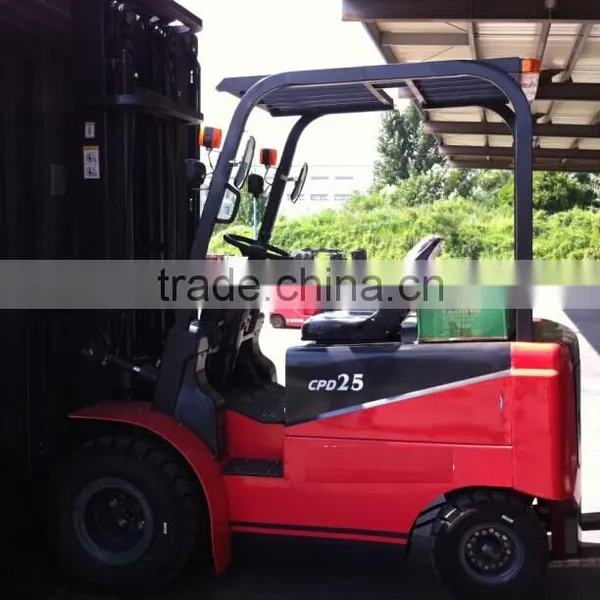

1 ton electric forklift, electric forklift 1000kg
- 10000 Set / Sets per Month
- ShangHai
- T/T L/C Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | NanTong Jakarta |
Model Number: | CPD10 | Type: | Powered Pallet Truck | Power Souce: | DC Motor |
Rated Loading Capacity: | 1000kg | Max. Lifting Height: | 60000mm | Min. Lifting Height: | 2000mm |
Fork Length: | 920mm | Fork Width: | 100mm | Overall Dimensions: | 2975*1070mm |
Certification: | ISO9001,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QUALITY AND SERVICE ARE OUR LIFE
Contact information
Contact Person:Ivan Ji
Skype:jizufeng
Tel: 0086-513-68878985
Mobile:0086-18018402199
GOODS DESCRIPTION
We are devoted to the research, development and manufacture of hi-tech forklifts and aim to improve self-innovation capacity and the development of national forklift industry. We look forward to cooperating with you based on mutual development. Contact us for more details.
Model | - | CPD15 |
Lifting capacity | kg | 1500 |
Load center | mm | 500 |
Lifting height (max) | mm | 3000 |
Maximum height at work | mm | 3975 |
Mast tilt angle (F/B) | ° | 6°/12° |
Hold under mast (min) | mm | 99 |
Free lift height | mm | 135 |
Turning radius(min) | mm | 1930 |
Lifting speed (max) (Loaded/Unloaded) | mm/s | 230/320 |
Travelling speed (max) (Loaded/Unloaded) | Km/h | 12/13 |
Tractive force (Loaded) | KN | 5 |
Lowering speed | mm/s | ≤600 |
Max gradeability (Loaded) | % | 15 |
Complete size (L × W) | mm | 2975×1070 |
Fork size (L x W x T) | mm | 920×100×35 |
Closed mast height | mm | 1995 |
Overhead guard height | mm | 2100 |
Wheelbase | mm | 1250 |
Wheel tread (F/R) | mm | 900/930 |
Work pressure | MPa | 14 |
Distance from chair to overhead guard | mm | 1020 |
Battery voltage | V | 48 |
Battery capacity | Ah | 450 |
Subsidiary motor power | Kw | 7.5 |
Travel motor power | Kw | 5 |
Front tire model | - | 6.50-10-12PR |
Back tire model | - | 5.00-8-8PR |
Tire air pressure | MPa | 0.7 |
Total weight(including battery) | kg | 2940 |
AFTER SERVICE TEAM IN SOUTH EAST ASIA
Payment Terms
30% deposit by T/T in advance, and the balance 70% by T/T 15days before departures the factory
or 100% irrevocable L/C at sight.
Our service
1.Standardization of Service “212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all JKDmachines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only
need to pay the airfare and hotel )
3.Training Service
Our technician is available to your factory and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance
is the same as the data of samples making). We sign the agreement with detailed
technical data.
We arrange final test before shipment. We run the machine for a few days, and then
use customer's materials for test. After making sure machine is the best performance,
then make shipments.
Contact Us
- Nantong Jakarta Trade Co., Ltd.
- Contact nameTim Zhou
- Phone86-513-81853300
- AddressChengbei Industrial Center, Haian Town Nantong,Jiangsu
