1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg

1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg thumbnail-1
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg thumbnail-2
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg thumbnail-3
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg thumbnail-4
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg thumbnail-5
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg thumbnail-6
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg photo-1
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg photo-2
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg photo-3
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg photo-4
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg photo-5
1.5 Ton Electric Semi-ac Forklift,electric Semi-ac Forklift 1500kg photo-6
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
NanTong Jakarta
Contact Supplier Request Quote Chat Now
Nantong Jakarta Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name NanTong Jakarta
Model Number CPD15J
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1500kg
Max. Lifting Height 6000mm
Min. Lifting Height 2000mm
Fork Length 920mm
Fork Width 100mm
Overall Dimensions 2975*1070mm
Certification ISO9001,CE
After-sales Service Provided Engineers available to service machinery overseas

       1.5 ton electric semi-ac forklift,electric semi-ac forklift 1500kg 1.5 ton electric semi-ac forklift,electric semi-ac forklift 1500kg 1.5 ton electric semi-ac forklift,electric 1.5 ton electric semi-ac forklift,electric semi-ac forklift 1500kg 1.5 ton el

Introduction



       The company now owns more than 100 models of self-owned forklift products in 72 types. Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc. We have the forklift series as below:

Diesel counterbalance forklift 1.8t-3.5t: CP(C)D18, CP(C)D20, CP(C)D25, CP(C)D30, CP(C)D35

Diesel counterbalance forklift 4.0t-10.0t: CPCD40, CPCD45, CPCD50L, CPCD50, CPCD60, CPCD70,CPCD80,CPCD100Diesel counterbalance forklift 3.3t-4.0t (specialized for timber): CP(C)D33, CP(C)D37, CP(C)D39,CP(C)D40L,CP(C)D40L

Diesel counterbalance forklift 4.0t-12.0t (specialized for stone): CPC40, CPC45, CPC50L, CPCD70,CPCD78,CPCD80, CPCD90, CPCD120;

Gasoline counterbalance forklift 2.0t-3.5t: CPQ(D)20, CPQ(D)25, CPQ(D)30, CPQ(D)35

LPG counterbalance forklift 2.0t-3.5t: CPQY(D)20, CPQY(D)25, CPQY(D)30, CPQY(D)35

LNG counterbalance forklift 2.0t-3.5t: CPT(D)20, CPT(D)25, CPT(D)30, CPT(D)35

DC electric counterbalance forklift 1.0t - 3.5t: CPD10, CPD15, CPD20, CPD25, CPD30, CPD35

Semi-AC electric counterbalance forklift 1.0t - 3.5t: CPD10J, CPD15J, CPD20J, CPD25J, CPD30J, CPD35J

Full-AC electric counterbalance forklift 1.0t - 3.5t: CPD10AC, CPD15AC, CPD20AC, CPD25AC, CPD30AC, CPD35AC; Electric counterbalance forklift (triple-pivot): CPD16S, CPD18S, CPD20S, CPD05

Electric reach forklift: CQD12, CQD16, CQD20, CQD25Tractor series: QYCD20, QYCD25, QSD20, QSD30, QSD20AC, QSD30AC

Electric stacker series: CDDZ12, CDDZ16, CDDZ20, CDDZ25, CTDZ12, CTDZ16, CTDZ20, CTDZ25

Van series: CBY-DF20, CBY-DF25, CBY-DF30, CBY-AC20, CBY-AC25, CBY-AC30, CBD15, CBD25, CBD30, CBD40,Etc.







  Forklift Specification

Model - CPD15J
Lifting capacity kg 1500
Load center mm 500
Lifting height (max) mm 3000
Maximum height at work mm 3975
Mast tilt angle (F/B) ° 6°/12°
Hold under mast (min) mm 99
Free lift height mm 135
Turning radius(min) mm 1930
Lifting speed (max) (Loaded/Unloaded) mm/s 230/320
Travelling speed (max) (Loaded/Unloaded)  Km/h 12/13
Tractive force (Loaded) KN 5
Lowering speed mm/s ≤600
Max gradeability (Loaded) % 15
Complete size (L × W) mm 2975×1070
Fork size (L x W x T) mm 920×100×35
Closed mast height mm 1995
Overhead guard height mm 2100
Wheelbase mm 1250
Wheel tread (F/R) mm 900/930
Work pressure MPa 14
Distance from chair to overhead guard mm 1020
Battery voltage V 48
Battery capacity Ah 450
Subsidiary motor power Kw 7.5
Travel motor power Kw 6.8/7.5
Front tire model - 6.50-10-12PR
Back tire model - 5.00-8-8PR
Tire air pressure MPa 0.7
Total weight(including battery) kg 2940

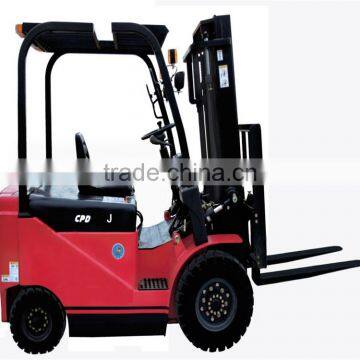

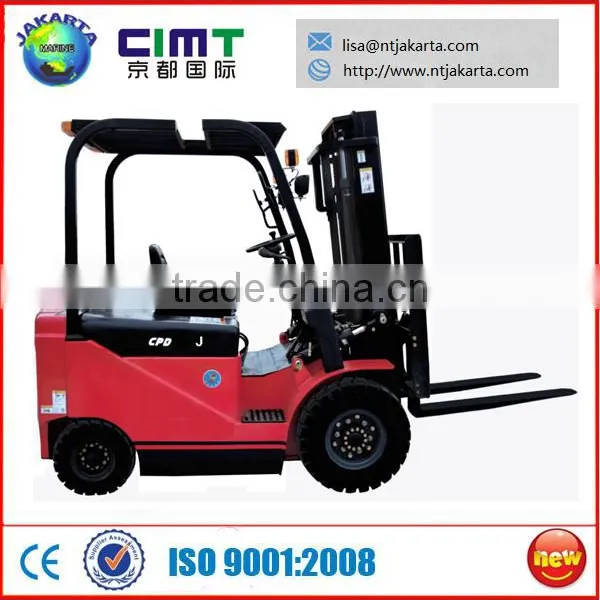

Forklift   Product Picture





  Forklift Photo Details









Forklift Attachments Conents















Standard configuration           (L x W x T) Width Thickness Length Adaptive forklift
mm mm mm mm -
920X100X30 100 30 920 1070 1220 1370 1520           1t
920X100X35 100 35 920 1070 1220 1370 1520           1.5t
1070X120X40 120 40 1070 1220 1370 1520 1670 1820 1970       2t
1070X120X45 120 45 1070 1220 1370 1520 1670 1820 1970       2.5t
1070X125X45 125 45 1070 1220 1370 1520 1670 1820 1970       3t,3.3t
1070X125X50 125 50 1070 1220 1370 1520 1670 1820 1970       3.5t, 3.7t,3.9t
1070X150X50 150 50 1070 1220 1370 1520 1670 1820 1970       4t(small),4.5t
1220X150X50 150 50 1220 1370 1520 1670 1820 1970 2120 2270 2420 2570 5t
1220X150X60 150 60 1220 1370 1520 1670 1820 1970 2120 2270 2420 2570 6t
1220X150X65 150 65 1220 1370 1520 1670 1820 1970 2120 2270 2420 2570 7t
1220X170X70 170 70 1220 1370 1520 1670 1820 1970 2120 2270 2420 2570 8t
1220X175X80 175 80 1220 1370 1520 1670 1820 1970 2120 2270 2420 2570 10t
1820X250X100 250 100 1820 1970 2120 2270 2420 2570         16t
1400X150X70 150 70 1400 1520 1670 1820 1970 2120 2270 2420 2570   7t(Stone) 7.8t(Stone)
1400X150X70 150 70 1400 1520 1670 1820 1970 2120 2270 2420 2570   8t(Stone)
1400X165X80 165 80 1400 1520 1670 1820 1970 2120 2270 2420 2570   9t(Stone)
1370X220X90 220 90 1370 1520 1670 1820 1970 2120 2270 2420 2570   12t(Stone)

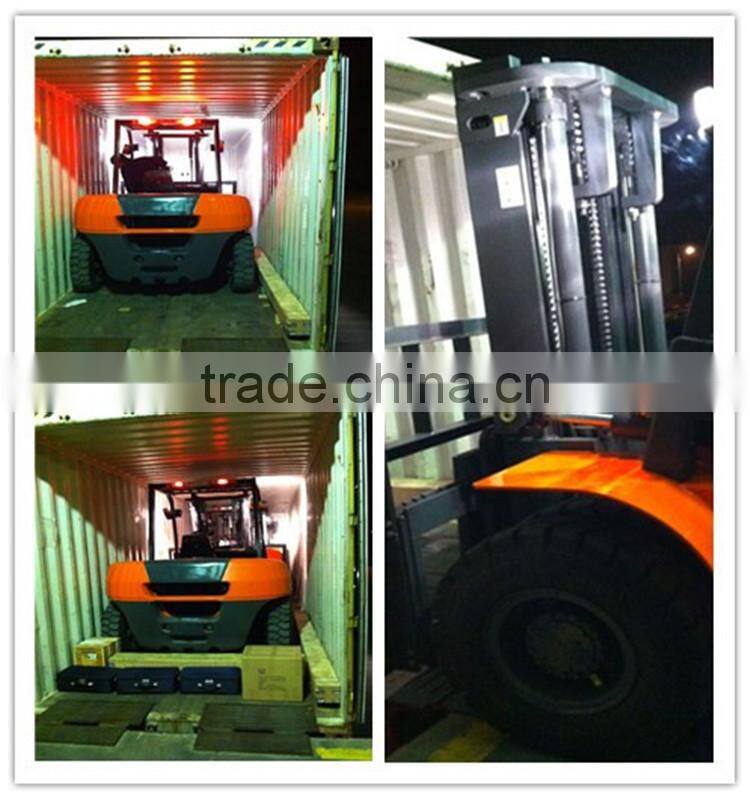

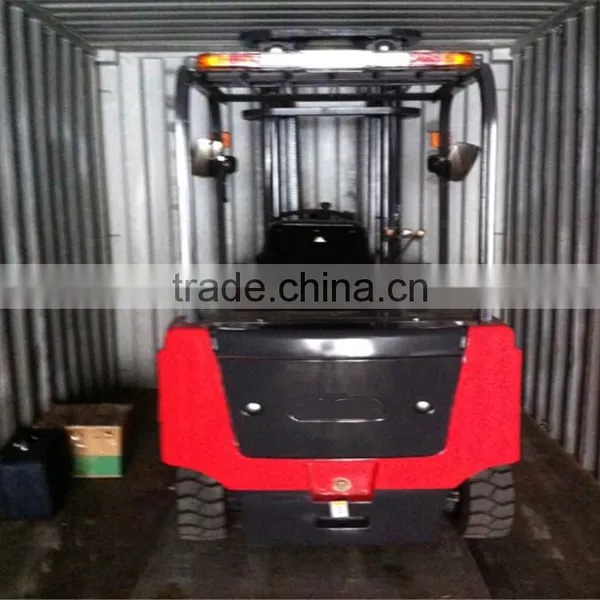

  Forklift Delivery photos









Factory photos 1.5 ton electric semi-ac forklift,electric semi-ac forklift 1500kg
