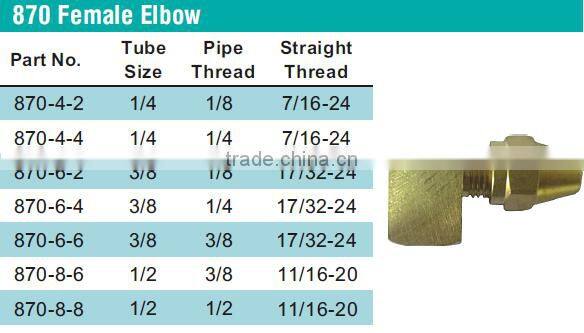

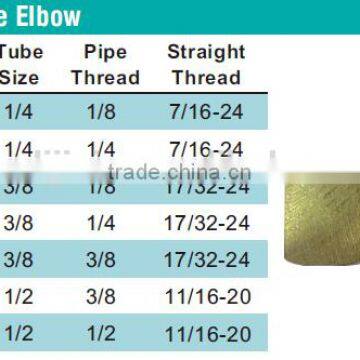

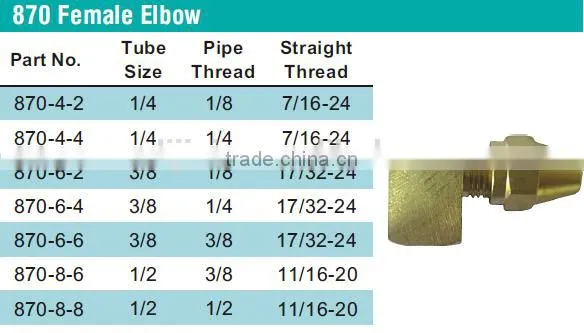

870 Female Elbow,Air Brake Fittings for Copper Tube, Brass valve

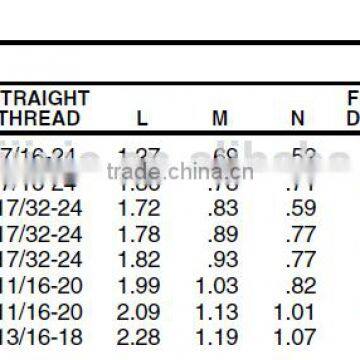

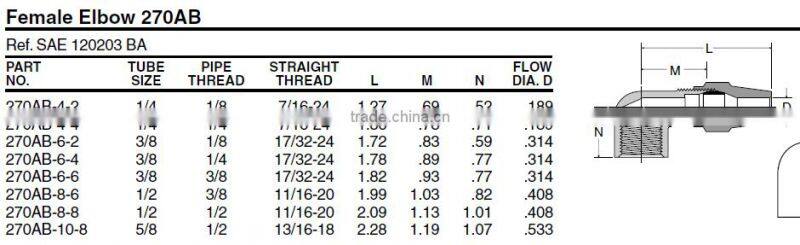

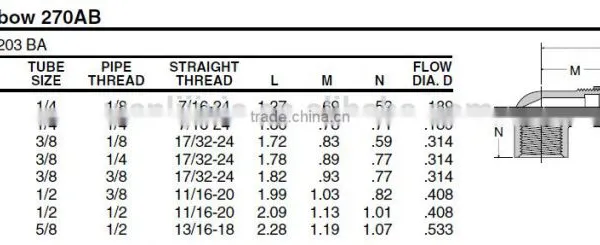

High quality brass fittings, Female Elbow 270AB, 870 Female Elbow,Air Brake Fittings for Copper Tube

note:the following size is just for you refer , unstandard size is custom-made .

AB Advantages

Easy to assemble, no flaring required. Extruded from CA 360 or CA

345 brass. Readily available in broad selection of configurations and

sizes. AB fittings are pre-applied with Locite Vibra-Seal ® 516 on all

male pipe threads.

Specifications

AB fittings meet DOT FMVSS571.106 performance specifications

when assembled with 63NTA tube support (page 83) andSAE J844

nylon tubing. Meets functional requirements of SAE J246.

Applications

Use with copper tubing in air brake systems. Air Brake bodies (with

addition of NTA tube support) are interchangeable with NTA bodies

for use with SAE J844 nylon tubing.

Working Pressure Ranges

Up to 400 psi.

Temperature Ranges

Fittings will withstand variations from -65° to +250°F.

Assembly Instructions

1. Cut tubing squarely and remove burrs.

2. Slide nut and sleeve onto tubing.

3. Insert tubing into fitting until bottomed on seat. The nut should be

screwed down finger-tight, then wrench-tightened as indicated below

(This will allow a number of remakes):

By part number. Nuts and sleeves may be ordered as separate items

by their catalog number.

Nomenclature

Part numbers are constructed from symbols that identify the style and

size of the fitting. The first series of numbers and letters identifies the

style and type fitting. The second series of numbers describes the

size.

Sizes

Tube sizes are determined by the numbers of sixteenths of an inch in

the tube O.D.

Special Fittings

Fitting configurations and/or sizes other than those shown in the

catalog can be furnished. It is suggested that a print or sketch be

submitted with the inquiry.

Pricing

Only items priced in current supplementary price list PL3501 are

carried in stock. Price and delivery for non-stock items furnished on

request for specified quantity.
