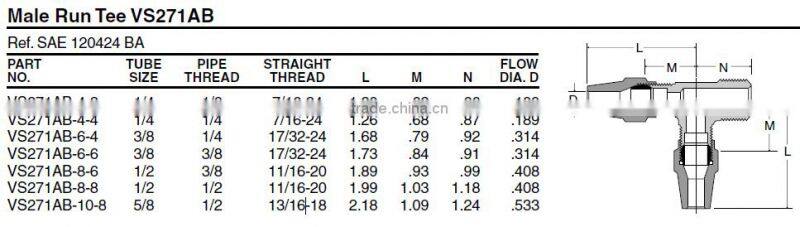

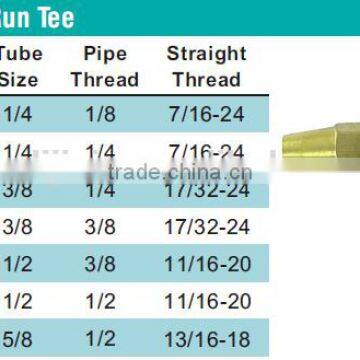

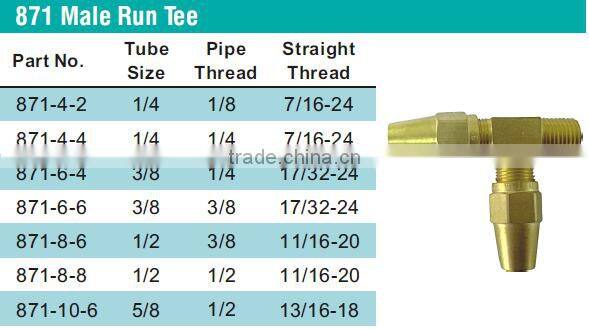

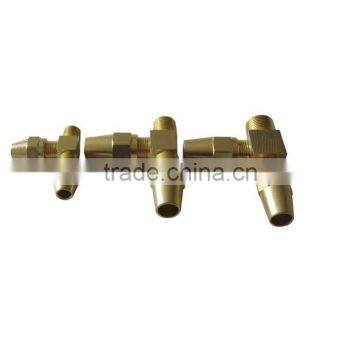

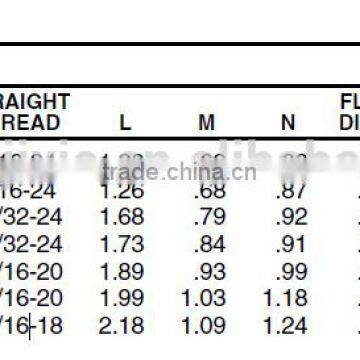

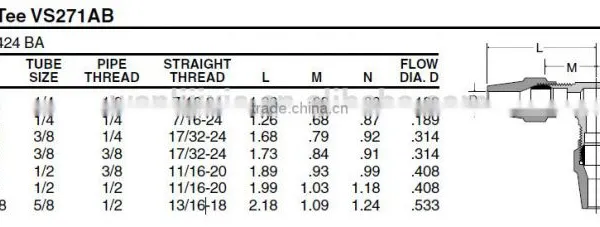

High quality brass fittings, Male Run Tee VS271AB,871 Male Run Tee,Air Brake Fittings for Copper Tube
note:the following size is just for you refer , unstandard size is custom-made .
AB Advantages
Easy to assemble, no flaring required. Extruded from CA 360 or CA
345 brass. Readily available in broad selection of configurations and
sizes. AB fittings are pre-applied with Locite Vibra-Seal ® 516 on all
male pipe threads.
Specifications
AB fittings meet DOT FMVSS571.106 performance specifications
when assembled with 63NTA tube support (page 83) andSAE J844
nylon tubing. Meets functional requirements of SAE J246.
Applications
Use with copper tubing in air brake systems. Air Brake bodies (with
addition of NTA tube support) are interchangeable with NTA bodies
for use with SAE J844 nylon tubing.
Working Pressure Ranges
Up to 400 psi.
Temperature Ranges
Fittings will withstand variations from -65° to +250°F.
Assembly Instructions
1. Cut tubing squarely and remove burrs.
2. Slide nut and sleeve onto tubing.
3. Insert tubing into fitting until bottomed on seat. The nut should be
screwed down finger-tight, then wrench-tightened as indicated below
(This will allow a number of remakes):
By part number. Nuts and sleeves may be ordered as separate items
by their catalog number.
Nomenclature
Part numbers are constructed from symbols that identify the style and
size of the fitting. The first series of numbers and letters identifies the
style and type fitting. The second series of numbers describes the
size.
Sizes
Tube sizes are determined by the numbers of sixteenths of an inch in
the tube O.D.
Special Fittings
Fitting configurations and/or sizes other than those shown in the
catalog can be furnished. It is suggested that a print or sketch be
submitted with the inquiry.
Pricing
Only items priced in current supplementary price list PL3501 are
carried in stock. Price and delivery for non-stock items furnished on
request for specified quantity.
