1. solar pump system introduction:
Solar pumping system consists of four parts: solar panels, solar pumping inverter, three-phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.
2. Solar pump system Application

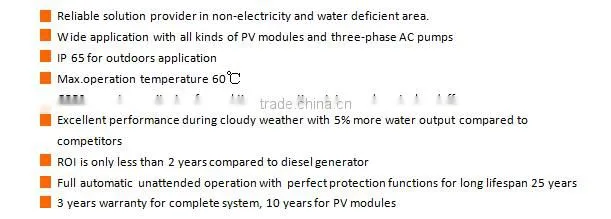

3.solar pump system feature
4.Project Configuration
.Project Information | |||||||
Head |
57meters |
Application |
Agriculture irrigation |
||||
Water flow |
80~136m3/day |
Location |
Morocco |
||||
Economic Benefits |
462 tons of coal saving in its year service life. 201 tons of CO2,9 tons of SO2,7 tons of smoke and 120 tons of ash reduction in its 25-year service life. |
||||||
Configuration | |||||||
Pump |
5.5kW |
Flow |
17m3/h |
Rated head |
57m |
||
Inverter |
5.5kW |
Frequency |
0-50/60 HZ |
Rated output Voltage |
380V~460V |
||
Solar Panels |
7.5kW |
Specification |
Polycrystalline 250W (Vmp=30.6V,Isc=8A) |
Array |
15*2*250W |
||
5. Pump Specifications
We choose pump according to project head and water requirement.
• Power capacity: 5.5kw
• Rated Head: 57m
• Rated flow: 17m3/h
• Highly efficient 3-phase AC motor
• Frequency 50Hz (60Hzoptional)
• Premium materials, stainless steel: AISI 304
• No electronics in the motor
• Efficiency max. 92%
• Motor speed 1,150~2,850 rpm
• Input voltage range 380Vac (380~460Vac)
• Insulation class F
• Protection degree IP68
• Max. diving depth 77m
6.Solar pumping inverter
d.c. Max. Input Voltage |
880Vdc |
Recommended MPPT Voltage |
460~850Vdc |
d.c. Max. Input Current |
12A |
Max. Motor Output Power |
5.5kW |
Rated Output Voltage |
380~460Vac |
Output Frequency |
0~50/60Hz |
Rated Output Current |
13A |
7. Solar panels
Polycrystalline 250W (Vmp=30.6V,Isc=8A) solar panels are used in system configuration
Nominal power watt Pmax (Wp) |
250W |
Max. power voltage (Vmp) |
30.3V |
Max. power current (Imp) |
8.17A |
Open circuit voltage (Voc) |
36.3V |
Short circuit current (Isc) |
8.71A |
Power tolerance |
0~+3% |
System configuration:
2 strings, each string 15pcs 250W solar panels. Total 30pcs, 7.5kW solar panels
8. Company Introduction
Jntech New Energy Technology Co., Ltd. was established in 2006, which is an engineering oriented high-tech company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT (BT) of solar power plant to R&D, manufacturing of key equipment and stand-alone system solution provider, Jntech has come a long way in the past 10 years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200 (50% of R&D and technical engineers)
Total EPC projects: 500MW (grounded/ rooftop)
Residential off-grid system: 30,000 units (over 10 MW)
Solar pumping system: over 2000 projects in 15 countries

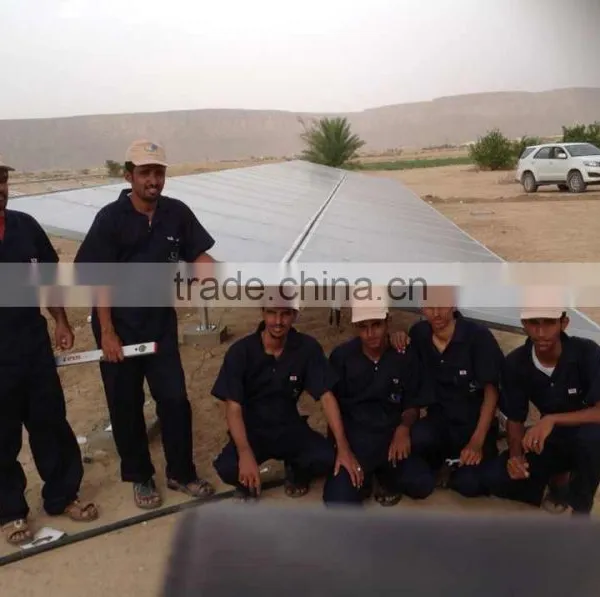

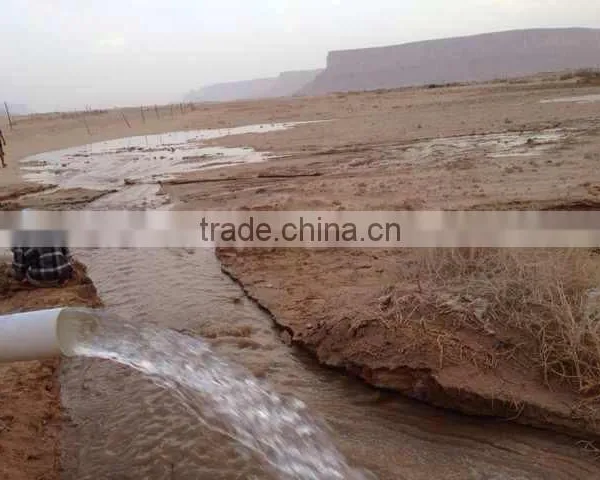

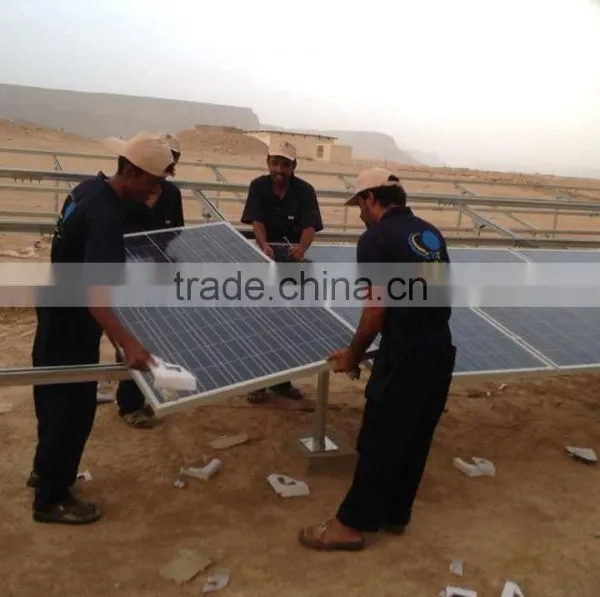

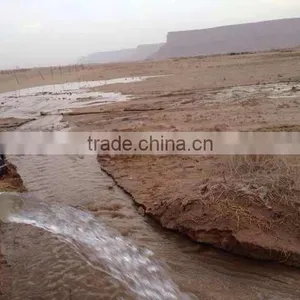

9. Part of our Reference
10. Any other details, please contact with us.
