18.5kW Solar Pump System With IP65 Protection

18.5kW Solar Pump System With IP65 Protection thumbnail-1
18.5kW Solar Pump System With IP65 Protection thumbnail-2
18.5kW Solar Pump System With IP65 Protection thumbnail-3
18.5kW Solar Pump System With IP65 Protection photo-1
18.5kW Solar Pump System With IP65 Protection photo-2
18.5kW Solar Pump System With IP65 Protection photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Jntech
Model Number:
JNP3-SP42-12
Contact Supplier Request Quote Chat Now
Hefei Jntech New Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai or ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name Jntech
Model Number JNP3-SP42-12
Specification Normal
Output Voltage (V) 380V~460V
Load Power (W) 18.5kW
Solar Power (W) 27.5kW
Work Time (h) 5 Hours

1. Solar pump system introduction
18.5kW Solar Pump System with IP65 Protection

Solar pumping system consists of four parts: solar panels, solar pumping inverter, three-phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.

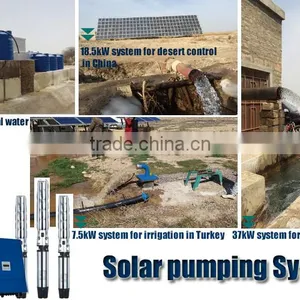

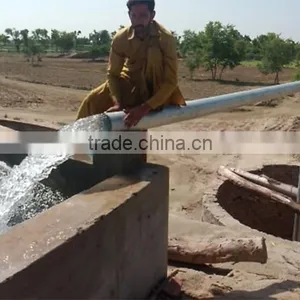

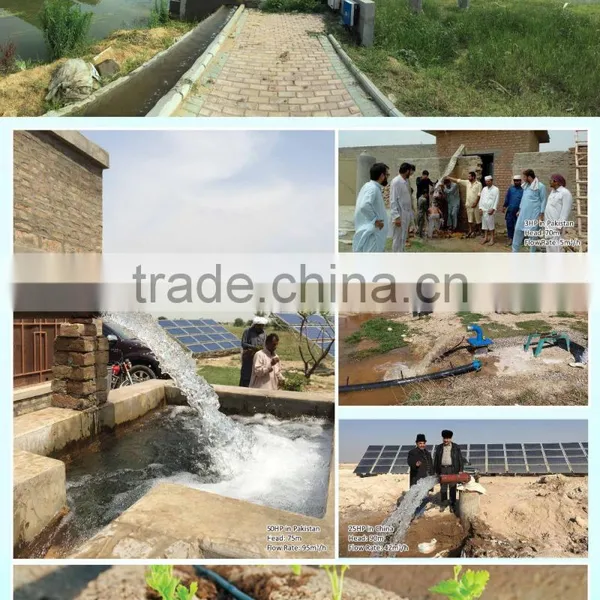

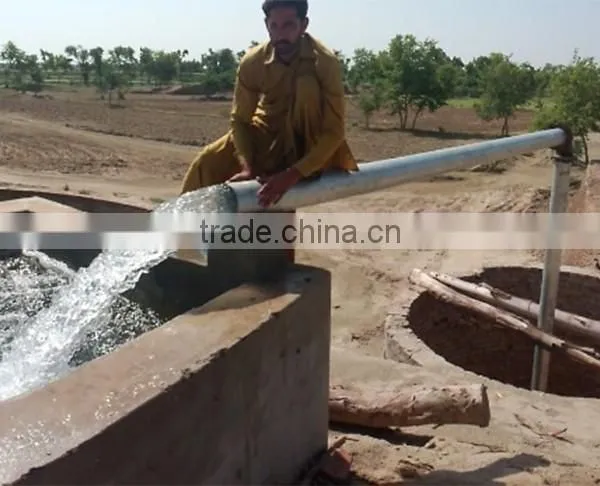

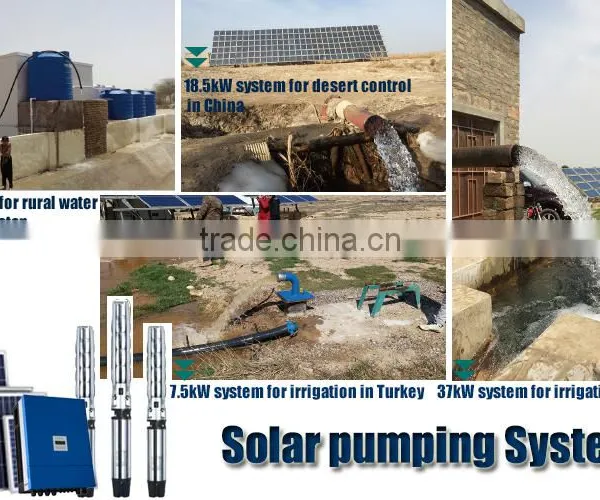

2. Solar pump system Application

3. Solar pump system feature

     Reliable solution provider in non-electricity and water deficient area.

     Wide application with all kinds of PV modules and three-phase AC pumps

     IP 65 for outdoors application

     Max.operation temperature 60℃

     GPRS remote monitoring for real time operation status and control on/off

     Excellent performance during cloudy weather with 5% more water output compared to

     competitors

     ROI is only less than 2 years compared to diesel generator

     Full automatic unattended operation with perfect protection functions for long lifespan 25 years

     3 years warranty for complete system, 10 years for PV modules

4. Project Configuration

Project Information

Head

60 meters

Application

Agriculture  irrigation

Water flow

400m3/day





Location

Echiibat - El Jadida Morocco





Configuration

Pump

18.5kW

Flow

42m3/h

 Rated head

107m

Inverter

18.5kW

Frequency

0-50/60 HZ

Rated output Voltage

380V~460V

Solar Panels

27.5kW

Specification

Polycrystalline 250W (Vmp=30.6V,Isc=8A)

Array

22*5*250W

5. Pump Specifications



 We choose pump according to project head and water requirement.

18.5kW Solar Pump System with IP65 Protection



•Power capacity: 18.5kw



•Rated Head: 107m



•Rated flow: 42m3/h



• Highly efficient 3-phase AC motor



• Frequency 50Hz (60Hz optional)



• Premium materials, stainless steel: AISI 304



• No electronics in the motor



• Efficiency max. 92%



• Motor speed 1,150~2,850 rpm



• Input voltage range 380Vac (380~460Vac)



• Insulation class F



• Protection degree IP68



• Max. diving depth 239m



  6. Solar pumping inverter

18.5kW Solar Pump System with IP65 Protection

d.c. Max. Input Voltage    880Vac
  Recommended MPPT Voltage  460~850Vac
  d.c. Max. Input Current  41.1A
  Max. Motor Output Power  18.5Kw
  Rated Output Voltage  380Vac~460Vac
  Output Frequency  0~50/60Hz
Rated Output Current                                36A



7. Solar panels

Polycrystalline 250W (Vmp=30.6V,Isc=8A) solar panels are used in system configuration





8. Company Introduction

Jntech New Energy Technology Co., Ltd. was established in 2006, which is an engineering oriented high-tech

company with a portfolio of diversified products and services.

Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT (BT) of

solar power plant to R&D, manufacturing of key equipment and stand-alone system solution provider, Jntech hascome a long way in the past 10 years.

Numbers of Jntech:

Registered capital: 100 million RMB

Employee: over 200 (50% of R&D and technical engineers)

Total EPC projects: 500MW (grounded/ rooftop)

Residential off-grid system: 30,000 units (over 10 MW)

Solar pumping system: over 2000 projects in 15 countries
