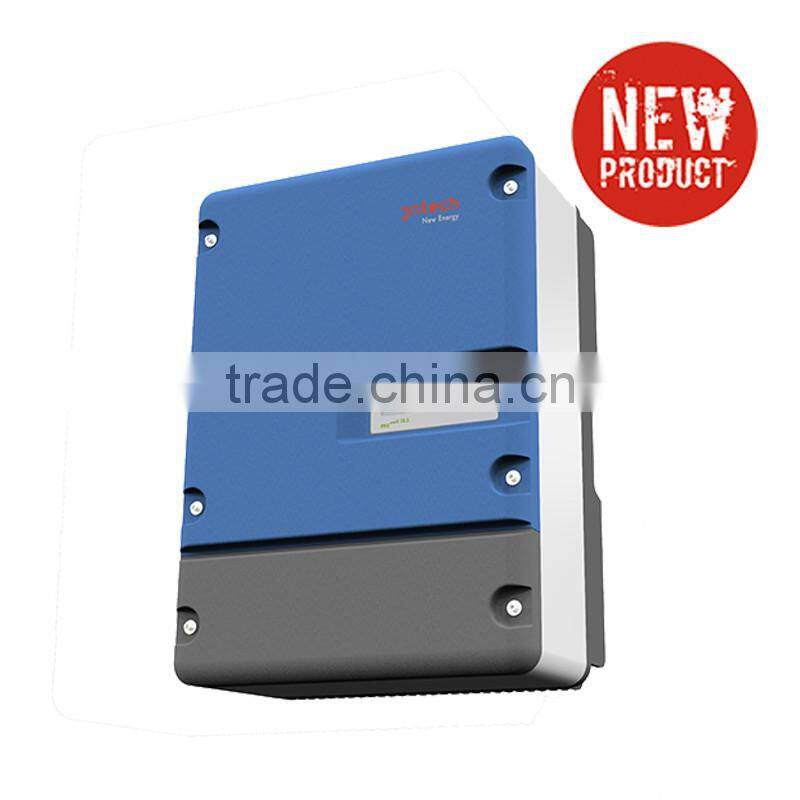

Solar pump Inverter with Vector Control, DC/AC Drives for pump

Name: Solar pump Inverter with Vector Control, DC/AC Drives for pump
Brand: JNTECH
Availability: InStock

FOB Price

US$ 579 - 609 / Piece

1 Piece(Min. Order)

Port FOB ShangHai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China	Brand Name	JNTECH
Model Number	JNP3K7L	Output Power	Other, 3.7KW
Output Type	Other, Triple, Triple	Size	330450152mm
Weight	10kg	Input Voltage	450Vdc
Output Voltage	220-240V	Type	Other, DC/AC Inverters, DC-AC
Output Frequency	50/60 HZ	Output Current	14A

Product Description

Introduction of Three phase AC solar pump

inverter

Jntech solar pumping inverter is AC three phase 50/60Hz inverter, there are two series of solar pumping

inverter,output 220V-240V inverters range from 1.1kw to 4kw. and 380-460V inverters range from 2.2kw

to 55kw until now.

1.Features of Three phase AC solar pump inverter

1), Wide MPPT range,tracking the max. power point to improve the efficiency of the Whole system.

efficiency is more than 99%.

2), With IP65 design, It can be installed outside with good waterproof.

3), Matching for any ordinary three phase 50Hz/60Hz pumps.

3), Full protection function can keep the system always in safe operation.

4), Three years warranty time.

5),Modular design,easy to install,operate and maintain.

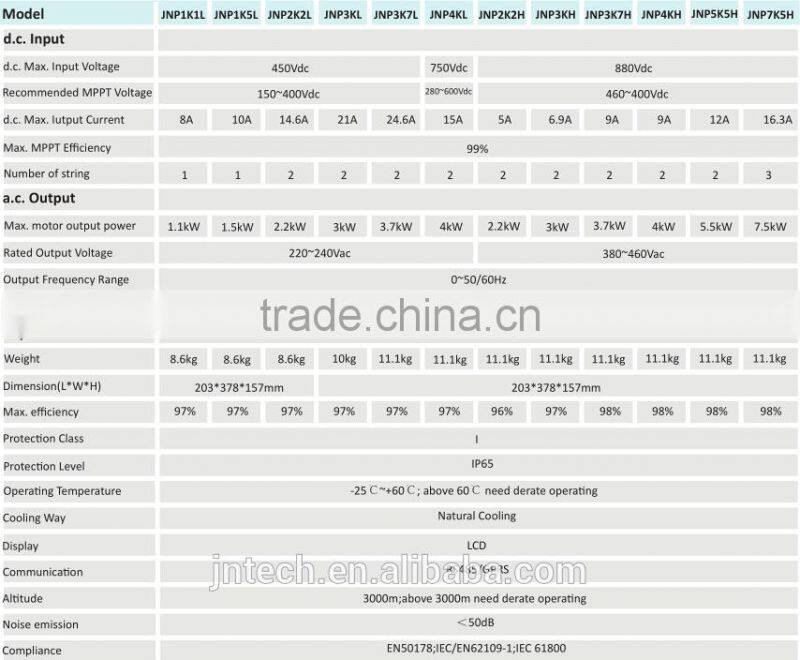

2.Parameters of Three phase AC solar pump inverter

Application.

Our Services

l 24 months warranty

Jntech inverter promise to return, replacement, repair kits within a month after shipment.Within three months after shipment to replacement, repair and 24 months warranty since the date of manufacture.

l 24 – hour aging products

Jntech inverter in order to improve products stability, reliability, passed electronic aging test before shipment --- up to 24 hours of high temperature aging, loaded aging, ect.

l 24 hours technical support

Jntech inverter makes full use of modern communication technology and internet technology, combining trinity customers technical support mode ( online, offline, the scene ) to provide users with a full range of business consulting and technical support. 24 hours every day from Monday to Saturday, our sales managers, technicians, and engineers are ready to answer your call, together with you to discuss technical problems associate with our products.
