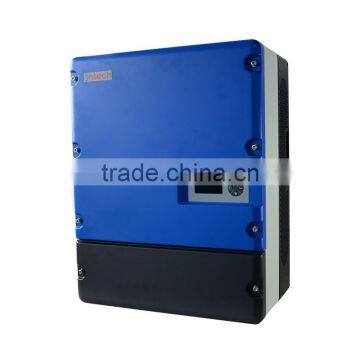

Introduction of Three phase AC solar pump
inverter
Jntech solar pumping inverter is AC three phase 50/60Hz inverter, there are two series of solar pumping
inverter,output 220V-240V inverters range from 1.1kw to 4kw. and 380-460V inverters range from 2.2kw
to 55kw until now.
1.Features of Three phase AC solar pump inverter
1), Wide MPPT range,tracking the max. power point to improve the efficiency of the Whole system.
efficiency is more than 99%.
2), With IP65 design, It can be installed outside with good waterproof.
3), Matching for any ordinary three phase 50Hz/60Hz pumps.
3), Full protection function can keep the system always in safe operation.
4), Three years warranty time.
5),Modular design,easy to install,operate and maintain.
2.Parameters of Three phase AC solar pump inverter
Application.
l 24 months warranty
Jntech inverter promise to return, replacement, repair kits within a month after shipment.Within three months after shipment to replacement, repair and 24 months warranty since the date of manufacture.
l 24 – hour aging products
Jntech inverter in order to improve products stability, reliability, passed electronic aging test before shipment --- up to 24 hours of high temperature aging, loaded aging, ect.
l 24 hours technical support
Jntech inverter makes full use of modern communication technology and internet technology, combining trinity customers technical support mode ( online, offline, the scene ) to provide users with a full range of business consulting and technical support. 24 hours every day from Monday to Saturday, our sales managers, technicians, and engineers are ready to answer your call, together with you to discuss technical problems associate with our products.
