Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > 3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement

Name: 3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement
Brand: JNTECH
SKU: 140309620
Availability: InStock

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement thumbnail-1

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement thumbnail-2

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement thumbnail-3

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement thumbnail-4

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement thumbnail-5

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement thumbnail-6

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement photo-1

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement photo-2

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement photo-3

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement photo-4

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement photo-5

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 Protection, With Generator or Utility Grid as Complement photo-6

US$ 530 - 1,050 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Anhui, China

Brand Name:

JNTECH

Model Number:

JNP3KH-JNP7K5H

Contact Supplier Request Quote Chat Now

Hefei Jntech New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Anhui, China

Brand Name JNTECH

Model Number JNP3KH-JNP7K5H

Specification Normal

Application Industrial

Output Voltage (V) 380Vac~460Vac

Load Power (W) 3KW-7.5KW

Solar Power (W) 3KW-7.5KW

Work Time (h) 6-24 hours

3HP DC/AC Solar Pumping Inverter 3kw~7.5kw, IP65 protection, with Generator or Utility Grid as Complement

1. Simple Introduction of Inverter

Solar pump inverter converts DC power produced by PV Module into AC, then run ordinary AC pump to lift water from, river, well, pool. Compare to DC Solar Pumping System, the application of our AC system is much wider, and much more stable, the lifespan of AC Solar Pump Inverter can reach to 15 years.

2. Features of Solar Pumping Inverter:

Soft start controlling in rush current, to avoid motor burning.
IP65 design for outdoor application.

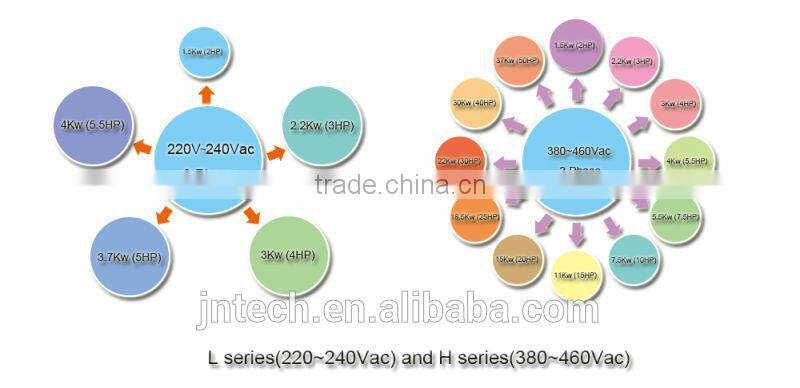

System MPPT range for 220V-240 is 150-400V, 380-460V is 460-850V.
No need derate the power capacity for pump matching. The matching power with pump is 1:1.
3 years warranty for solar pump inverter.
Complete system protection function and long lifespan.
Visual LCD based indications, DC switch inside.
Support Utility grid or generator work as pass by or complementary, working time 24hours per day.

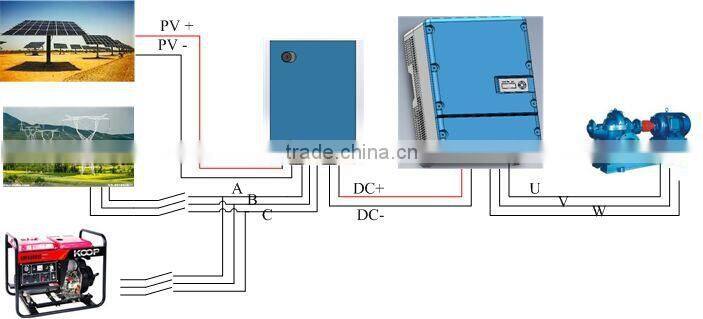

3. Solar Pumping System, new function module introduction

New function module AC PowerPack can support the system working 24 hours per day!

PowerPack worked as power supplement during the whole Solar Water Pumping System, which allows the pump to be powered by an AC generator or commercial utility power, besides of solar energy. Powerpack can keep the system working 24 hours per day, and produce a great flow rate than you will see with only solar power.

The solar array remains connected. If the sun comes out again, less power is drawn from the AC source.

A common application is for diesel generator or unstable regions of utility grid. When the sun irradiation is insufficient, just switch on the AC power source, which will work as supplement; And even at night, AC power source can work as pass by.

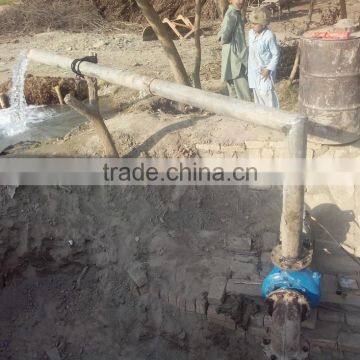

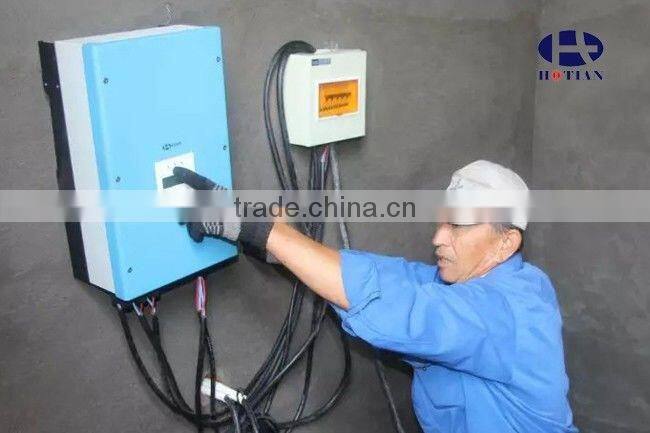

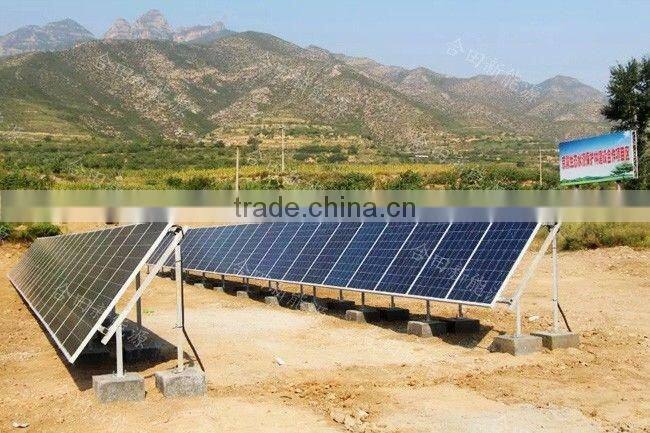

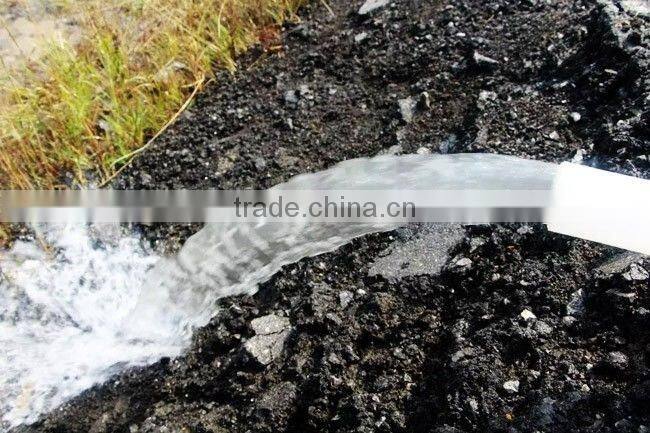

4. Projects' reference:
