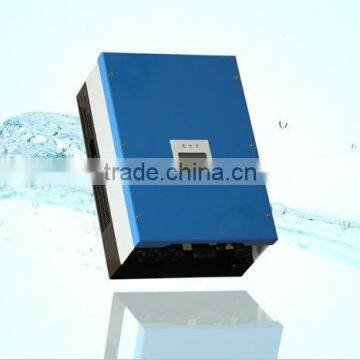

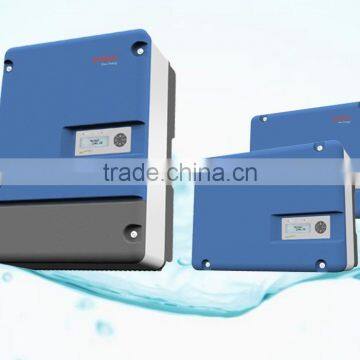

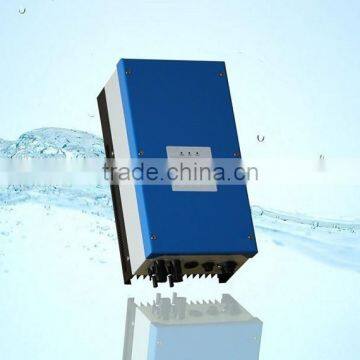

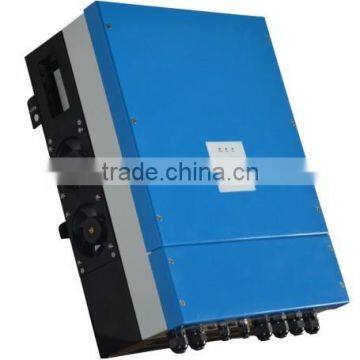

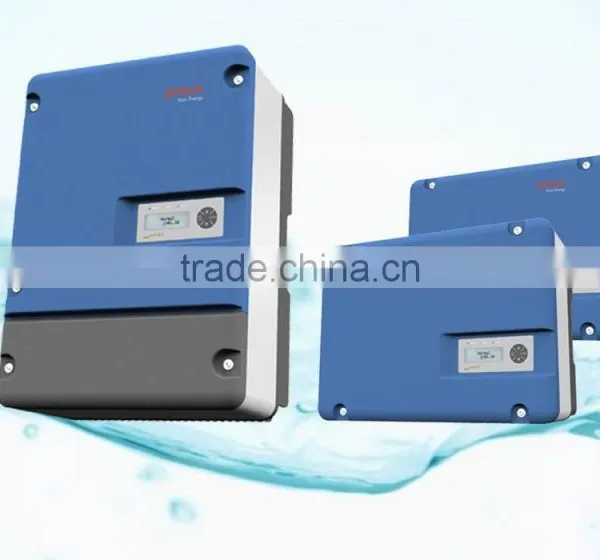

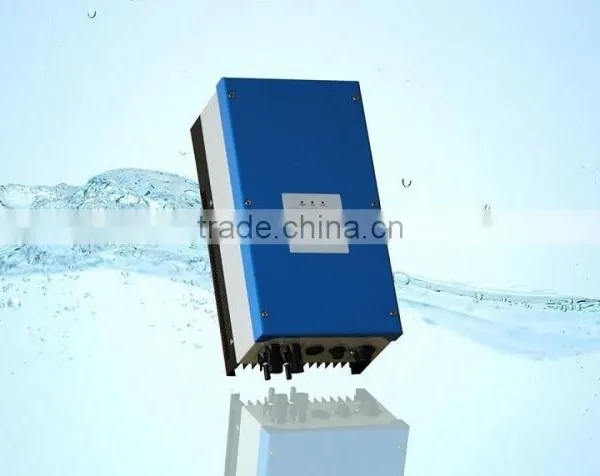

Solar Pumping Inverter From 1.1kw to 55kw

JNTECH 380V 3 Phase  Solar Pumping Inverter from 1.1kw to 55kw

1,Introduction of our Hefei JNTECH New Energy Co.,ltd

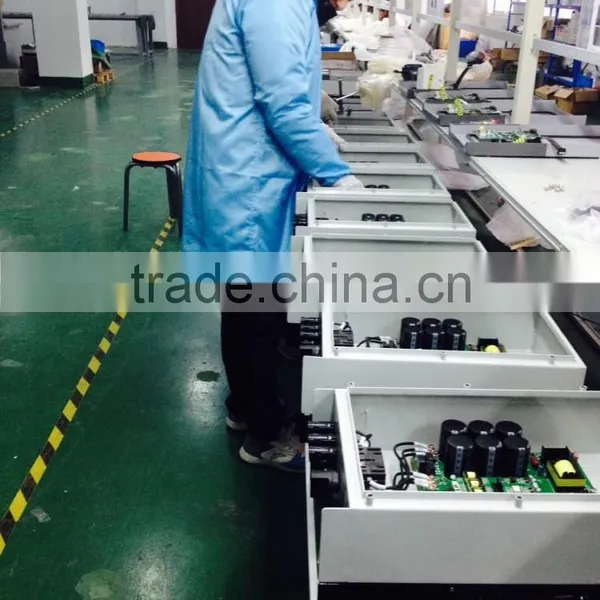

We Hefei JNTECH New Energy Co.,ltd are DC/AC solar pump inverter manufacturer from China which founded in 2006. Meanwhile, we are also contributing to provide complete solar pumping system which consists of solar panels, mounting structure, pump and other auxiliaries.

We can do the power range from 1.1kw until 55kw, 110kw is our next target.

2. Introduction of Solar Water Pumping System

Solar Pumping Inverter  converts DC power produced by PV module into AC power required pump motor. A microprocessor inside inverter machine continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.


3. Product features:

• Maximum Power Point Tracking (MPPT) for Optimum Solar Performance.
•  Automatic start and shut off according to solar intensity.
•  Soft start controlling in rush current, to avoid motor burning.
• IP65 design for outdoor application, ambient temp. -25~60 degrees centigrade.
• System MPPT range for 220V-240 is 150-400V, 380-460V is 460-850V.
• No need derate the power capacity for pump matching. The matching power with pump is 1:1.
• Adopt thin-film capacitor, fanless design for 7.5kw and below, 3 years warranty.
• Complete system protection function and long lifespan.
•  Visual LCD based indications, DC switch &  lightening protection inside.

4. Extra service:

• Design software to make the system configuration automatically.
• Monitoring system can realize remote control for inverters.
