Solar Electricity Home System

Hefei Jntech New Energy Co., Ltd.
Solar Electricity Home System thumbnail-1
Solar Electricity Home System photo-1
US$ 784 - 785 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Juneng
Model Number:
JNISG01K5
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name Juneng
Model Number JNISG01K5
Specification Mini
Application Home
Output Voltage (V) DC12V/AC230/120V
Load Power (W) DC180W,AC200W
Solar Power (W) 150wp
Work Time (h) 5-7hrs

Specifications

solar electricity home system
Ajustable Solar Panel Rack
Fast connection LED lamp
DIY installation

solar electricity home system

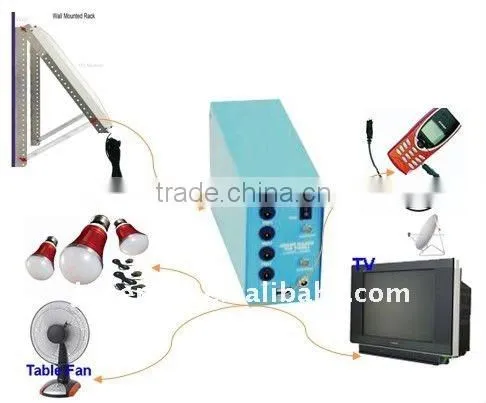

By System You can Use:

3 set of 5W LED LAMP

1 of 42W Fan

1 of 60W TV

Chargers



System Includes

Solar Panel 150W solar panel with Rack

Power Machine combined with 12V120Ah battery, 12V controller, 200W inverter

Optional for : fast connection LED lapms



solar electricity home system

System Model

Unit

JNISG01K5

Support Loads

3 of DC 5W LED work 5~7hrs/Day

1 of AC 42W fan work 3~5 hrs/Day

1 of AC 60W TV work 3~5 hrs/Day



Power Output

Power Supply

kWh

12.6kWh/M

Max power

W

DC180W,AC200W

Output Voltage

V

DC12V/AC230/120V

Solar Module

Peak Power

Wp

Mono Silicon 150Wp

Quantity

Pcs

1

Power Box (Combined with Controller/ Inverter/ Battery)

Controller DC input Voltage

V

12V

Controller DC input current

A

15A

Controller DC Output Power

V

DC12V, 180W

Inverter AC Output Power

W

AC200W

Battery Capacity

/

AGM VRLA ,12V/120Ah

Machine Size

mm

L550*D350*H550

Weight

kg

45

Installation Method

/

Wall Mounted/ table standing

Accessories

/

Switch, Breakers, meters, LED display, output terminals

Panel Mounting Rack

Installation Method

/

Wall Mounted/ Grounding

Material

/

hot galvanized metal/Aluminum

Accessories

Panel—Power Box Cable

/

Fast connection RVV2×2.5mm  8meters

3W LED Lamp

/

3 complete sets with 6 meters cables

Optional

/

Table Fan and color TV

System Includes

PV Panel, Power Box, Panel Rack, Cable, LED lamps



Feature

Adjustable panel rack and various installations, portable and easy assembly

Multi function Power Box, combine with controller, inverter, battery inside, with 3 DC lamp outputs, 1 USB mobile charge port, 2 AC outputs for Fan and TV; LED display showing Power Available, Power Low, Fault, AC power. Necessary switches integrated by the box

Fast Connection terminals for panel---power box---lamps

Complete solution as we supply complete solar system together with lamps and optional for fan and TV with receiver



 (solar inverter, grid connected inverter, on grid inverter, in grid inverter, grid intertied inverter,frequency inverter, solar system inverter, LCD inverter, energy inverter, solar panel inverter,power inverter, SAA inverter)
