solar electricity generation system

Specifications

solar electricity generation system
1000Wp solar panel
Ajustable Solar Panel Rack
Fast connection LED lamp
DIY installation

solar electricity generation system

Power Supply: 100kWh per month

You can use:  6 sets of 5W LED each work 6~8 hours per day,  Plus 1 set of 60W fan,  Plus 1 of 120W TV,  and 1 of washer machiner  or 1 water pump, plus 1 150L refrigerator work 24 hours per day, 1 Computer and 1 Rice cooker

You can installation the system yourself

You can use power in romote area, without of costs of long distance cables like grid power net

You can use power free of money

You can save money when you use solar system even there already has grid power

You can use solar system everywhere and any time ony if have sun

You can use power without of noise, without of polution

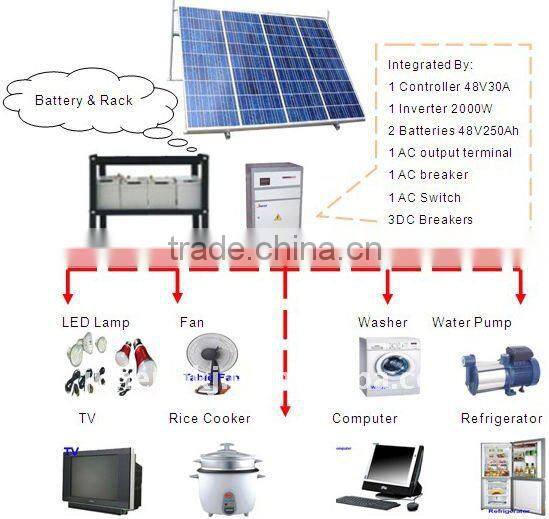

System Includes

 Solar Panel 1000W solar panel with Rack

Power machine which combined with inverter 2000W, controller,

Battery 48V/250Ah with battery rack

Connection cable for inverter and Solar Panels

Optional for : LED lamps, TV, fan and so on

Solar Home System Technical Characters:

High efficiency solar module from 15Wp to 300Wp, CE, UL, TUV approved

LED Display monitoring system working condition, like power available, power low and so on

Both DC and AC output, widely used for rural homes powering lamp, fan, washer, TV, cooler

Anti corrosion mounting system, hot galvanized metal, aluminum material and stainless accessories sure its long life span

Adjustable Solar panel rack, widely used for different places; Various installation way like wall mounted, grounding or installed by standing pole

Easy DIY installation design; Integration battery, controller, inverter and all electric accessories inside in one body, which also has fast connection terminals, switches, breakers

Compact design of Power box, with full range of protections and lockable door for battery compartment, the system is powerful and safety for power use. It would be put on table or mounted on the wall

Portable and Easy disassembly, solar panel rack was easy disassembly design, it would not need to disassemble the panel and rack for taking; And all cables, LED lamps are fast connection terminals

Complete Solution for a rural home, we supply compact solar system together with LED lamps, DC fan, TV and Receiver and so on

Technical Specifications

System Model	Unit	JNISG1K
Support Loads
6*5W LED lamp work 4- 6hrs/Day		1 of AC 60W fan work 6 ~8hrs/Day
1 of AC 120W TV work 3~4 hrs/Day		1 of 300W washer work 0.5 hour/day
1 of 300W pump work 0.3 hour/day		1 of Computer 150W work 4 hour per day
1 of 800W Rice cooker work 0.5 hr/day		1 of 150W cooler work 24 hours per day
Power Output
Power Supply	kWh	100kWh/M
Max power	W	AC2000W
Output Voltage	V	AC230
Solar Module
Peak Power	Wp	Mono Silicon 250Wp
Quantity	Pcs	4
Power Machine (Combined with Controller/ Inverter)
Controller DC input Voltage	V	48V
Controller DC input current	A	30A
Inverter AC Output Power	W	AC2000W
Machine Size	mm	L550*D450*H800
Accessories	/	Switch, Breakers, meters, LCD display, AC outputs
Battery & Rack
Battery Capacity	/	AGM VRLA ,48V/250Ah
Rack		Hot galvanized metal
Panel Mounting Rack
Installation Method	/	Grounding/roof mounted
Material	/	Hot galvanized metal/aluminum
Accessories
Cables	/	Panel---Power Machine fast connection 15 meters
Optional	/	5W LED bulb with cable
System Includes	Solar Panels and Rack, Power machine, cable, Battery & Rack
