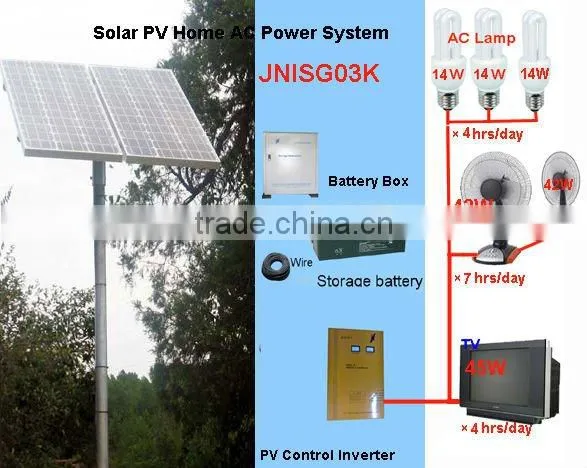

solar home systemUsed for 3 sets of 14W lamps work 4 hours per day plus 2 set 42W fan 7 hours,1 set 45W TV at 4 hours
solar home system
Your Benefits:
Power Supply: 27.6kWh per month
You can use: 3 sets of 14W lamps each work 4 hours per day
Plus 2 set of 42W fans each work 7 hours per day
Plus 1 set of 45W TV work 4 hours per day
You can installation the system yourself
You can use power in romote area, without of costs of long distance cables like grid power net
You can use power free of money
You can save money when you use solar system even there already has grid power
You can use solar system everywhere and any time ony if have sun
You can use power without of noise, without of polution
Solar system= Freedom of power
System Devices:
The solar generator you buy would including:
Solar Panel 150Wp, 2 piece
Solar Controller 24V 15A, 1 set
Solar Inverter 500W, 1 set
Solar battery: 12V/150Ah, 2 set
Installation pole: 1.5m Height with kits, 1 set
Electric cabinet box with switches, cables and all accessories, 1 set
Notes:
System basis of average solar irradiate more than 4kWh/m2/D,15°c~25°c temperature, weekly rain less than 2 days, different place with different solar irradiate and rainfall, temperature and so on, should make necessary configuration changes;rural houses solar system
Type |
Unit |
JNISG03K |
|
Power Output |
Power Supply |
kWh/M |
27.6kWh/M |
Power |
W |
AC1000W |
|
Voltage |
V |
230/110V |
|
Frequency |
Hz |
50/60Hz |
|
Load Recommend |
2 lamps,1 fan, 1 TV (120W@8hrs) |
||
PV Panel |
Type |
Poly Silicon |
|
Peak Power |
Wp |
150Wp |
|
Vmp |
V |
17.3V |
|
Quantity |
Pcs |
2 |
|
Controller & Inverter |
Power |
W |
AC1000W |
Input Voltage |
V |
24V |
|
Input Current |
A |
15A |
|
Grid Bypass |
V/Hz |
230/110V±15%,50/60Hz |
|
Size |
mm |
460 X 483 X 177 |
|
Weight |
Kg |
33 |
|
Accessories |
Switch, Breakers, meters, LED display |
||
Quantity |
1 |
||
Battery |
Type |
VRLA |
|
Voltage |
V |
12V |
|
Capacity |
Ah |
150Ah |
|
Size |
515×250×240 |
||
Weight |
Kg |
38 |
|
Quantity |
Pcs |
2 |
|
Structure |
Installation Method |
Pole Support, 300×300mm flange |
|
Panel support Material |
40*4mm Angle steel structure, Ø10*150cmm pole with galvanized and plastic spray |
||
Screw Material |
Stainless |
||
Screw Quantity |
16*(M6×20) |
||
Cables |
10M Sheathed wire RVV2×2.5mm2 |
||
Battery box |
Size |
Lockable 600mm×600mm×400mm |
|
Material |
galvanized steel and with plastic spray |
||
Weight |
30kg |
||
Quantity |
1 |
||
Which System you must have:
The system would be siutable used for small homes which have 3 small lamps, 2 table fan and 1 small TV
If you have more appliances, please choose other models
