Specifications

solar energy
Easy DIY install
Compact packing size
Mainentance free

solar energy

Your Benefits:

Power Supply: 92kWh per month

You can use:   6 sets of 14W lamps each work 4 hours per day

                       Plus 2 set of 42W fans each work 6 hours per day

                       Plus 1 set of 60W TV work 4 hours per day

                       Plus 1 set of 120W computer work 6 hours per day

                       Plus 1 set of 100W cooler Work 24 hours per day

                       Plus 1 set of 300W washer work 1 hour per day

                       Plus 1 set of 30W printer work 1 hour per day

                       Plus 1 set of 150W fax work 1 hour per day

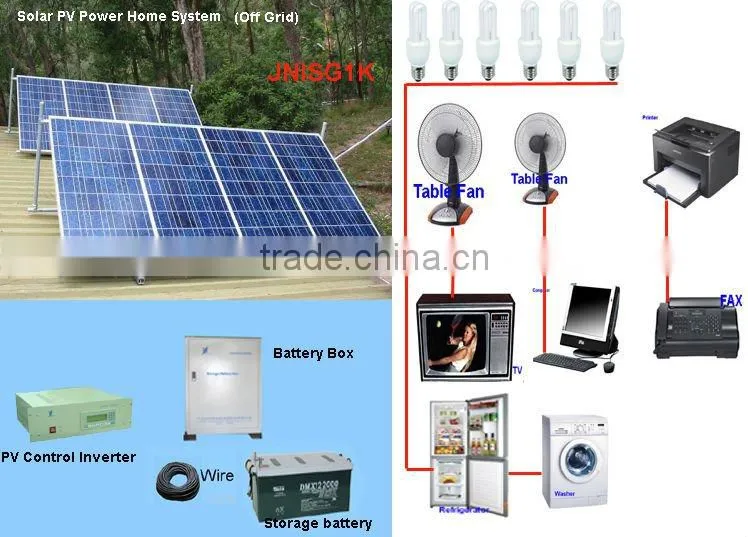

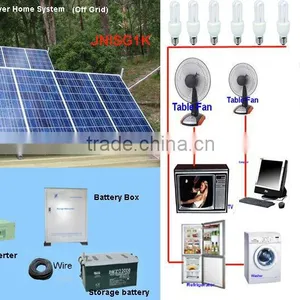

System Devices:

The solar generator you buy would including:

Solar Panel 165Wp, 6 piece

Solar Controller 48V 30A, 1 set

Solar Inverter 2000W, 1 set

Solar battery: 12V/250Ah, 4 set

Angle steel structure 40*4mm and 40A aluminum profile and all installation kits, 1 set

Electric cabinet box with cables and all accessories, 1 set



Notes:

System basis of average solar irradiate more than 4kWh/m2/D,15°c~25°c temperature, weekly rain less than 2 days, different place with different solar irradiate and rainfall, temperature and so on, should make necessary configuration changes

Type Type		Unit	JNISG1K
Power Output	Power Supply	kWh/M	92kWh/M
	Power	W	AC2000W
	Voltage	V	230/110V
	Frequency	Hz	50/60Hz
	Load Recommend		4 lamps, 2 fan, 1 TV, 1PC,1 printer, 1 fax, 1 washer, 1 cooler(600W@ 6hrs
PV Panel	Type		Poly Silicon
	Peak Power	Wp	165Wp
	Vmp	V	35.8V
	Quantity	Pcs	6
Controller & Inverter	Power	W	AC2000W
	Input Voltage	V	48
	Input Current	A	25A
	Grid Bypass	V/Hz	230/110V±15%,50/60Hz
	Size	mm	490X 470 X 190
	Weight	Kg	36
	Accessories		Switch, Breakers, meters, LCD display
	Quantity		1
Battery	Type		VRLA
	Voltage	V	12V
	Capacity	Ah	250Ah
	Size		523×267×246
	Weight	Kg	78
	Quantity	Pcs	4
Structure	Installation Method		Flat Ground or Roof
	Panel support Material		Galvanized and plastic spray 40*4mm Angle steel structure, 40A aluminum profile
	Screw Material		Stainless
	Screw Quantity		60*( M8×20)
	Cables		10M RVV2×2.5mm2
Battery box	Size		Lockable 800mm×800mm×400mm
	Material		galvanized steel and with plastic spray
	Weight		40kg
	Quantity		1
