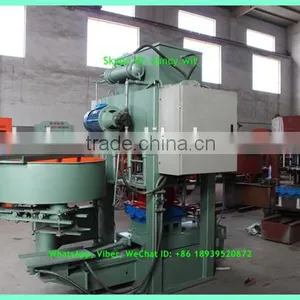

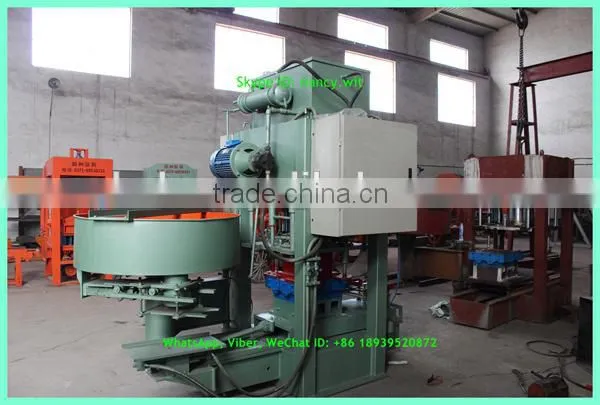

Good Performance Cement Tile Press Machine/
Automatic Hydraulic Cement Tile Machine
One full-automatic cement roof tile press machine is the most advanced innovative, cost-effective and
eco-friendly professional tile forming equipment by far.
Main technical parameters of the full-automatic concrete roof tile making machine:
| # | Main technical parameters | Details |
| 1 | Voltage | 380 V |
| 2 | Molding Cycle | 8-10 seconds / piece |
| 3 | Molding Pressure | 1800 Kilo Newton |
| 4 | Normal Roof Tile Size 1 | 420 x 330 x 15 mm |
| 5 | Normal Roof Tile Size 2 | 424 x 337 x 15 mm |
| 6 | Maximum Tile Size | 600 x 600 x 30 mm |
| 7 | Power of the Main Machine | 7.5 KW |
| 8 | Weight of the Main Machine | 5 Ton |
| 9 | Dimension of the Main Machine | 2600 x 1900 x 2500 mm |
| 10 | Output for Roof Tiles Per 8 Hours | 3000-3600 pieces |
The full-automatic cement tile press includes the following parts (Components):
| # | Product Name | |
| 1 | one bucket elevator | |
| 2 | one LK-350 vertical mixer | |
| 3 | one quantitative feeding mixer | |

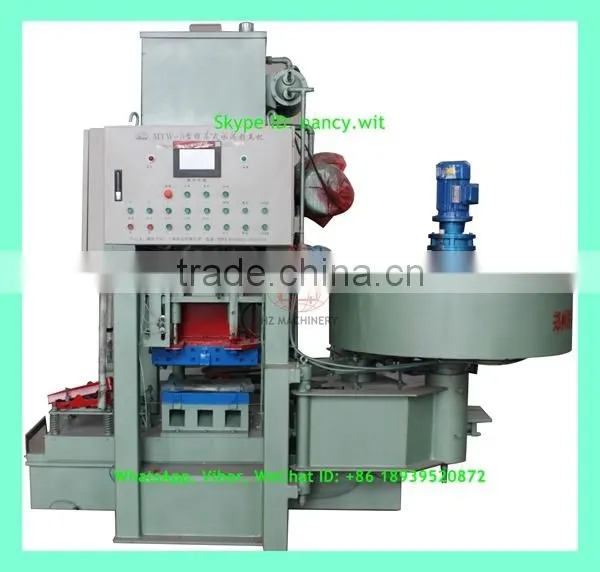

| 4 | one MYW-8 main machine | |
| 5 | one hydraulic pallet truck | |
| 6 | one manual ridge/edge tile making machine | |
| 7 | 2000 pieces of steel roof tile pallets | |
| 8 | 5 pieces of plastic ridge tile moulds and 5 pieces of plastic edge tile moulds | |

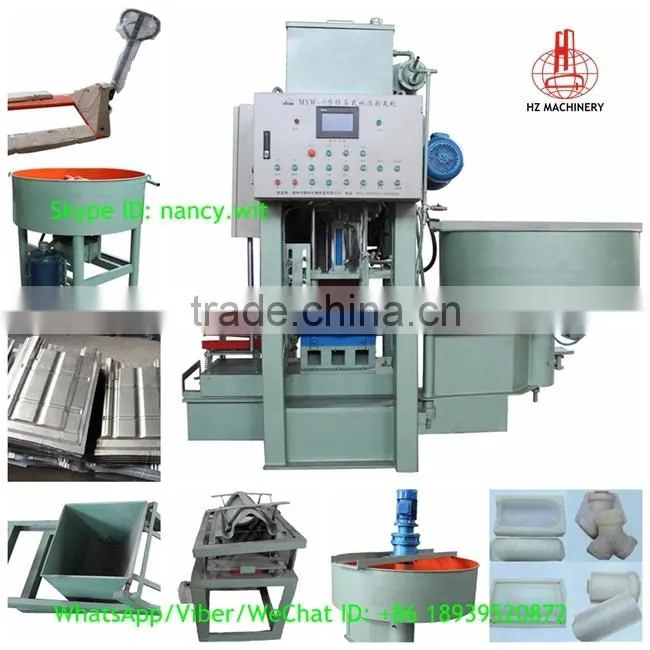

Photo of the whole set cement roof tile press machine:
Mix water, raw material such as cement, coal ash and sand up in proportion and feed the mixture evenly to

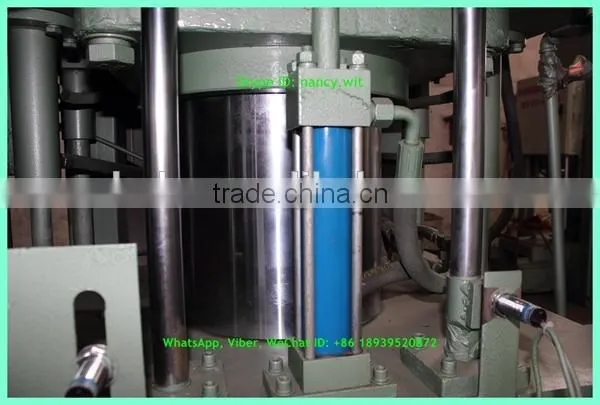

the main machine of the CNC concrete tile making machine, and then under the high pressure of a hydraulic
cylinder and a mould, semifinished concrete tiles that become concrete tiles after maintenance and painting
are produced. If different moulds such as terrazzo moulds are applied, terrazzos can be obtained.
The working flow of the cement tile press is as follows:

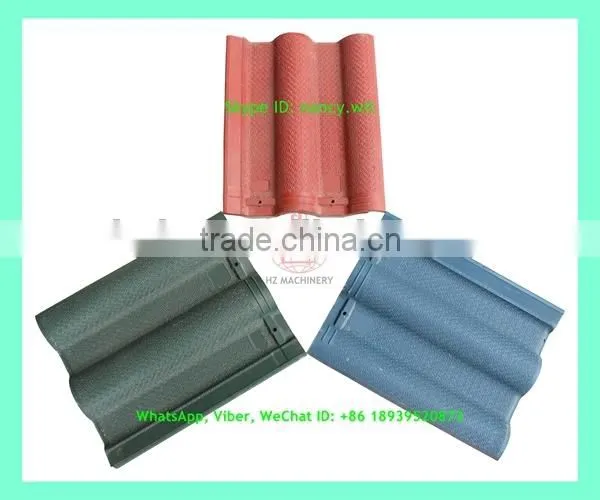

Close-up of roof tiles:
We can provide more than the following services:
1) According to the actual site, design and help adjust the production flow and equipment layout for free.
2) Supply the foundation drawing of the production line for free.
3) Supply the technical parameters of supporting equipment for free.
4) Upgrade is available if we have technology advancement after the installation.
5) We shall send at least one technician to the site to guide the installation and commissioning, and offer training service.
High Quality is our Promise; Being Trustful is our Responsibility.
1) The quality guarantee is 12 months after installation and commissioning.
2) We will be responsible for malfunctions caused by the automatic tile machine itself or other quality problems.
3) The customer will be responsible for other misoperation or improper handling such as operation mistakes,
man-made problems.
Any way, we will help solve any problems the customer comes across in the operation and provide life-long
maintenance for the machine.
Please inform us of your specific requirements for better services:
1) Q: What kind of tiles you'd like to produce? Material and usage?
A: We can provide machines making concrete roof tiles, cement tiles, terrazzos, and bricks or blocks.
2) Q: What sizes would be normal for you?
A: For concrete roof tiles or terrazzos, maximum size achievable on MYW-8 is 600*600*70mm,
maximum size achievable on MYW-10 is 1230*640*20mm and 1000*1000*70mm.
3) Q: What's the production capacity you would like to achieve?
A: Our machine can achieve capacity of 3000 to 3600 pieces per 8 hours for concrete roof tiles,
2000 to 2800 pieces for terrazzo floor tiles.
4) Q: Working voltage you would like to use? 220V or 380V or 440V, etc.?
A: The voltage of our machines are 380V. But we can also make it at the voltage as per your local requirement.
5) Q: What's the MOQ of your machines?
A: The MOQ is 1 set.
6) Q: Where can we buy the machine's parts?
A: Our company can provide spare parts or components for you at any time.
Delivery of the concrete tile making machine:
Dear Customer, all the following products are in my charge:
Click the photo of the machine you're interested in to check its specific details:
| Cement Roof Tile Machine | Terrazzo Tile Machine |
Sand and Stone Production Line (Vertical Crusher) |
|
|
|
|
Welcome for any query from you!
Dear customer, if you have any query, please feel free to contact me, and I am always here to provide you with good services:
Henan Haozhou Export & Import Trading Co.,Ltd.
Nancy Ng| Sales Rep. | Sales Department
WhatsApp/Viber/WeChat ID: +86 18939520872
Alibaba Trademanager ID: cn1515365913zfae
Email: nancyng(at)
Skype ID: nancy.wit
Tel : +86 371 86081370
Fax: +86 371 86081370
Mobile: +86 18939520872
Interested in our machines, contact me right now!
