24000rpm, 3.5kw, 350v, 120mm Grinding Spindle Motor

24000rpm, 3.5kw, 350v, 120mm Grinding Spindle Motor thumbnail-1
24000rpm, 3.5kw, 350v, 120mm Grinding Spindle Motor photo-1
US$ 500 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
WF
Model Number:
MD120Z24/3.5
Application:
Other, carving
Contact Supplier Request Quote Chat Now
Anyang Wanfeng Industrial & Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WF
Model Number MD120Z24/3.5
Application Other, carving
Maximum Torque demand
Drive Motor
Operating Speed 24000r/min
Product Description

                                       24000rpm, 3.5kw, 350v, 120mm grinding spindle motor





Spindle type

    Speed

    (r/min)

           Motor        Dimensions(mm)     Lub       Spindle nose           dimension   Bearings type
 KW   V   A    Hz   D D1 D2  S    L  L1  L2  d       M  L3  L4
MD120Z24/3.5 24000 3.5 350 6.5 400 120 28 - 12 260 - 24   Grease -  M20*1.5 - - 7006C/P4 7005C/P4



Spindle Merits:

1.High precision, high speed, high stability, tight structure, low noise, low vibration.

2.Wide application: turning, grinding, milling, carving, drilling and so on.

3.The step-less variable speed in the range of the rated running speed is available to suit the request of various conditions and loads.

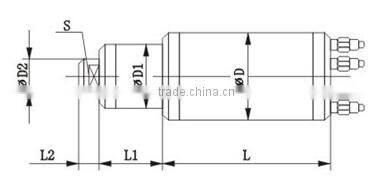

Sketch to show the dimensions



24000rpm, 3.5kw, 350v, 120mm grinding spindle motor24000rpm, 3.5kw, 350v, 120mm grinding spindle motor

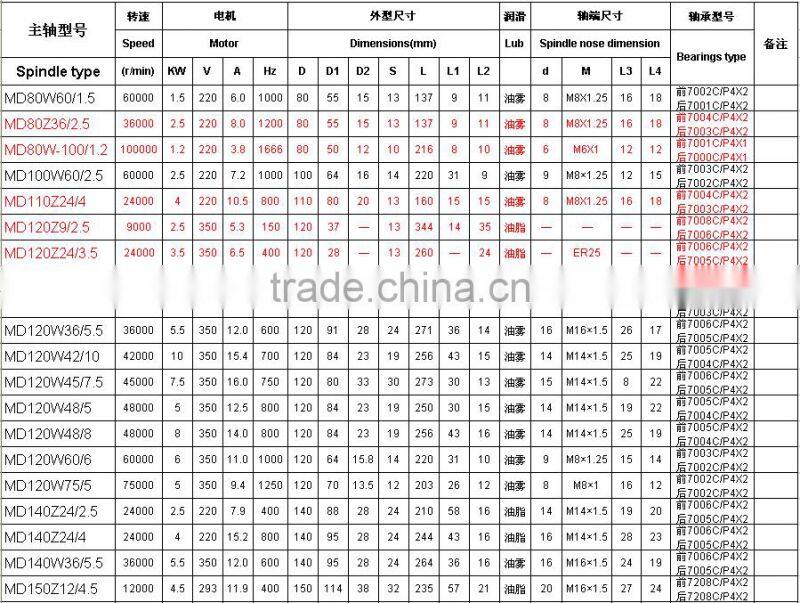

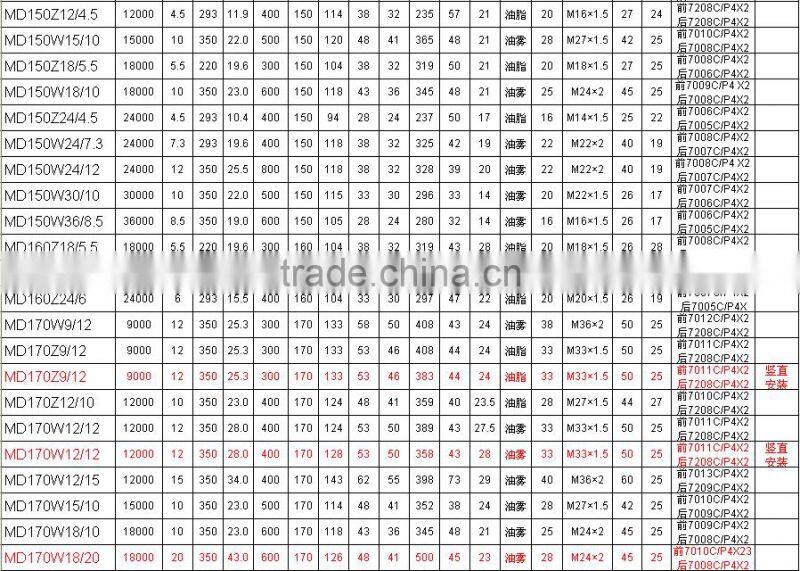

Technical data



24000rpm, 3.5kw, 350v, 120mm grinding spindle motor

24000rpm, 3.5kw, 350v, 120mm grinding spindle motor

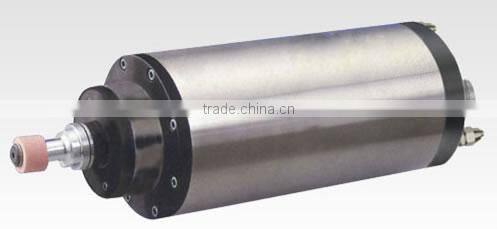

Product show



24000rpm, 3.5kw, 350v, 120mm grinding spindle motor





How to use



24000rpm, 3.5kw, 350v, 120mm grinding spindle motor
