BT30, 24000RPM, 4KW, 350V, 120mm ATC Machining Center Spindle Motor

BT30, 24000RPM, 4KW, 350V, 120mm ATC Machining Center Spindle Motor thumbnail-1
BT30, 24000RPM, 4KW, 350V, 120mm ATC Machining Center Spindle Motor thumbnail-2
BT30, 24000RPM, 4KW, 350V, 120mm ATC Machining Center Spindle Motor thumbnail-3
BT30, 24000RPM, 4KW, 350V, 120mm ATC Machining Center Spindle Motor photo-1
BT30, 24000RPM, 4KW, 350V, 120mm ATC Machining Center Spindle Motor photo-2
BT30, 24000RPM, 4KW, 350V, 120mm ATC Machining Center Spindle Motor photo-3
US$ 2,200 - 2,300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
WF
Model Number:
GD120Z24/4BT30a
Application:
Milling
Contact Supplier Request Quote Chat Now
Anyang Wanfeng Industrial & Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WF
Model Number GD120Z24/4BT30a
Application Milling
Maximum Torque 1.8NM
Drive Motor
Operating Speed 24000r/min
Product Description

                                                BT30, 24000rpm, 4kw, 350v, 120mm ATC machining center spindle motor



Spindle Model GD120Z24/4BT30a
Installment Diameter 120mm
Speed 24000rpm
Rated Power 4kw
Nominal Voltage 350v
Nominal Current 8A
Dimension see the drawing
Cooling water cooling
Collet BT30
Other can customize as your demands



Spindle Merits:

1.High precision, high speed, high stability, tight structure, low noise, low vibration.

2.Wide application: turning, grinding, milling, carving, drilling and so on.

3.The step-less variable speed in the range of the rated running speed is available to suit the request of        various conditions and loads.

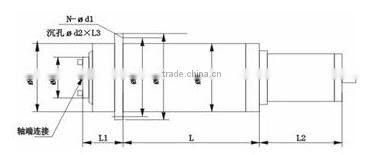

Sketch to show the dimensions



 BT30, 24000RPM, 4KW, 350V, 120mm ATC machining center spindle motor

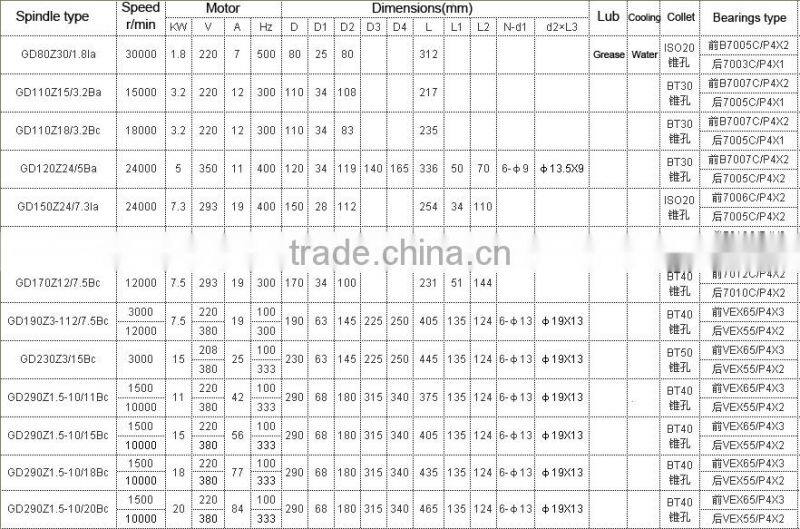

Technical data



BT30, 24000RPM, 4KW, 350V, 120mm ATC machining center spindle motor

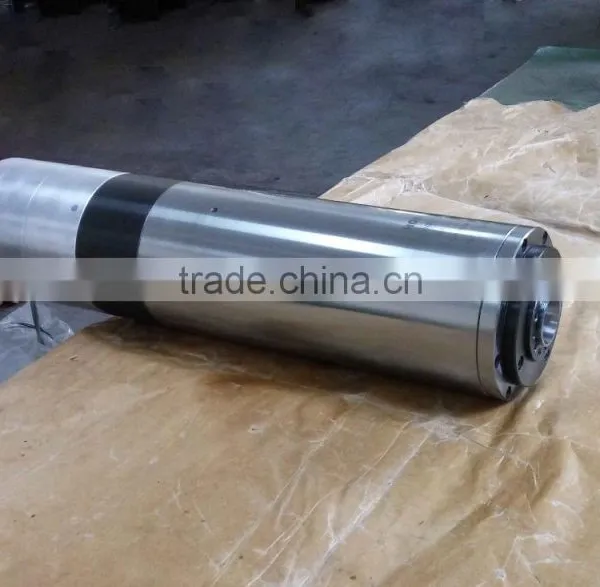

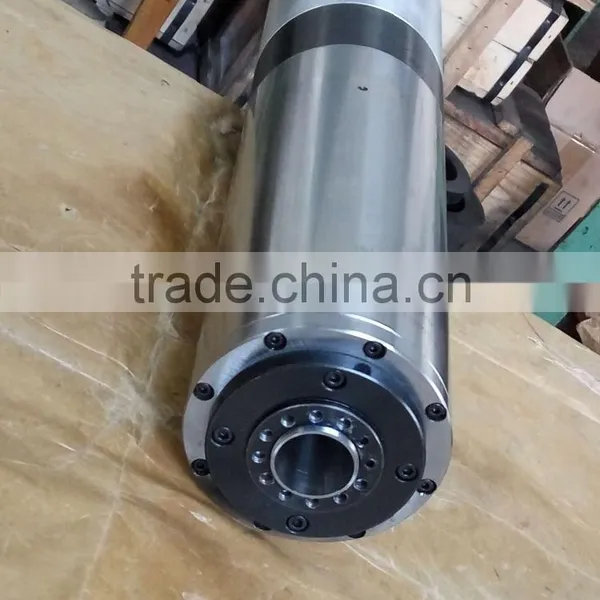

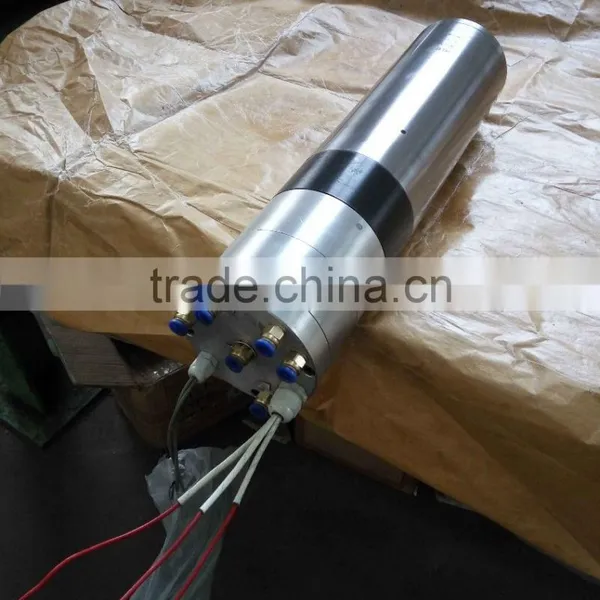

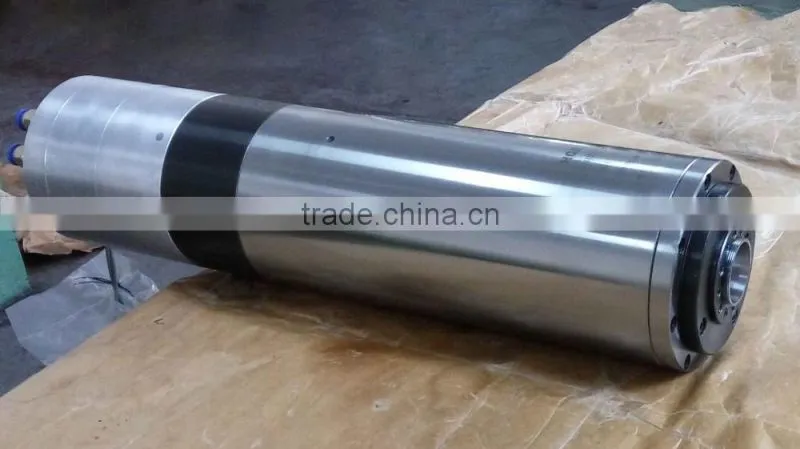

Product show



BT30, 24000RPM, 4KW, 350V, 120mm ATC machining center spindle motor



 BT30, 24000RPM, 4KW, 350V, 120mm ATC machining center spindle motorBT30, 24000RPM, 4KW, 350V, 120mm ATC machining center spindle motor



How to use



BT30, 24000RPM, 4KW, 350V, 120mm ATC machining center spindle motor
