Help CenterER25, 18000rpm, 3.2kw, 380v, 110mm Engraving Spindle Motor
Related Products
-
BT30 8000rpm 350v 2kw Milling Spindle MotorUS$ 2,300 - 3,000MOQ: 1 Piece -
ER25, 18000rpm, 3.2kw, 220v, 110mm Water Cooling Milling Spindle MotorUS$ 700 - 1,200MOQ: 1 Piece
-
ER20, 24000rpm, 3.2kw, 220v/380v, 120mm Engraving Spindle MotorUS$ 600 - 800MOQ: 1 Piece
-
ER16, 24000rpm, 1.5kw, 220v, 85mm Engraving Spindle MotorUS$ 300 - 500MOQ: 1 Piece
-
24000rpm, 3.7kw, 220v, 110mm Grinding Spindle MotorUS$ 500 - 1,000MOQ: 1 Piece
ER25, 18000rpm, 3.2kw, 380v, 110mm carving spindle motor
| Spindle Model | KD110Z18/3.2 |
| Installment Diameter | 110mm |
| Speed | 18000rpm |
| Rated Power | 3.2kw |
| Voltage | 380v |
| Current | 6.4A |
| Dimension | see the drawing |
| Cooling | water cooling |
| Collet | ER25 |
| Application | engraving, carving |
| Note | can customize as demands |
Spindle Merits:
1.High precision, high speed, high stability, tight structure, low noise, low vibration.
2.Wide application: turning, grinding, milling, carving, drilling and so on.
3.The step-less variable speed in the range of the rated running speed is available to suit the request of various conditions and loads.

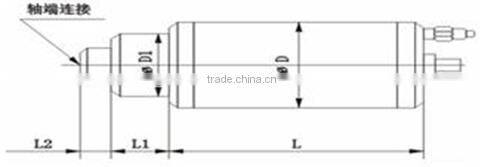

Sketch to show the dimensions

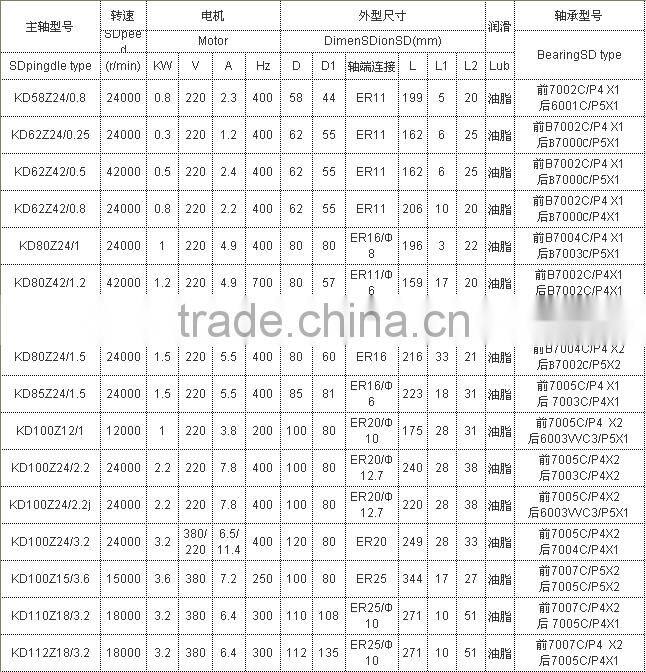

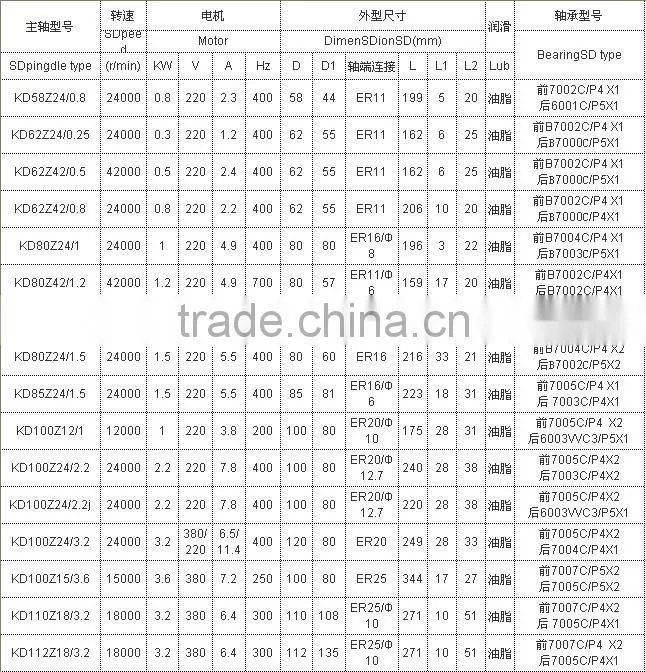

Technical data

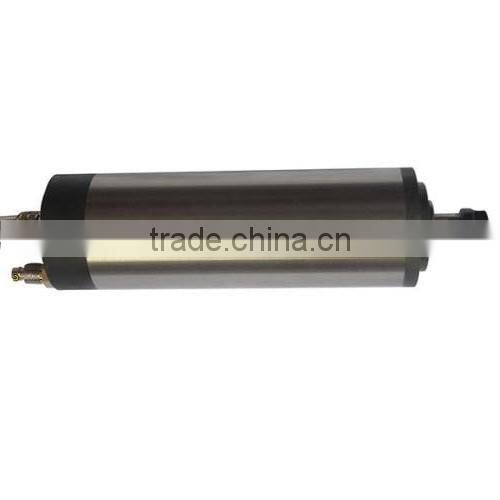

Product show
Working principle
Spindle is hollow rotor mounted directly on the shaft, stator fixed inside the spindle housing by cooling sleeve , forming a complete spindle unit and driven to run directly by rotor powered.
Structure
Spindle motor composes of spindle, housing body, built-in AC servo motor, auxiliary device, detection device.
Speed change is controlled by spindle driver mould, while temperature rise controlled by cooling device. Behind mounted measuring speed & angular displacement encoder, loose knife cylinder, rotary joint. Front inner taper and end face is used to install tool , tool grip. Middle have tool pull rod and tool clamping spring.
How to use
