Home > Manufacturing & Processing Machinery > Machine Tools > Machine Tools Accessories > BT40, 5.5kw Electric Motor Spindle for Milling and Carving Work
BT40, 5.5kw Electric Motor Spindle for Milling and Carving Work
US$ 700 - 1,500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
WF
Model Number:
FDX200-1.5/5.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BT30, 18000RPM, 5KW, 120MM ATC Machining Center Spindle MotorUS$ 2,200 - 2,300MOQ: 1 Piece -
BT40, 9000rpm, 10kw, 200mm Water Cooled Engraving SpindleUS$ 2,300 - 3,000MOQ: 1 Piece
-
BT40, 8000RPM, 10KW, 380V,200MM ATC Electric SpindleUS$ 2,000 - 2,800MOQ: 1 Piece
-
BT30, 24000RPM, 5KW, 350V Machining Center SpindleUS$ 2,200 - 2,300MOQ: 1 Piece
-
BT40, 1500rpm, 10kw, 380v, 200mm Water Cooling Engraving SpindleUS$ 2,000 - 3,000MOQ: 1 Piece
Place of Origin
Henan, China
Brand Name
WF
Model Number
FDX200-1.5/5.5
Application
Milling
Maximum Torque
demand
Drive
Motor
Operating Speed
1500rpm
Product Description

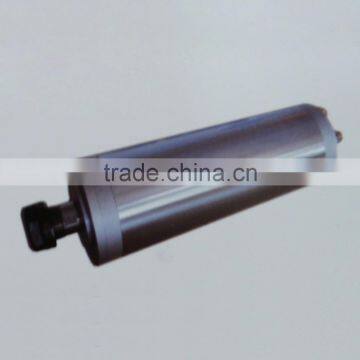

BT40, 5.5kw electric motor spindle for milling and carving work

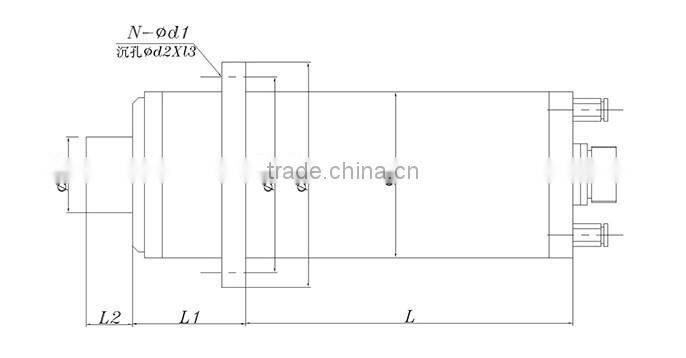

| Spindle type | Speed | Motor | Lub | Cool | Joint o f nose | Dimensions(mm) | Bearings type | |||||||||
| (r/min) | KW | V | A | HZ | D | D2 | D3 | D4 | L | L1 | L2 | |||||
| FDX200-1.5/5.5 | 1500 | 5.5 | 380 | 11 | 50 | Grease | Water | BT40 | 200 | 68 | 234 | 268 | 422 | 90 | 15 | 7014C/p4*3 7011C/p4*2 |
Spindle Merits:
1.High precision, high speed, high stability, tight structure, low noise, low vibration.
2.Wide application: turning, grinding, milling, carving, drilling and so on.
3.The step-less variable speed in the range of the rated running speed is available to suit the request of various conditions and loads.
Product Details:
