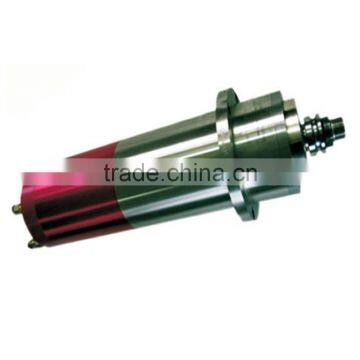

BT30, 18000RPM, 5KW, 120MM ATC Machining Center Spindle Motor
US$ 2,200 - 2,300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
WF
Model Number:
FBS1230-15/5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BT40, 9000rpm, 10kw, 200mm Water Cooled Engraving SpindleUS$ 2,300 - 3,000MOQ: 1 Piece -
BT40, 8000RPM, 10KW, 380V,200MM ATC Electric SpindleUS$ 2,000 - 2,800MOQ: 1 Piece
-
BT30, 24000RPM, 5KW, 350V Machining Center SpindleUS$ 2,200 - 2,300MOQ: 1 Piece
-
BT40, 1500rpm, 10kw, 380v, 200mm Water Cooling Engraving SpindleUS$ 2,000 - 3,000MOQ: 1 Piece
-
BT30, 24000RPM, 4.5KW, 350V ATC Type Spindle CNC Electric SpindleUS$ 2,000 - 2,100MOQ: 1 Piece
Place of Origin
Henan, China
Brand Name
WF
Model Number
FBS1230-15/5
Application
Milling
Maximum Torque
1.8NM
Drive
Motor
Operating Speed
18000rpm
Product Description
BT30, 18000rpm, 5kw, 350v ATC machining center spindle motor

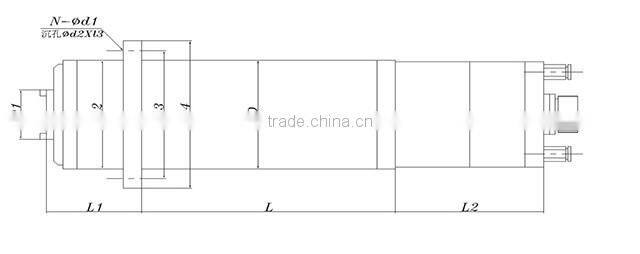

| Spindle type | Speed | Motor | Dimensions(mm) | Joint of nose | Bearings type | ||||||||||||
| (r/min) | KW | V | A | HZ | D | D1 | D2 | D3 | D4 | L | L1 | L2 | N-D1 | D2-L3 | |||
| FBS1230-18/5 | 18000 | 5 | 350 | 11 | 300 | 120 | 38 | 120 | 135 | 150 | 250 | 105 | 115 | 8-Φ7 | Φ11*7 | BT30 | B7008C/P4*2 7006C/p4*2 |
Spindle Merits:
1.High precision, high speed, high stability, tight structure, low noise, low vibration.
2.Wide application: turning, grinding, milling, carving, drilling and so on.
3.The step-less variable speed in the range of the rated running speed is available to suit the request of various conditions and loads.
FAQ
Now we can supply spindle motor and belt driven spindle according to customers' different requirements.Any interests,welcome to contact us!
