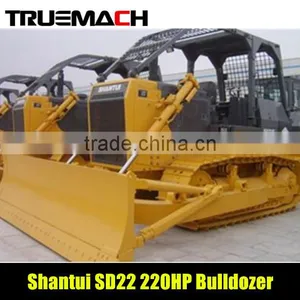

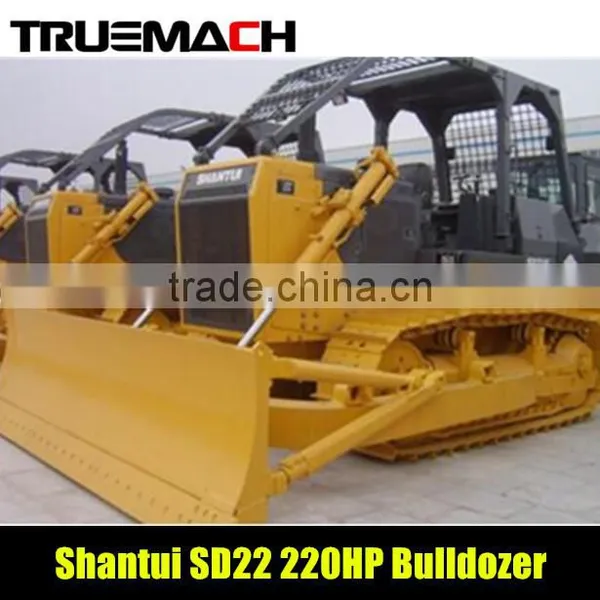

Hot Sale Shantui SD22 220HP Bulldozer
US$ 50,000 - 65,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Model Number:
SD22
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Shantui High Quality 230HP Crawler Bulldozer SD23 With CEUS$ 60,000 - 70,000MOQ: 1 Unit -
Shantui Brand Large 320HP Crawler Bulldozer SD32 for SaleUS$ 63,000 - 68,000MOQ: 1 Unit
-
Shantui 420HP Big Crawler Bulldozer SD42-3US$ 70,000 - 75,000MOQ: 1 Unit
-
Hot Sale Shantui 520HP Large Crawler Bulldozer SD52-5 for SaleUS$ 80,000 - 95,000MOQ: 1 Unit
-
Pengpu 28ton 220HP Crawler Bulldozer (PD220Y-1)US$ 75,000 - 90,000MOQ: 1 Unit
Place of Origin
Shandong, China
Brand Name
SHANTUI
Model Number
SD22
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
234000kg (without reaper)
Dimension(Long * Breadth * High)
5750*3725*3395mm
After-sales Service Provided
Overseas service center available
Product Description
Supply Cheap Shantui 220HP Bulldozer (SD22)
1. Operation weight: 23450kg
2. Engine: 220HP CUMMINS
3. Straight tilt blade, Semi-U blade, Angle blade
4. Single/three shank ripper
220HP big bulldozer Shantui SD22 dozers for sale by owner
1. Operation weight: 23450kg
2. Engine: 220HP@1800rpm CUMMINS NT855-C280S10
3. Straight tilt blade, Semi-U blade, Angle blade
4. Single/three shank ripper
5. Straight tilt blade dozing capacity: 6.4m3
6. Semi-U blade dozing capacity: 7.0m3
7. Angle blade dozing capacity: 4.7m3
The SD22 bulldozer is the new generation of the TY220. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation. The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system. With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.
Trade terms:
1. Shipping method: RORO or Bulk ship
2. Best delivery: In 7-20 working days after deposit
3. Payment terms: T/T(30% as deposit, 70% paid before delivery) or L/C
4. Packing: Nude, spare parts and tools into standard export cases
5. Guarantee: One year service after delivery.
Technical Parameters
1. Operation weight: 23450kg
2. Engine: 220HP CUMMINS
3. Straight tilt blade, Semi-U blade, Angle blade
4. Single/three shank ripper
220HP big bulldozer Shantui SD22 dozers for sale by owner
1. Operation weight: 23450kg
2. Engine: 220HP@1800rpm CUMMINS NT855-C280S10
3. Straight tilt blade, Semi-U blade, Angle blade
4. Single/three shank ripper
5. Straight tilt blade dozing capacity: 6.4m3
6. Semi-U blade dozing capacity: 7.0m3
7. Angle blade dozing capacity: 4.7m3
The SD22 bulldozer is the new generation of the TY220. It's equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation. The SD22 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system. With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.
Trade terms:
1. Shipping method: RORO or Bulk ship
2. Best delivery: In 7-20 working days after deposit
3. Payment terms: T/T(30% as deposit, 70% paid before delivery) or L/C
4. Packing: Nude, spare parts and tools into standard export cases
5. Guarantee: One year service after delivery.
Technical Parameters
| ITEM | UNIT | SD22 |
| L×W×H (Ripper not included) | mm | 5750×3725×3395 |
| Operating weight (Ripper not included) | t | 23.4 |
| Engine | - | Cummins |
| NT855-C280S10 | ||
| Rated power | kW/rpm | 162/1800 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt blade U-blade |
| Semi-U blade Angle blade | ||
| Blade width | mm | Straight tilt blade 3725×1315 |
| U blade 3800×1343 | ||
| Semi-U blade 3725×1374 | ||
| Angle blade 4365×1055 | ||
| Dozing capacity | m3 | Straight tilt blade 6.4 |
| U blade 7.5 | ||
| Semi-U blade 7.0 | ||
| Angle blade 4.7 | ||
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1210 |
| Ripper type | Single ripper Three-shank ripper | |
| Ripping depth of ripper | mm | Single ripper 695 |
| Three-shank ripper 666 | ||
| Lifting height of ripper | mm | Single ripper515 |
| Three-shank ripper 555 | ||
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 6 |
| Number of track shoes (each side) | - | 38 |
| Width of track shoe | mm | 560 |
| Track gauge | mm | 2000 |
| Ground length and ground pressure | mm/MPa | 2730-0.077 |
| Pitch | mm | 216 |
| Forward speed | km/h | 0-3.6 |
| 0-6.5 | ||
| 0-11.2 | ||
| Reverse speed | km/h | 0-4.3 |
| 0-7.7 | ||
| 0-13.2 |
