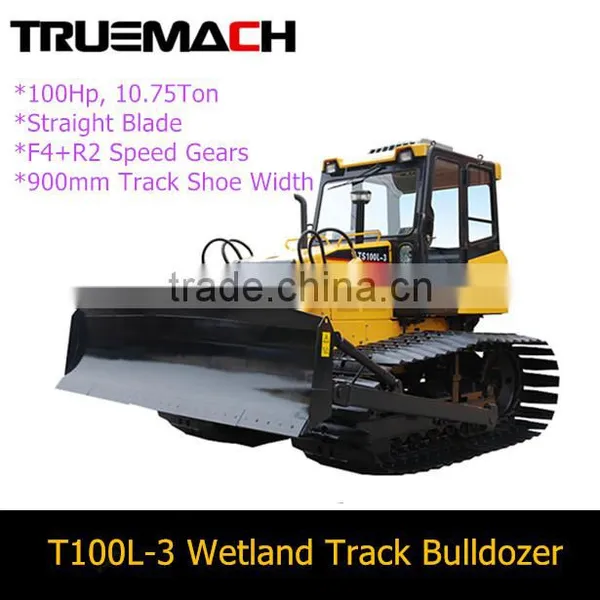

TS100L-3 100HP Wetland Type Track Bulldozer
Application:
Refuse land or similar wet earth land places.
TS100L-3 bulldozer features:
1.Engine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption, stronger torsion.
2.Master clutch: Choose dry, double piece and constant combining clutch, stronger torsion, simple and reliable.
3.Gearbox: Choose 4F+2R mechanical gearbox, simply operating, conveniently maintaining, reliably using.
4.Turning clutch: Choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintaining, Lightly and conveniently operating.
5.Transmission: Choose two classes, straight teeth, big modulus gear transmission, stronger carrying capacity, and higher reliability.
Work device: Many kinds of work device are chosen for users according to requirements.
6.Operating environment: Choose fully completed close,low noise cab.
7.Reliably using, conveniently maintaining, spare parts are easily purchased.
8.Reliably using is suitable for water and electricity projects, agricultural application, river and pond marsh, mud and loosing and soft environment.
Model |
Unit |
TS80-3 |
Total weight |
kg |
9000 |
Max. towing force |
kN |
69 |
Engine model |
/ |
LR4A3Z-22 |
Engine rated power/speed |
kw/r/min |
70/2200 |
Fuel consumption of engine |
g/km.h |
≤246 |
Forward travel speed |
km/h |
1st/2nd/3rd/4th: 2.4/3.5/6.1/10.4 |
Backward travel speed |
km/h |
1st/2nd: 4.9/8.9 |
Width of track shoes |
mm |
400 |
Land pressure |
kpa |
53 |
Overall L*W*H |
mm |
4200*2934*27890 |
Dozer W*H |
mm |
2934*930 |
Blade max lifting height |
mm |
7155 |
Blade max digging depth |
mm |
357 |
Twing equipment/scarifier(optional) |
/ |
fixed type |
We grants our clients a 12 month period or 2000 hours warranty for any machine purchased from us.
During the warranty period,In case the defect of material,design,making,assembly or workmanship has occurred with spare parts in normal operation according to the machine manual.
The defective part will be repaired or replaced free of charge at our discretion.
1) We help customer to choose suitable machine.If you visit us,we can give on-site technical consultation, driver training and
maintenance training in our factory.
2) We make driving test before leaving factory,That makes sure our client use the machine normally.customer will receive machine as “0”hour all new condition.
3) We'll supervising goods ship in to container & take photos for customer.Our powerful shipping agency will offer
best sea freight fee and responsible for detail treatment to goods.
4) Operation manual in English provided.If you need other language manual,we can provide you based on adding
little cost.
5) We prepare free spare parts in a toolbox for customer for emergency use.
6) We make record for every machine chassis no.and tracing them to get the latest information about the machine.
And give the best service timely.
7) Exclude the guarantee period, you can buy parts from us at moderate cost price. We promise support service for
the machine till it reject.
