LMS Customized galvanized steel roof sheet ridge cap roll forming machine
-
ridge cap roll forming machine
-
galvanized cap making machine
-
steel roof sheet ridge cap roll forming machine
Specifications
roof ridge cap roll former
1,Decoiler 1set
2,forming machine 1set
3,PLC control
4,high quality
roof ridge cap roof ridge cap roll former
roof ridge cap roll forming machine
INTRODUCTION

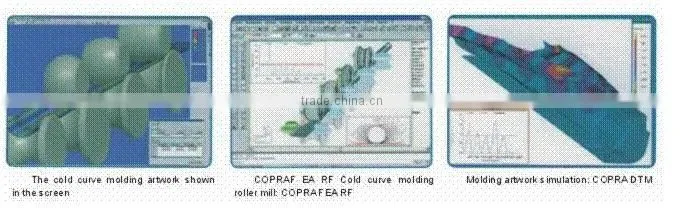

LMS roll forming machine which takes the COPRA, designing software for cold rolling production and applies for the first step of rolling design, calculation, molding technique simulation, blueprint optimization and roller design to rough molding management, digital machining and quality control. LMS applies for the COPRA in the whole process. The greatness of COPRA is combined with LMS's great experience of twenty years completely and this make LMS be with might double in production for clients. Realize your dream with CORPA.
Quotation: FOB Guangzhou, China.
Metal ridge cap roll forming machine(PLC control): will be confirmed after receiving your specification & profile drawing.
Payment term:40% down payment, and 60% balance payment before shipment by T/T.
Delivery time: 85 days after 40% down payment by T/T.
? TECHNICAL PARAMETER

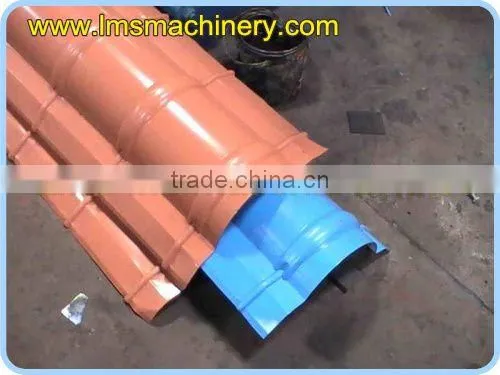

? METAL RIDGE CAP 285X120
(1) Suitable material: Pre-painted steel coil
(2) Material Thickness: 0.4 - 0.8 mm
(3) Profile width: 285 mm+/- 5mm
(4) Product Height: 120 mm+/- 2mm
(5) Profile: Please Refer the Attached Profile Drawing.
? Production Process:
material coil - decoiling - roll forming - hydraulic step-forming - hydraulic cutting-off - final profile (PLC controlling)
? One complete set of production line consist of following units:

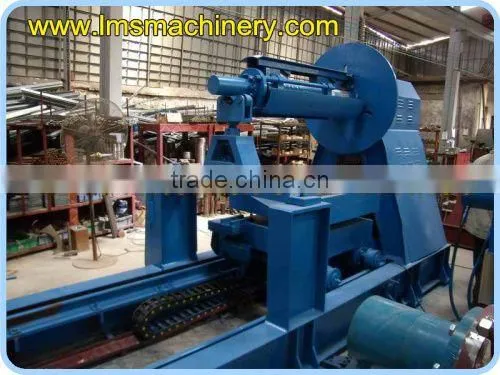

1. Hydraulic Decoiler 1 set
(1) Working Principle Pallets Expansion by Hydraulic
(2) Max. Decoiling Width 600 mm
(3) Max. Loading Capacity 3,000 kgs
(4) Coil's Outer Diameter 1,600 mm
(5) Coil's Inner Diameter 500 - 600 mm
(6) Adjustable Speed 0 - 20 RPM
(7) Motor 3 kw

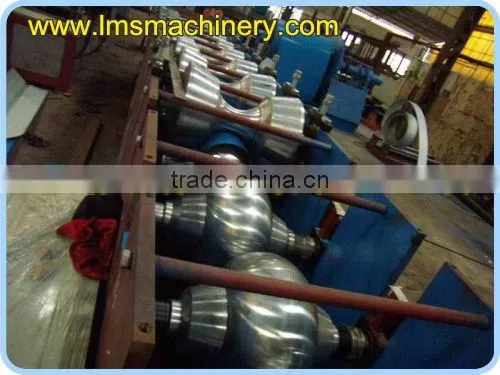

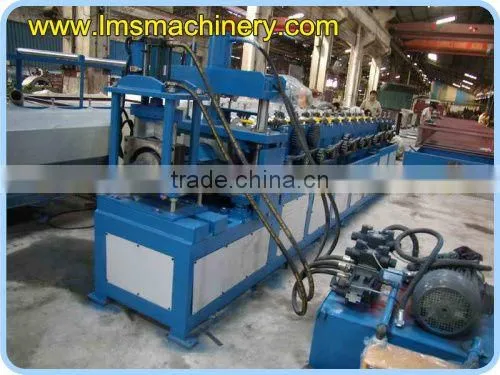

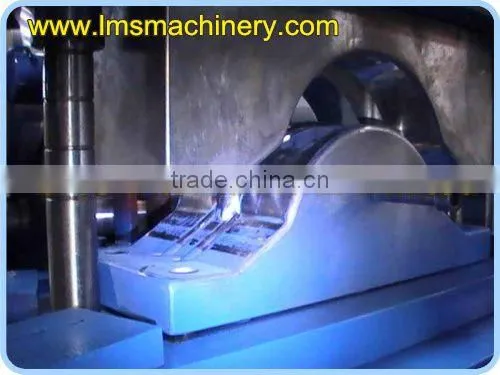

2. Roll forming machine 1 set

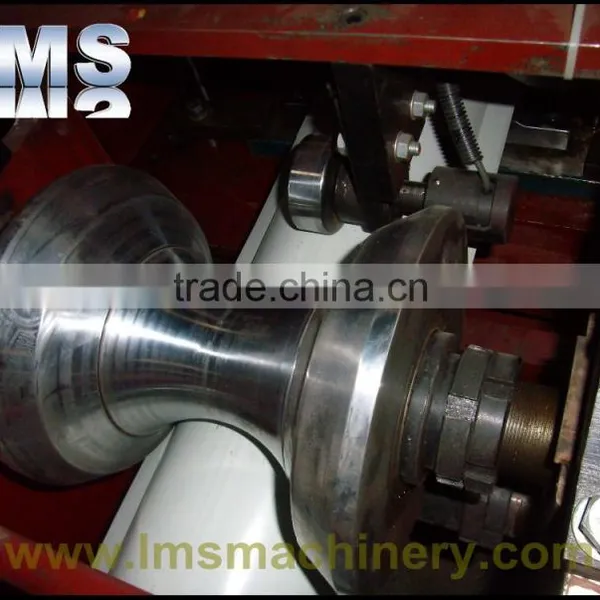

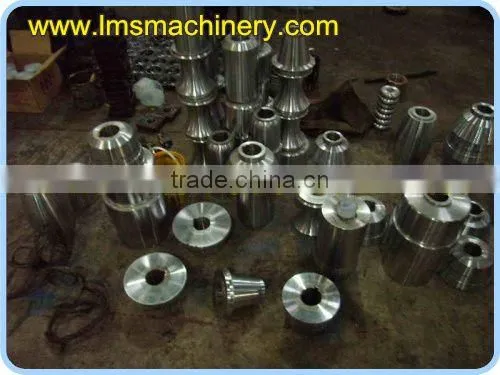

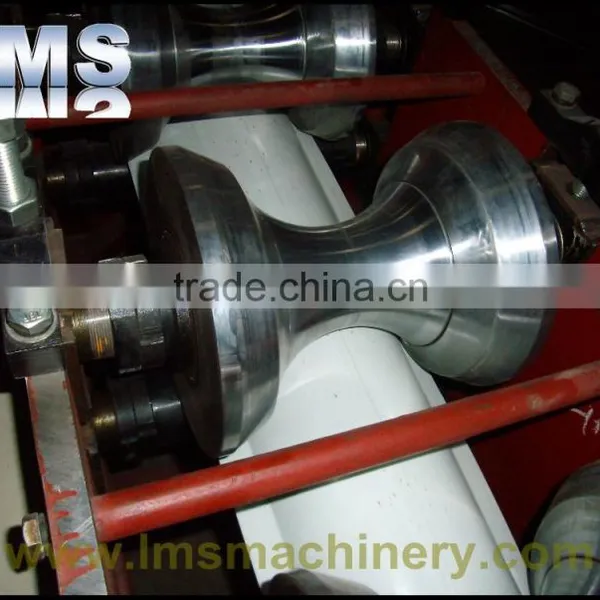

(1) Rollers Station 13 Nos.
(2) Rollers' Material 45# Steel
(3) Rollers' Surface Hard Chromed
(4) Main Shaft Diameter 60 mm
(5) Main Shaft Material 45# Steel
(6) Main Bearing 60209
(7) Plywood Thickness 22 mm
(8) AC Motor 4.0 kw
(9) Roll-Formed Speed 2 - 12 meters / minute

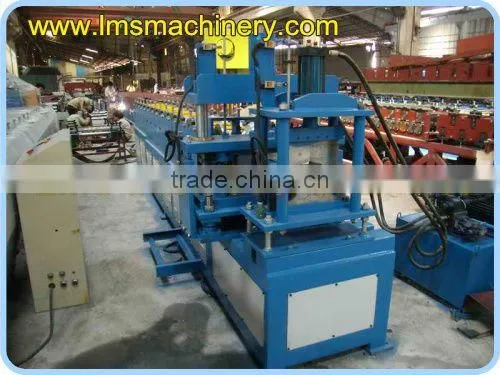

3. Hydraulic Cut-Off 1 set

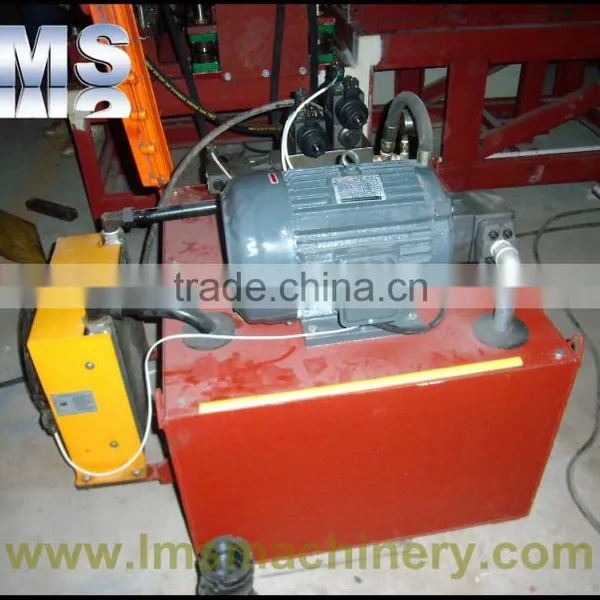

(1) Hydraulic Pump Stand 1 set
(2) Hydraulic Pump Stand Motor 4 kw
(3) Hydraulic Pump Stand Equipment Wind-Cooler

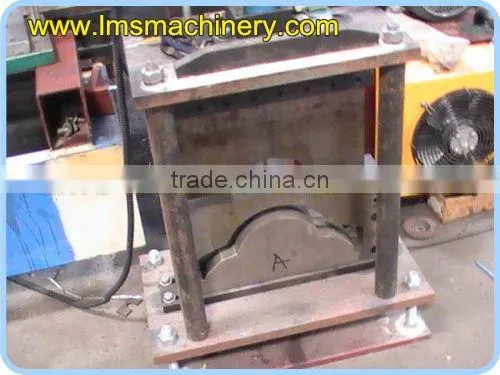

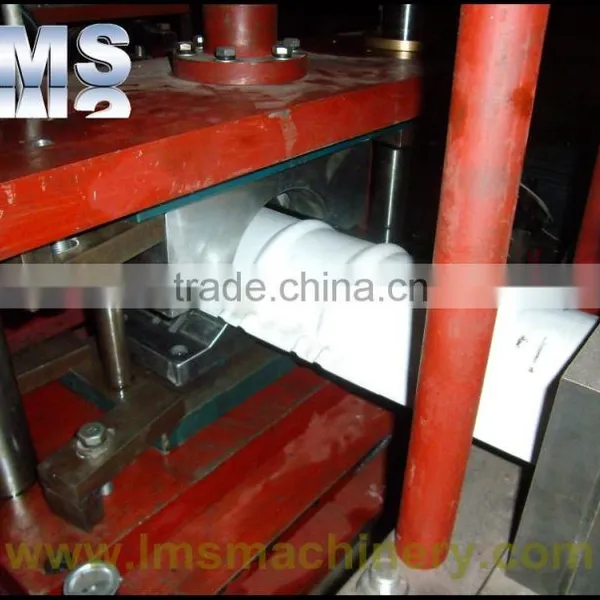

(4) Step-Forming Mould 1 set
(5) Cut-Off Blade 1 set
(6) Cut-Off Blade Material Gr12 Steel
(7) Hardness Treatment HRC 60 - 62
(8) Working Table Pressure 15 Tons
4. Simple Run-Out Table 1 Piece
(1) Structure Panel Structure, 3 meters length
(2) Material Welded by 50-Angle Channel Steel
(3) Quantity 1 piece

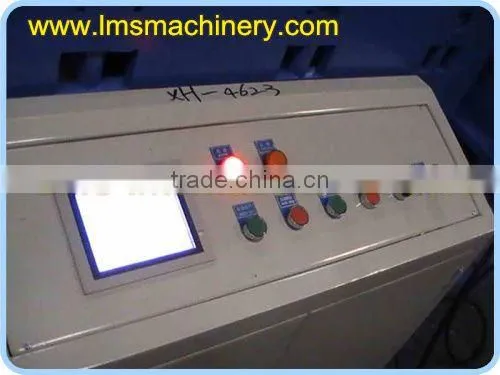

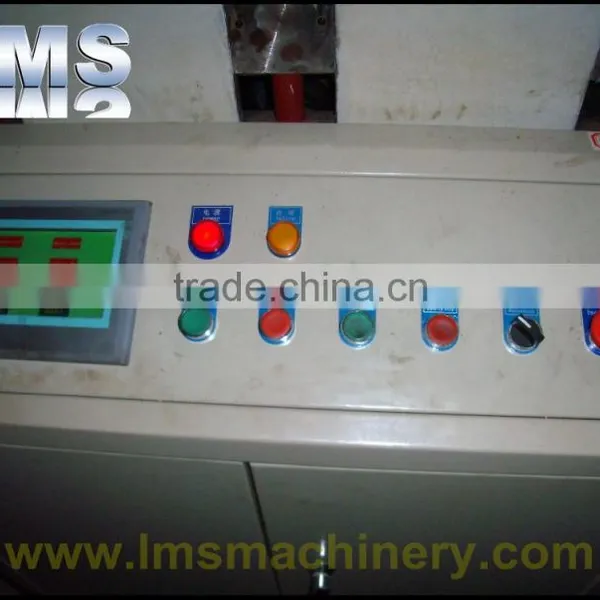

5. Electronic Control System
(1) PLC Mitsubishi, Japan

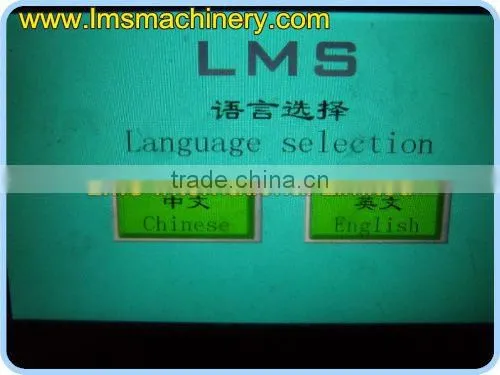

(2) Controller Touchable Screen
(3) Speed Adjuster Frequency Converter, Japan
(4) Main Electronic Components Schneider / Silin
(5) Electric Control Panel Full-Sealed, Ventilation Cooler
(6) Control System Power Overload Protection
(7) Electric Control Cabinet By Aviation Connection Plugs
(8) Cut-Off Step Machine Stopped, then Cut-Off
(9) Profile Length Control Encoder
(10) Length Tolerance ± 1.0 mm
(11) Power Supplier 380V, 50Hz, 3Phs
Certificates for our machines:
(1)Our engineers in the customer's workshop for INSTALLATION & TRAINING.
(2)Customers visiting our factory for machine inspection.
