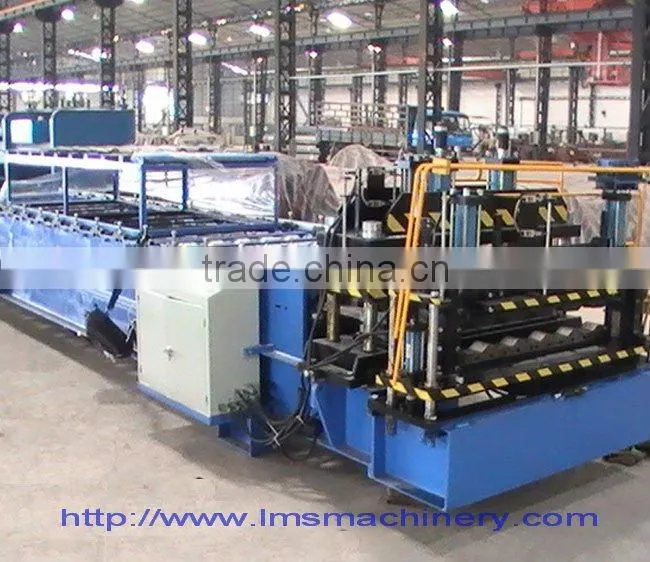

LMS Floor deck roll forming machine metal deck machine steel deck making machine
-
steel deck making machine
-
Floor deck roll forming machine
LMS Floor deck roll metal forming floor tile making machine
Main Specification:
Suitable Material G.I. Coil, PPGI Coil, G245
ii. Material Thickness 0.3 - 0.6 mm
iii. Material Width 1'220 mm
iv. Profile Width 1'000 mm
v. Profile Height 27 mm
vi. Profile Shape as drawing
II Production Process:
decoiling - manual shearing- roll-forming - hydraulic cutting - profile
III Main parameters:

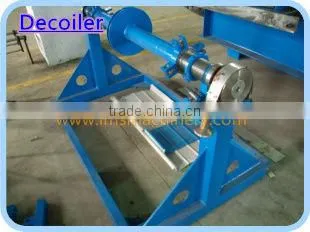

i Decoiler 1 set
(1) Working Principle MANUAL
(2) Max. Decoiling Width 1'250 mm
(3) Max. Loading Capacity 6000 kgs
(4) Coil's Outer Diameter Ø 1,200 mm
(5) Coil's Inner Diameter Ø 508 ± 30 mm

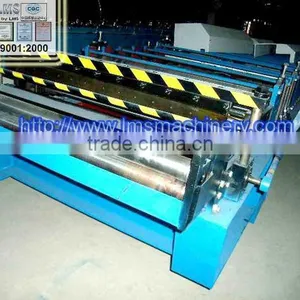

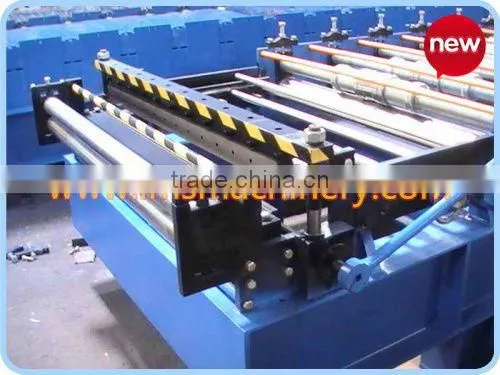

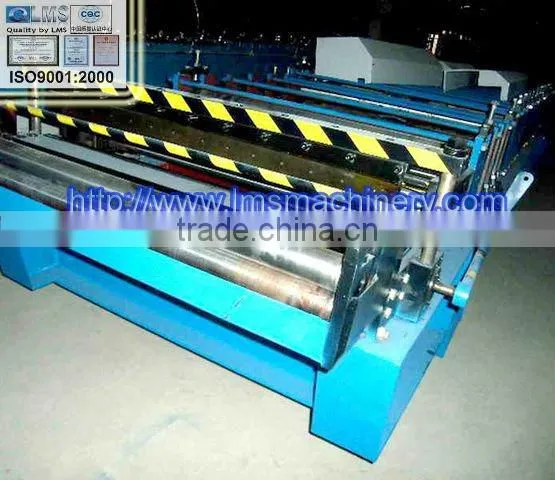

viii Manual Roller Shearing 1 set
(1) Material Cr12 Steel
(2) Material Surface under Heat Treatment
(3) Function: PLC is calculating profile length within roll forming. Once
material is required to change, PLC is calculating the length for total
quantity and remind operator,
production finishes and able to manual shearing material before roll forming
so as to change material for new production. It is the advanced function for
roof machine and good for production to save material, no waste.

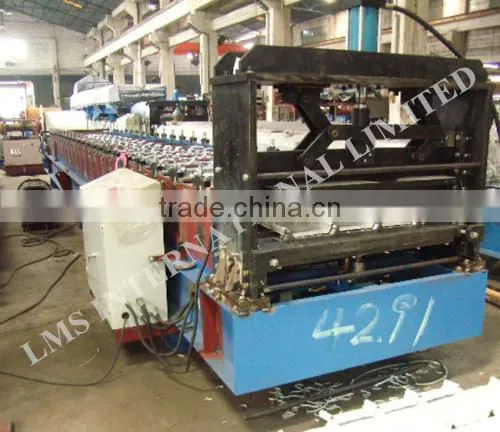

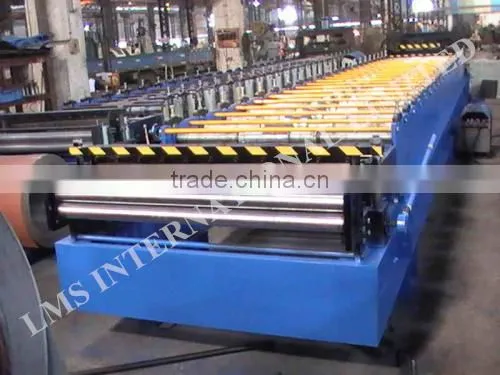

ix Main roll forming machine 1 set
(1) Roll Forming Stations 18 Nos.
(2) Roller's Material 40Cr
(3) Roller's Main Shaft Ø 75 mm, in 45# Carbon Steel,
Refined
(4) Machine Side-Wall Thickness 18 mm
(5) Main Bearing 6210
(6) Roll Forming Speed 8-12 meters / minute
(7) Main Motor 7.5 kw
(8) Power Transit by Gears & Chains
(9) Driven by Main Motor
(10)Speed Adjustment by Frequency Convertor

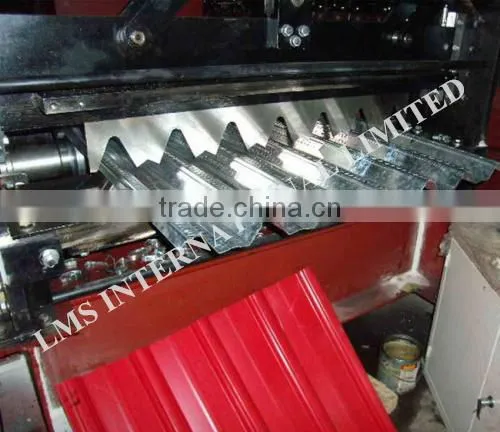

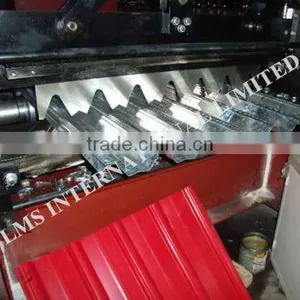

x Hydraulic Cut-Off Device 1 set
(1) Cutter Type Hydraulic Automatically Cut- Off Device
(2) Cutter Composition Motor, Hydraulic Pump
Stand,Electromagnetic Valve
(3) Cut-Off Mould 1 Set
(4) Cut-Off Mould Material Cr12, Heat Treatment
(5) Cut-Off Mould Material Surface Hardness HRC 60 - 62
(6) Cut-Off Working Pressure 10 MPa, Maximum
(7) Motor 3.0 kw

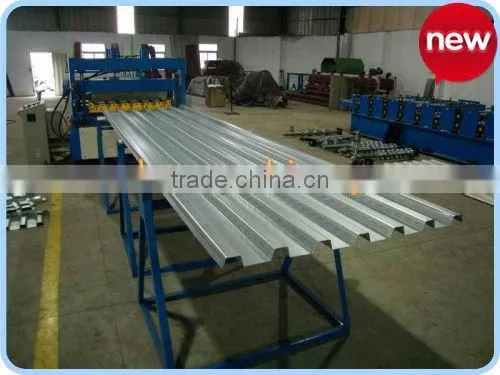

xi SIMPLE RUN OUT TABLE 1 set
(1) Length 6 meters

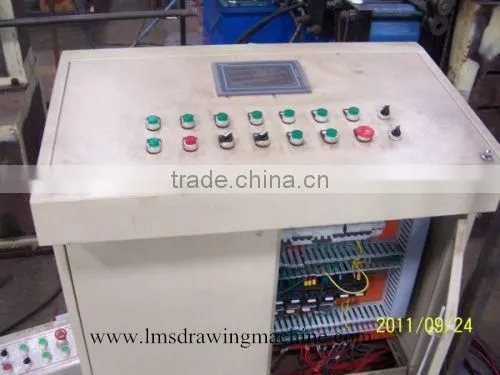

xii ELECTRONIC CONTROL SYSTEM
(1) Electronic Control System By PLC, Touchable
Screen,Frequency Convertor,
Encoder, etc.
(2) PLC Mitsubishi, Japan
(3) Touchable Screen Mitsubishi, Japan, 5.7"
(4) Electric elements Schneider, Japan
(5) Frequency Converter Mitsubishi, Japan, 5.5 kw
(6) Encoder Omron, Japan
(7) Power Supplier 380V, 50Hz, 3Phs
(8) Length Tolerance ≤ ± 2.0 mm
INSTALLATION, MAINTENANCE AND OPERATOR TRAINING
1. 1 year guarantee for spare parts is included in quotation.
2. The operator training in our factory is free.
3. The technician could be sent for installation and operator training at site, but the fee should be discussed separately.
