Specifications
PP Spun Filter Cartridge for Water PurificationTop quality products and best service

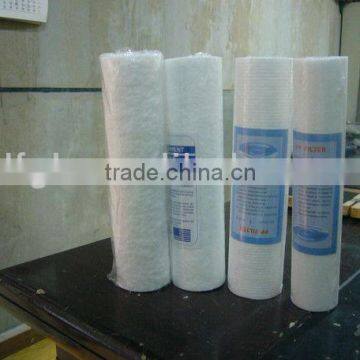

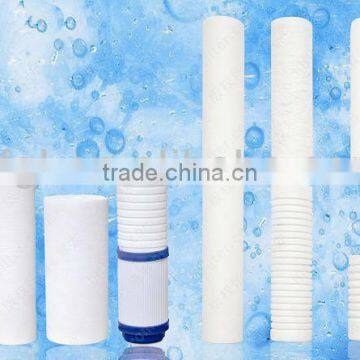

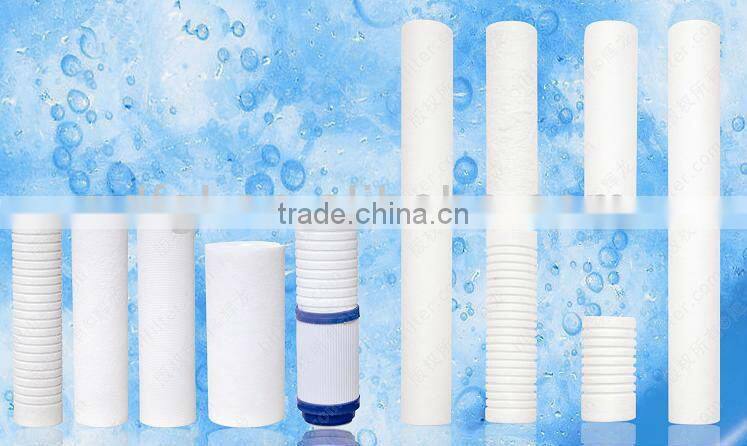

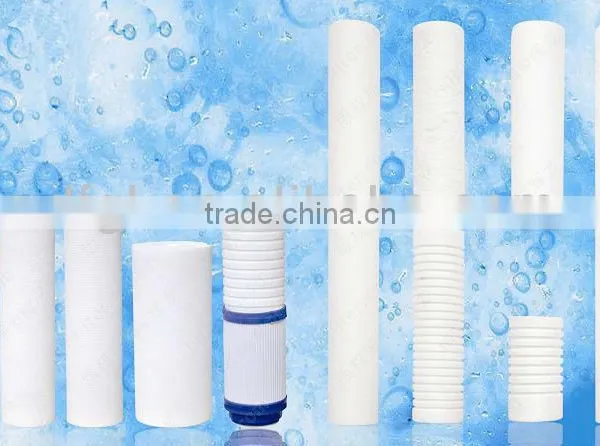

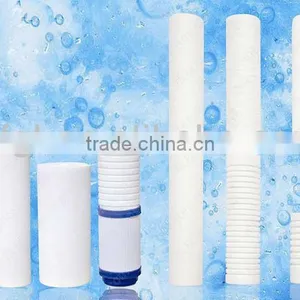

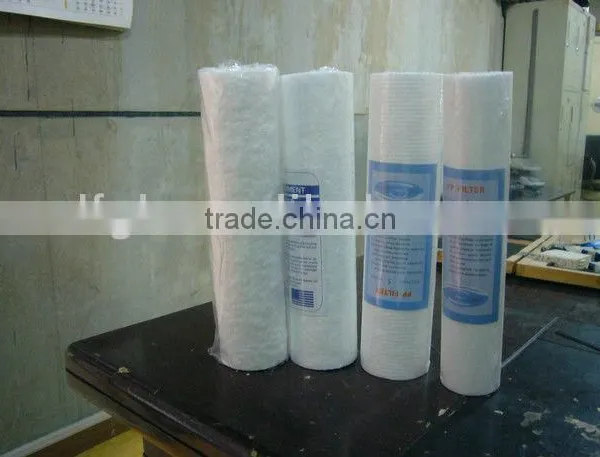

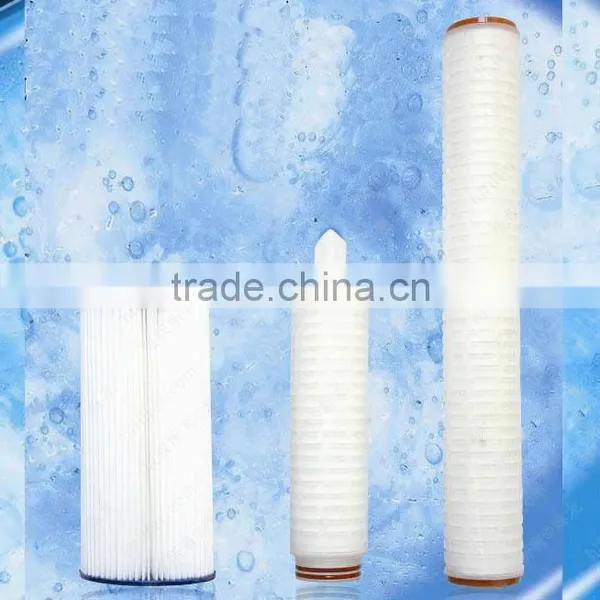

PP Spun Water Filter Cartridge for Water Purification
♦Introduction

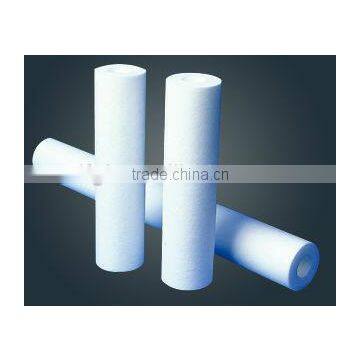

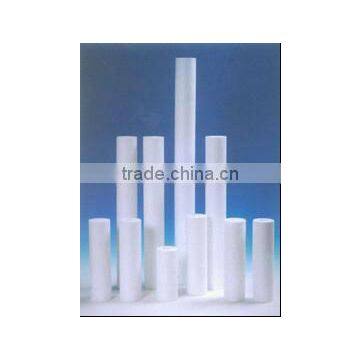

PP Melt Blown Filter Cartridge is fusing and intertwined of polypropylene resin without any chemical glues. The cartridges are glued at random to form 3D micro pore which will make the cartridge 3 layers with fine fibers in surface and coarse fibers and deep filtration. As the fiber and density form high filtration rating and pollutants holding capacity on diameter of filter cartridge, low pressure drop, gradual changing deep filtration structure with loose outside and close inner, strong pollutants holding capacity, it can remove contaminant effectively,
such as suspended substance, particulate and rust, providing efficient filtration and long service life.
PP Melt Blown Filter Cartridge | |||
Nominal rating (µm) | Initial rating (µm) | Particle size (µm) | Water Flow rate (L/Min) |
1 | 5-15 | 10 | 15 |
3 | 15-20 | 20 | 20 |
5 | 20-30 | 25 | 25 |
10 | 30-40 | 35 | 30 |
20 | 35-40 | 45 | 40 |
30 | 40-60 | 55 | 45 |
50 | 50-70 | 65 | 50 |
100 | 100-130 | 120 | 60 |
♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly.
♦Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company’s filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
♦The testing centre can take 7 tests of hydraulic filter performance evaluation, they are as follows:
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
Honour of DFFILTRI
♦ China's Quality Recognized Top Ten Well-known Filter Brand ♦ 19 years OEM Manufacturing Experience
♦ Testing Center-The Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation Industry Association
|
| Announcement
Dear customers, Recently some companies are illegally embezzling the photos of our product, office building and workshop, those who seriously infringe the right and interests to our reputation, honor, self image, ownership, please keep in mind the sign of the DFFILTRI brand and the image of our company, and be ware of imitations and plagiarism.
We are really sorry to causing any inconvenience to you and your company.
Plagiarist attention, Please stop the infringing act immediately; otherwise we will investigate the law liability through legal channels.
DFFILTER TECHNOLGOY CO., LTD. |
