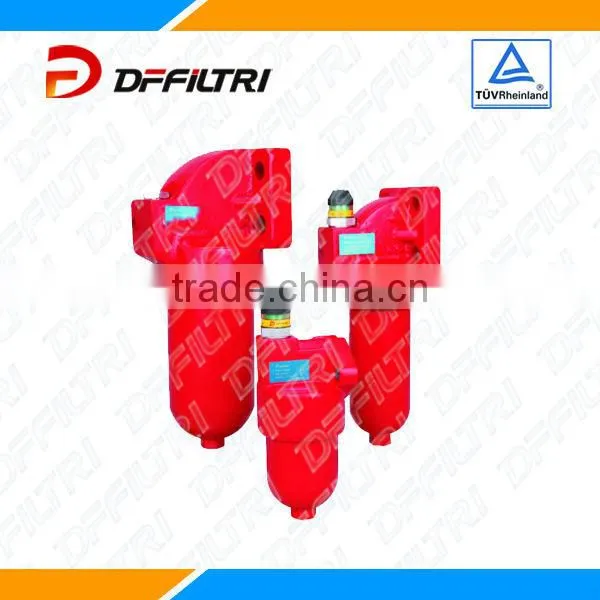

                   HYDAC DFB...MA/DFB...QE High Pressure Filter Replacement/High Strength Carbon Steel Skeleton Filter Element

1. Product introduction

DFB... MA/DFB... QE series filters can be directly installed on system valve block, especially suitable for automatic control system and the servo system (can replace hydac DF...MA/DF... QE Series).



2. Product characteristics

Filter basic construction

DFB...MA/DFB...QE series filter consists of the cover and the spin-on housing.

The DFB...QE filter bowl with the flow rate above 660 liter is integral type; below 660 is separated structure.



2.1 Housing material

Filter cover: Ductile cast iron
Filter bowl: Carbon steel



2.2 Seals

Perbunan (=NBR) (-30~+120°C);  Viton=FPM(-20~+200°C)

2.3 Filter element

Filter medium material

High strength carbon steel skeleton



2.4 Optional accessories

Without clogging indicator,with steel plug

Visual clogging indicator:CM-03

Electrical clogging indicator:CM-05

Combined visual /electrical clogging indicator:CM-08

Bypass valve(setting 6 bar)



2.5 Type of connection (choose according to filter model)

DFB...QE series filters installed with four holes
DFB...MA series filters installed with two holes

The top and bottom direction of inlet/outlet port  optional

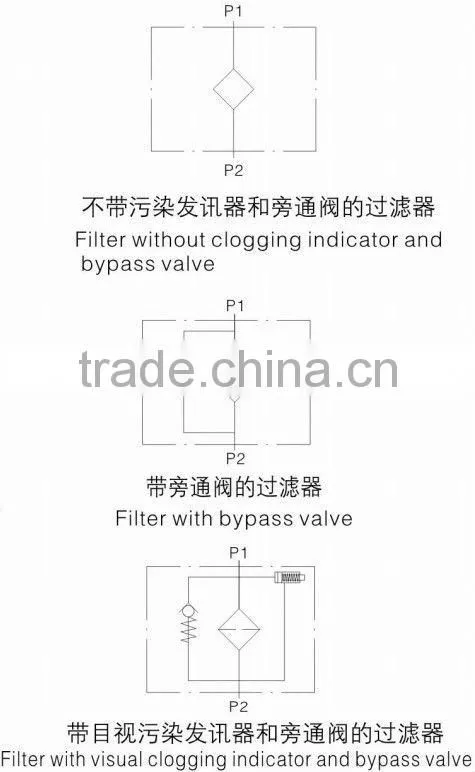

2.6 Symbols



3. Type selection and technical data

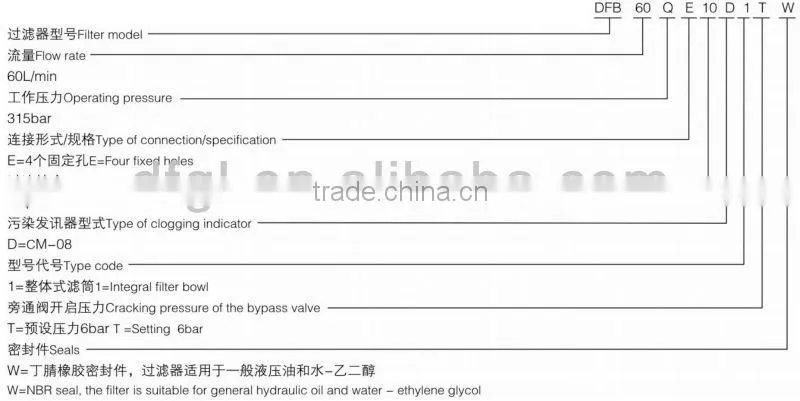

3.1 Order example



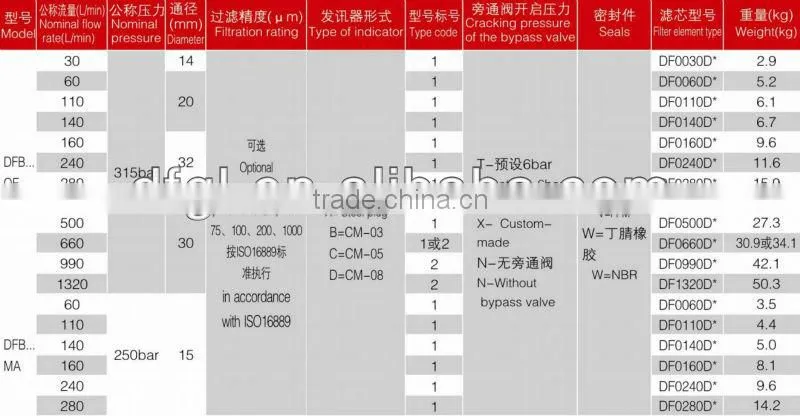

3.2 Technical Data

    Note: Type code  1.Normal inlet/outlet port(Integral filter bowl)          2.Normal inlet/outlet port(Separated filter bowl)
                                   DFB...QE series 160.240.280 can choose outlet is on the top of inlet, /-0AI is added after the model.

                                 * represents filtration rating.

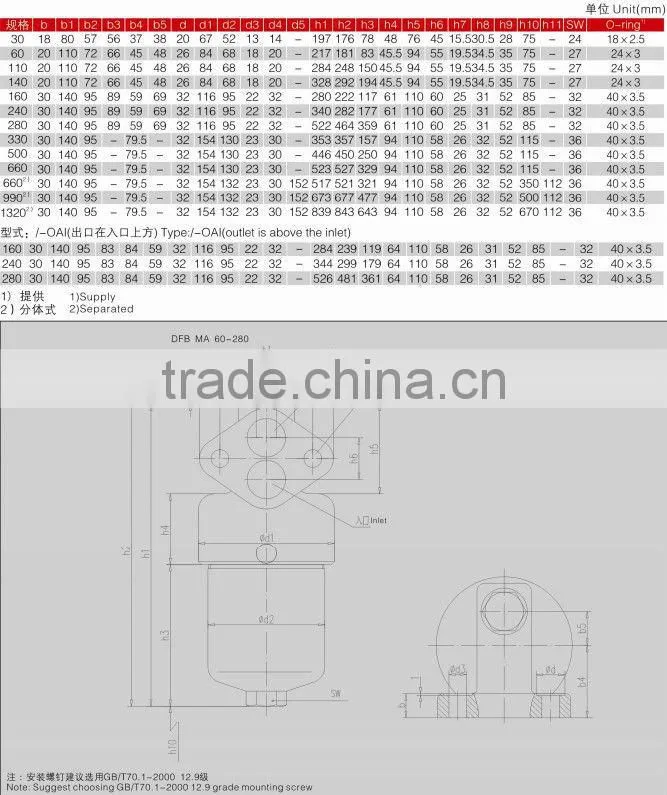

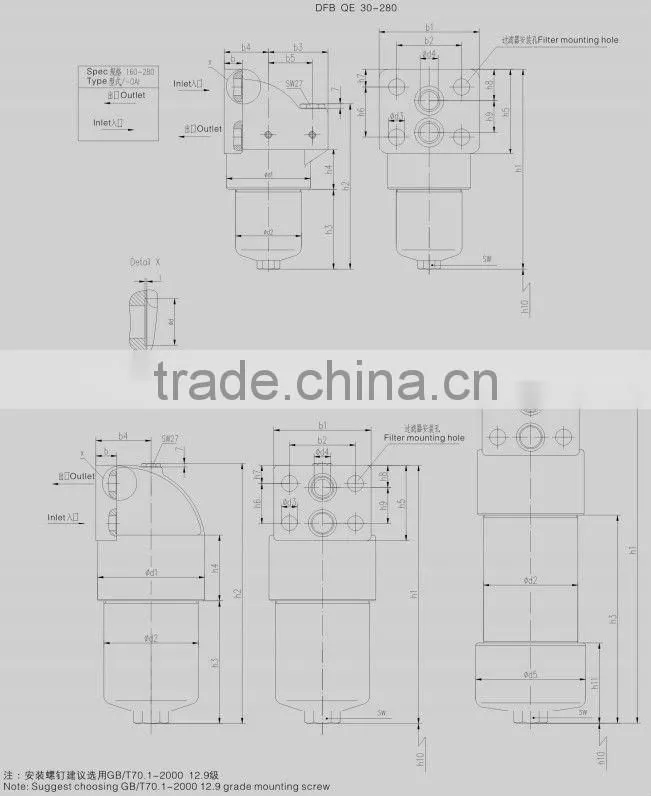

4. Mounting Size



5.  Product characteristic curves

The total filter assembly pressure drop is the sum of housing and element pressure drop,filter selection calculated as per the following curves.

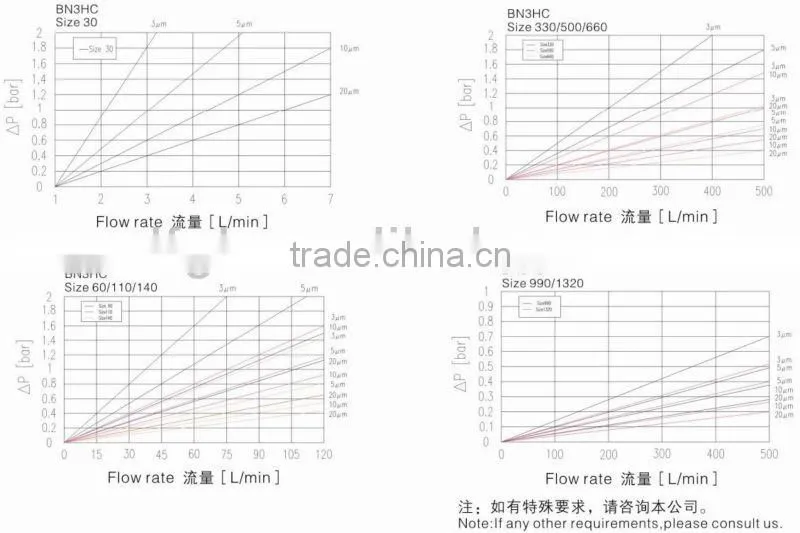

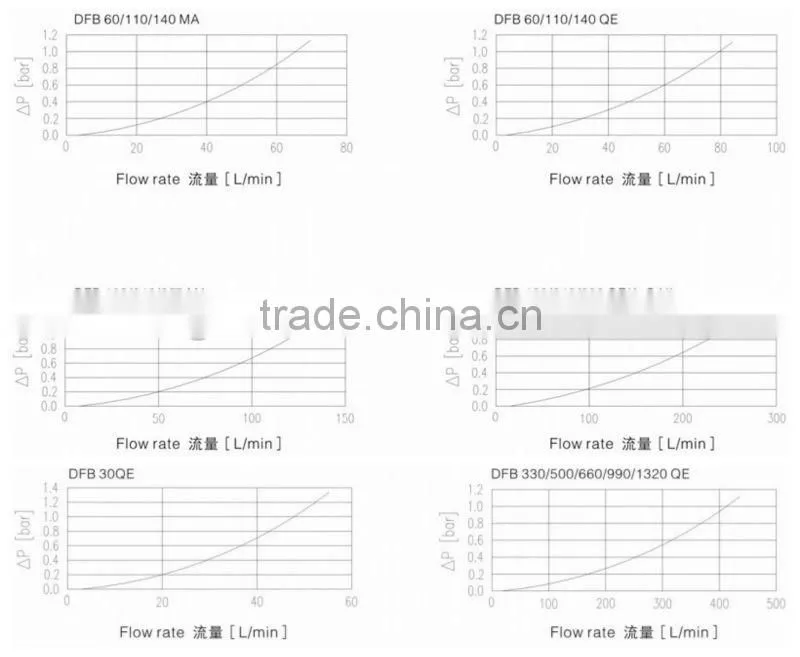

5.1 Housing pressure drop / flow rate characteristic curves

Housing pressure drop /flow rate characteristic curves are according to ISO3968, and suitable for the mineral oil with density 0.86 kg/dm³ and kinematic viscosity 30 mm²/s.

5.2 Differential pressure / flow characteristic curves of filter element

The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm²/s. Differential pressure and viscosity is proportional.
