Filter Manufacuter with 19 years' Experience Exported BRF High pressure filter
1. Product introduction
BRF series filters can be installed on flow-frequent-switching components, so as to solve the problem that the oil only can flow one way direction as well as filtering; so that system piping is simplified and the space is saved. The series filter adopts glass fiber filter material, with high filtration rating, big flow rate capacity, low original pressure loss, large contamination retention capacity etc. advantages; and equipped with pressure difference indicator, when the element is clogged to oil inlet/outlet and pressure difference reaches setting value of the indicator, the signal is sent out, the filter element should be cleaned or replaced.
2. Product characteristics
Filter basic construction
BRF series filter is composed of filter top cover and spin-on housing.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (= NBR) (-30~ +120°C); Viton (= FPM) (-20~ +200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator:CS-V
2.5 Type of connection (chosen as per filter models)
Flanged connection
2.6 Symbols
3. Type selection and technical data

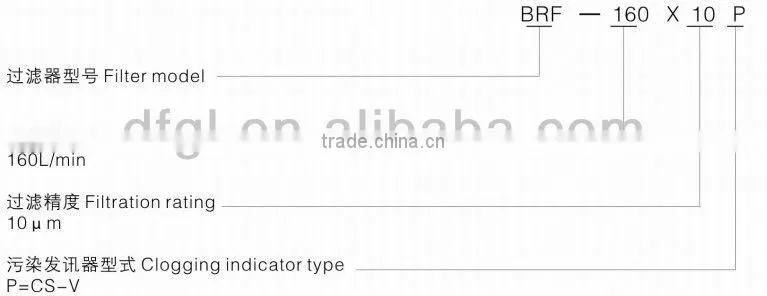

3.1 Order example
3.2 Technical Data
