Specifications
PLF RESSURE LINE FILTER1.It has high oil-passing capacity, low initial pressure loss
fessinal filter manufacture
PLF RESSURE LINE FILTER SERIES(optional 3, 5, 10,20,30...Filtration rating)/professinal filter manufacture
1. Product introduction
PLF series filter is installed on the different pressure lines of the hydraulic system; it has high oil-passing capacity, low initial pressure loss, high dirt-holding capacity and so on, which can meet the various requirements from the customers.
2. Product characteristics
Filter basic construction
PLF series filter is composed of filter top cover and spin-on housing. Filter top cover is integral type, according to the customer requirements, the flow direction and the mounting hole position can be custom-made.
2.1 Housing material
Filter top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (= NBR) (-30~+120°C)
Viton (= FPM)(-20~+200°C)
2.3 Filter element
Filter medium material(refer to P142)
High strength carbon steel skeleton
2.4 Optional accessories
Electrical clogging indicator:CS-V
Bypass valve(Setting 6bar )
2.5 Type of connection (Chosen as per filter type)
Metric thread connection
Inch thread connection
Flanged connection
2.6 Symbols
3. Type selection and technical data
3.1 Order example
3.2 Technical data
Note: 1)The sealing material is NBR, if FPM is needed, please contact us;2)* represents filtration rating.3)If inch
threaded connection is needed, please contact us;
4. Mounting size

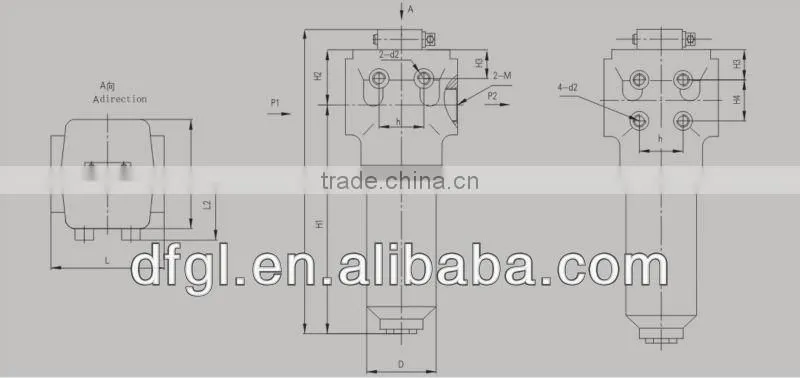

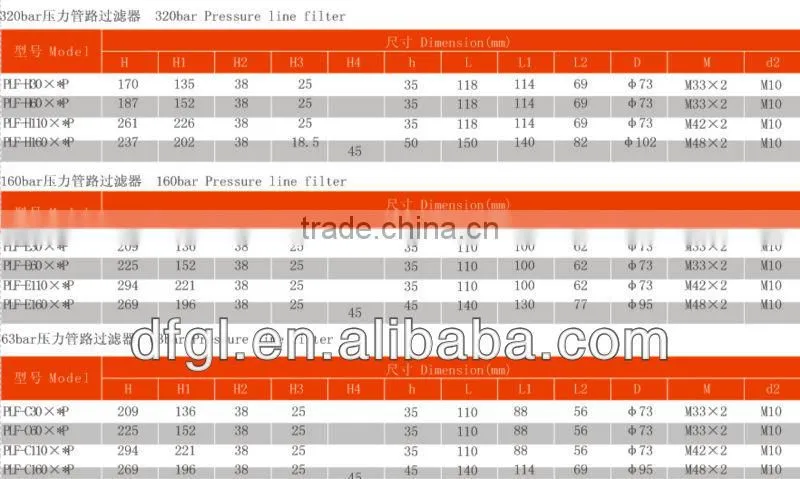

4.1 Threaded connection
Note:Filter head is integral type,flow direction and mounting hole position can be custom-made,for
the details please consult us;* represents filtration rating.

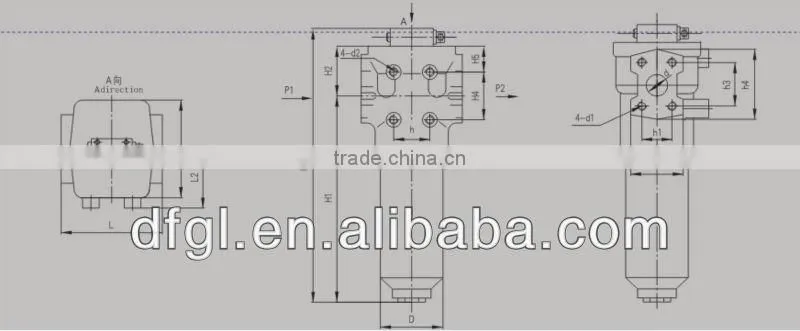

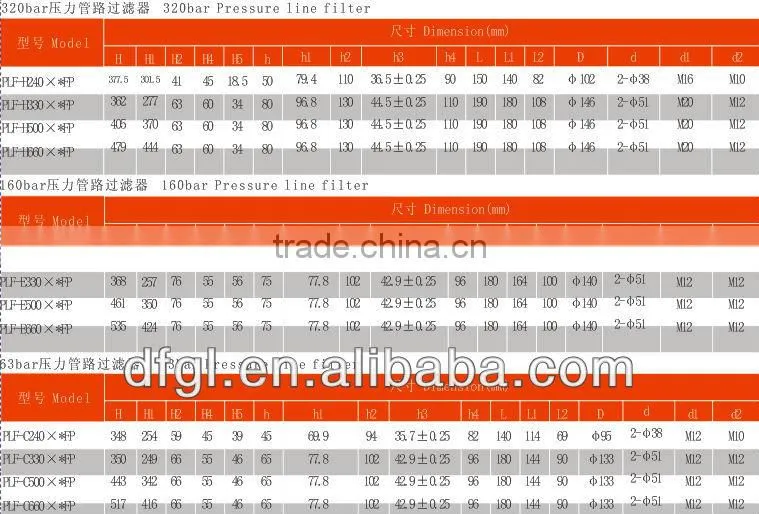

4.2 Flanged connection
Nte:Filter head is integral type,flow direction and mounting hole position cap,be custom-made,for
the details please consult us;* represents filtration rating..

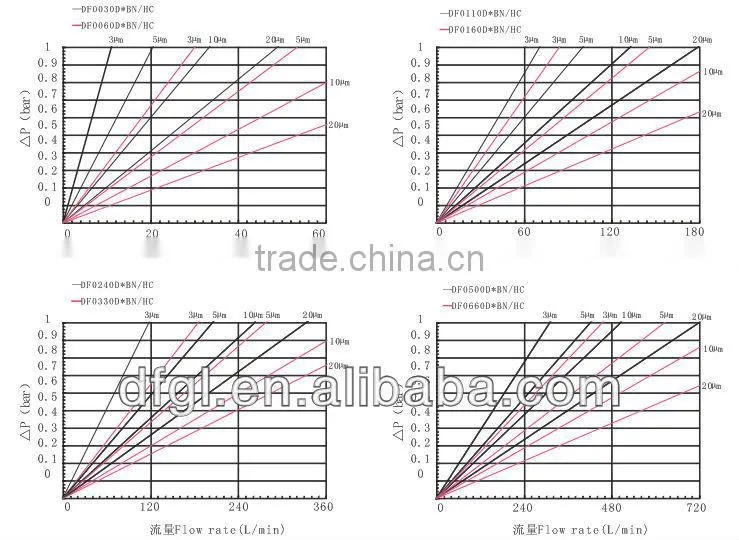

5 Product characteristic curves
Differential pressure/flow characteristic curves of filter element
The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm2/s.Differential pressure and viscosity is proportional.

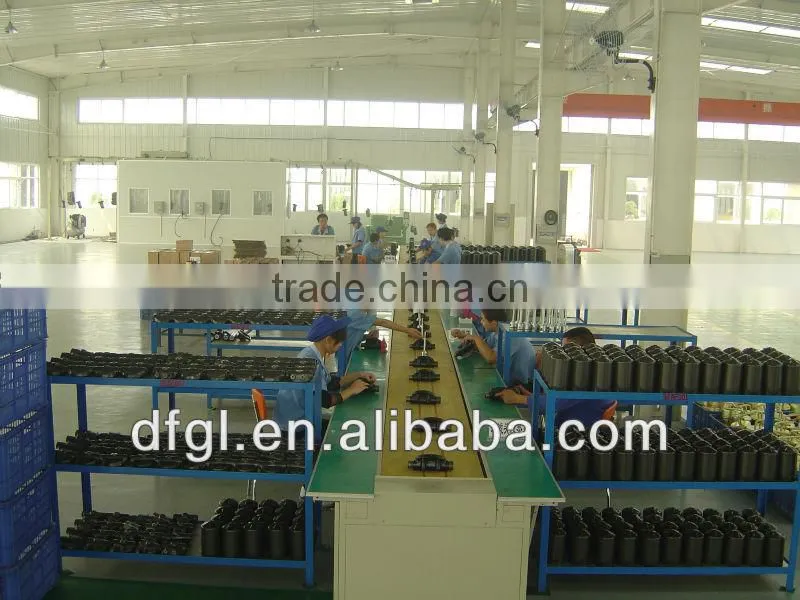

About us:
♦ China's Quality Recognized Top Ten Well-known Filter Brand

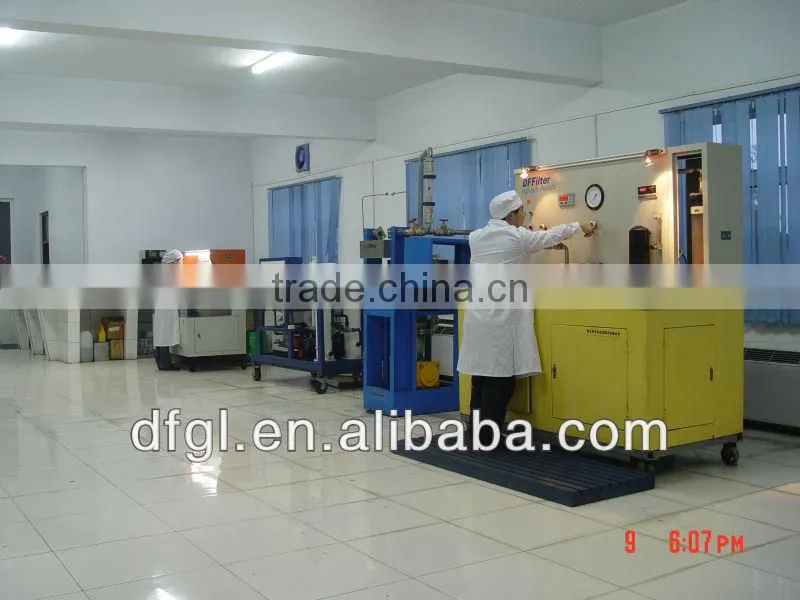

♦Testing CenterThe Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation
Note:If any other requirements,please consult us.
we own world advanced production equipment and produce high-quality products of
international standard with brand-new industrial conceptand strong technical forces.
We firmly believe we will become your trusted partner.
