ZU-H, QU-H Hydraulic High Pressure Filter/Hydraulic Oil Line Filter/Filter Medium Material High Strength Carbon Steel

Specifications

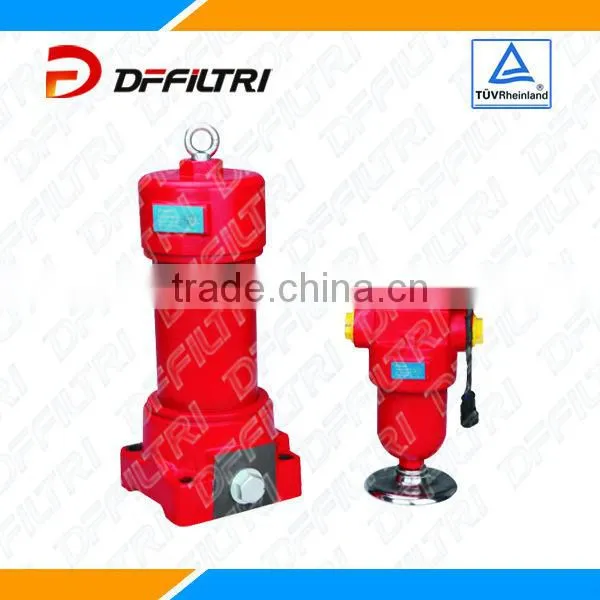

ZU-H, QU-H High Pressure line Oil Filter
1. Easy install
2. 100% tested
3. Long Service Life

                      ZU-H, QU-H Hydraulic High Pressure Filter/Hydraulic Oil Line Filter/Filter Medium Material High Strength Carbon Steel

1. Product introduction

ZU-H, QU-H series filters are installed on pressure pipeline of the hydraulic system, there are these characteristics: high pressure resistance, high accuracy & multi-function etc., which can meet various requirements from the customer through installing different components. Series filter adopts glass fiber filter material, with high filtration rating, big flow rate capacity, low original pressure loss, large contamination retention capacity etc. advantages.



2. Product characteristics

Filter basic construction

ZU-H, QU-H filter is composed of the top cover and spin-on housing.



2.1 Housing material

Top cover material: Ductile cast iron
Filter bowl material: Carbon steel



2.2 Seals

Perbunan (=NBR) (-30~+120°C);  Viton=FPM(-20~+200°C)

 2.3 Filter element

Filter medium material

High strength carbon steel skeleton



2.4 Optional accessories

Electric clogging indicator: CS-V
By-pass valve (Setting 6bar)



2.5 Type of connection (chosen according to the filter type)

Metric thread connection; Inch threaded connection; Flanged connection



2.6 Symbols



3. Type selection and technical data

3.1 Order example



3.2 Technical Data



 Note: 1) if inch threaded connection is needed, please contact us;
           2) * represents filtration ratin

4. Mounting Size

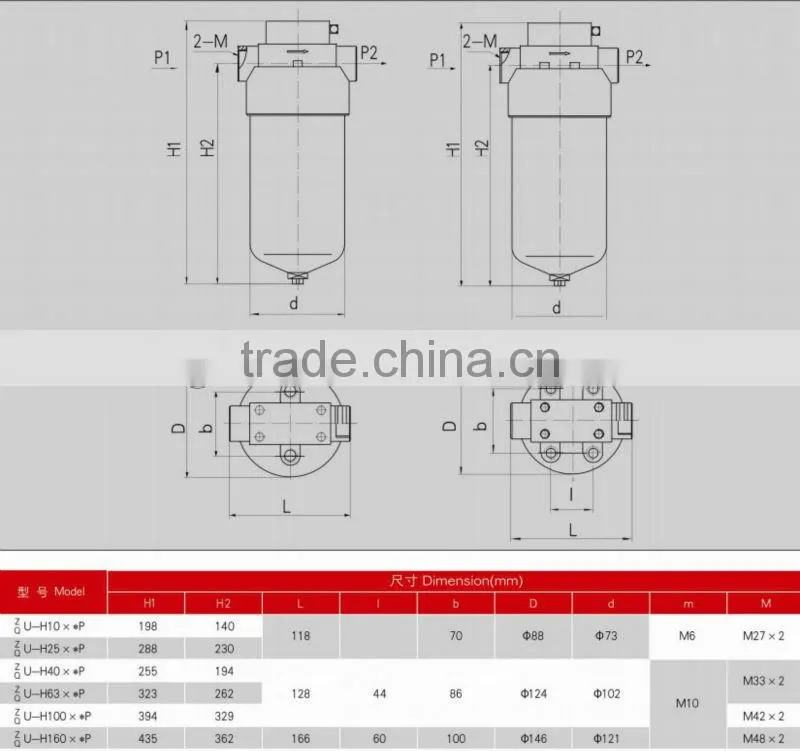

4.1 Threaded connection

Note: When flow rate is 10L/min, oil outlet thread should be chosen M18×1.5; when flow rate is 25L/min, outlet thread should be chosen M22×1.5,

               which belong to the special ordering, the model should be ZUT-H10×*P;ZUT-H25×*P;* represents filtration rating.

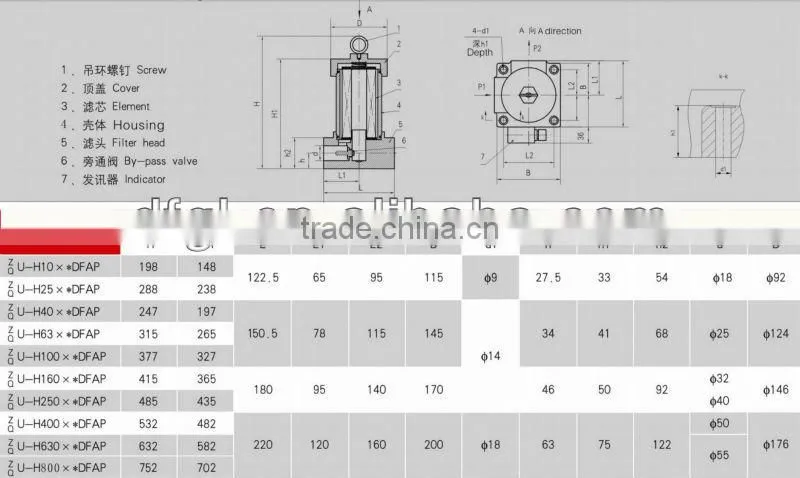

4.2 Flangede connection

     Note: * represents filtration rating.

4.3 Connection flange is processed as per the folowing dimension:

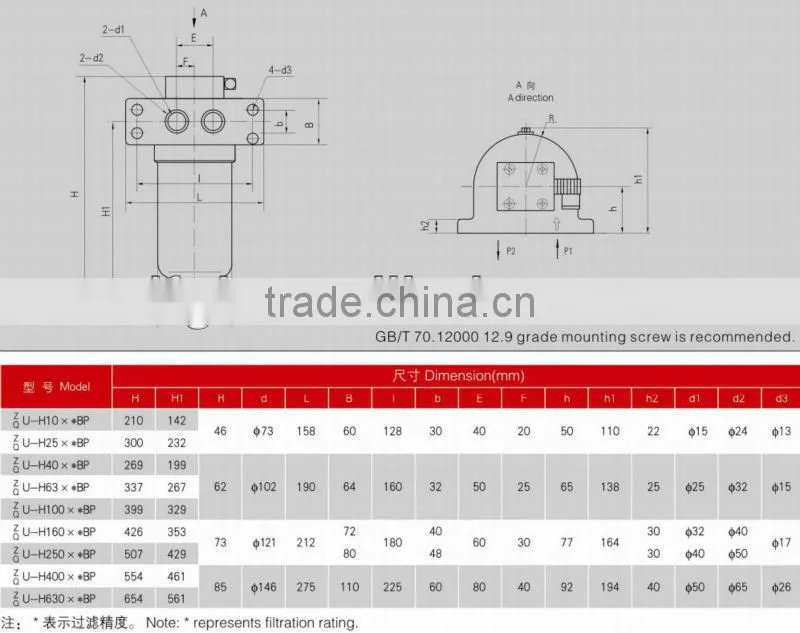

4.4 Plated connection

4.5 Inverted tubular connection

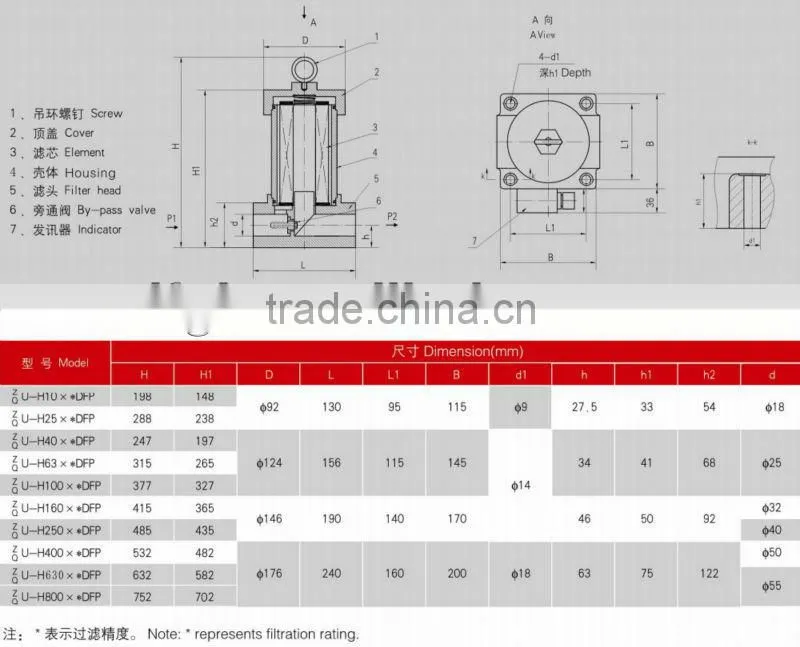

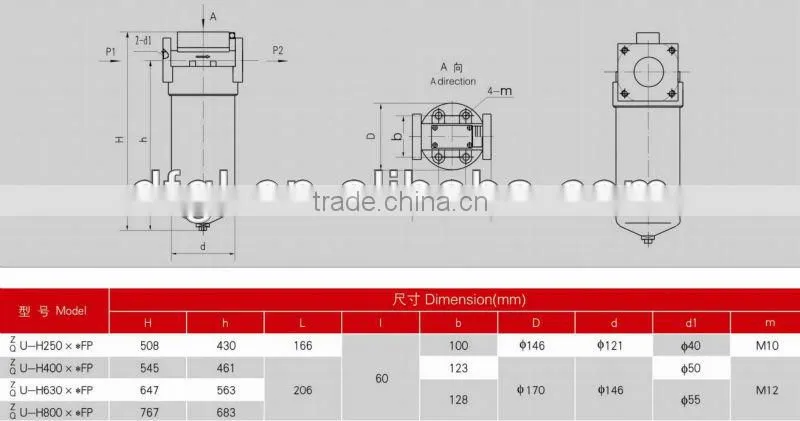

4.6 Inverted flange connection

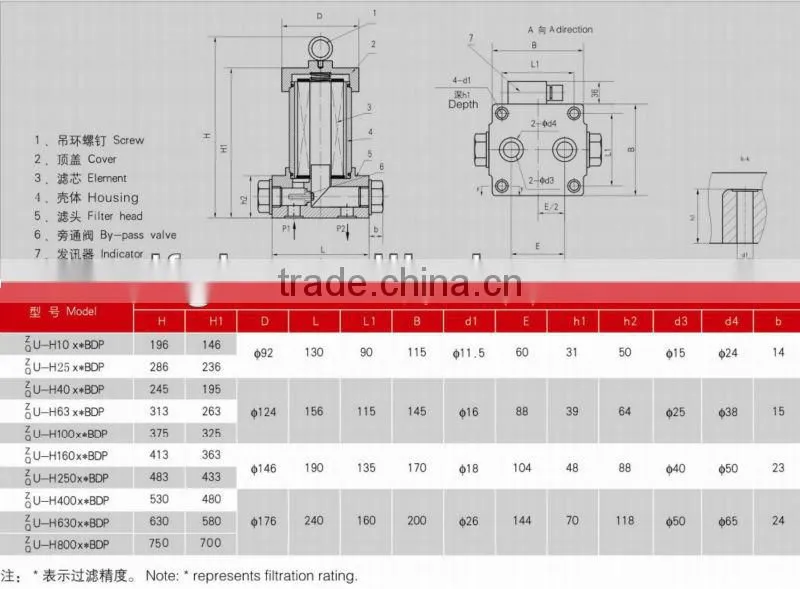

4.7 Inverted flange connection A

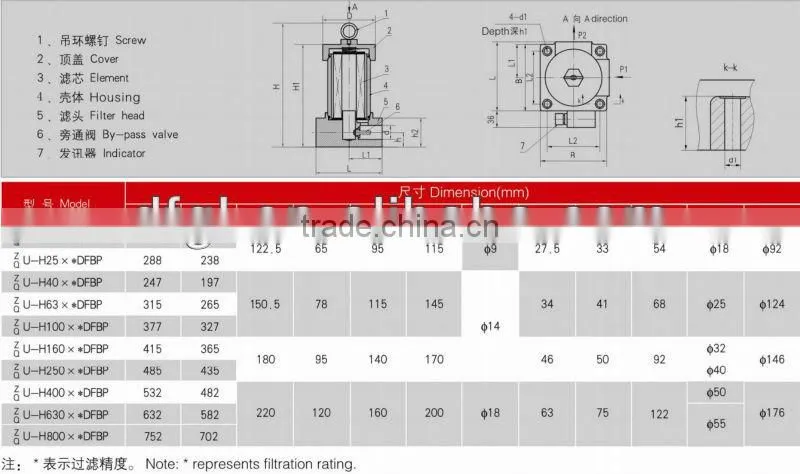

4.8 Inverted flange connection B



4.9 Inverted plated connection

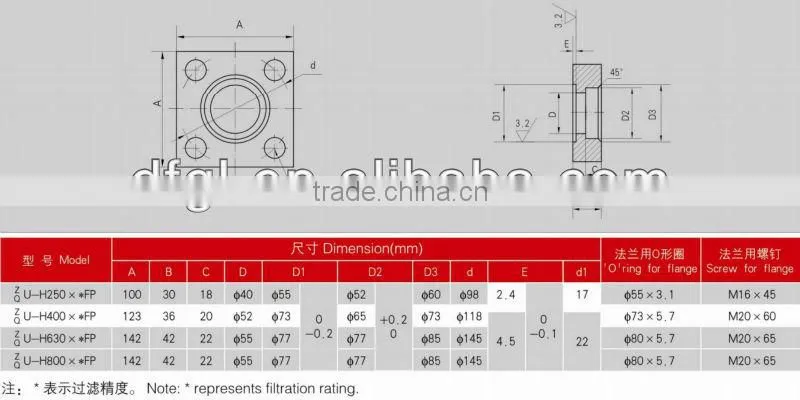

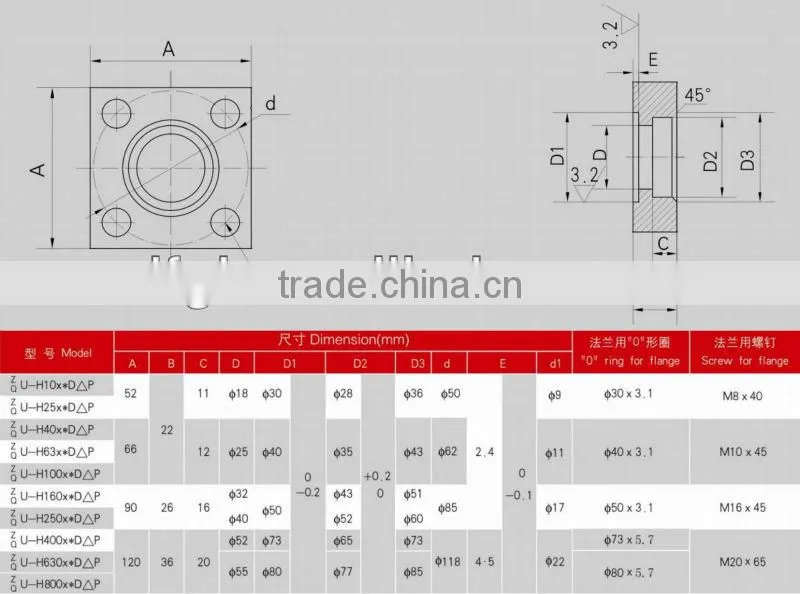

4.10 Connection falnges are processed as per the following dimensions
