ZU-H, QU-H High Pressure Hydrauli Filter/Oil Line Fuel Filter form OEM Enterprise
1. Product introduction
ZU-H, QU-H series filters are installed on pressure pipeline of the hydraulic system, there are these characteristics: high pressure resistance, high accuracy & multi-function etc., which can meet various requirements from the customer through installing different components. Series filter adopts glass fiber filter material, with high filtration rating, big flow rate capacity, low original pressure loss, large contamination retention capacity etc. advantages.
2. Product characteristics
Filter basic construction
ZU-H, QU-H filter is composed of the top cover and spin-on housing.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator: CS-V
By-pass valve (Setting 6bar)
2.5 Type of connection (chosen according to the filter type)
Metric thread connection; Inch threaded connection; Flanged connection
3. Type selection and technical data
3.1 Order Example

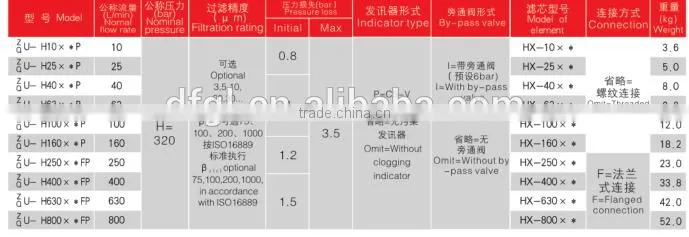

3.2 Model

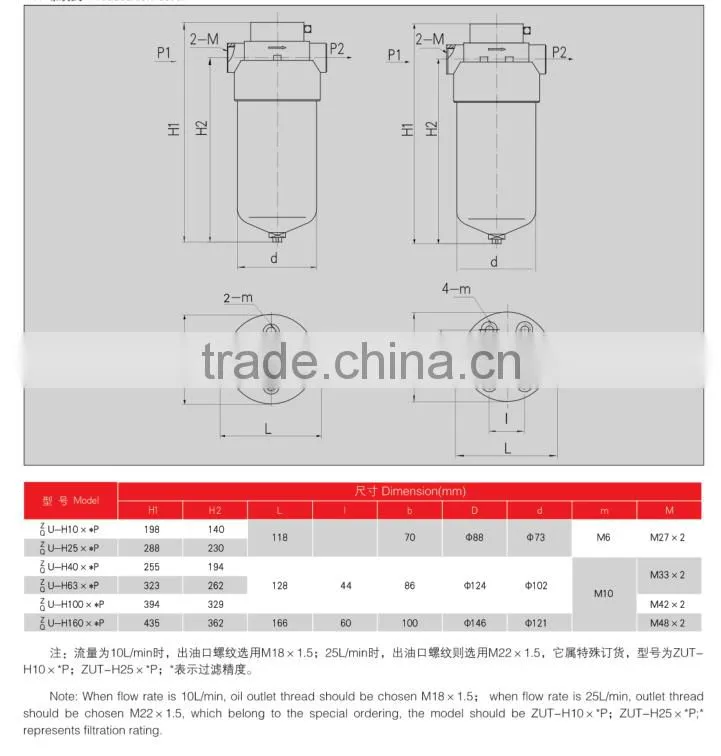

4. Mouting Size
Threaded connection
5. About Us
♦DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.

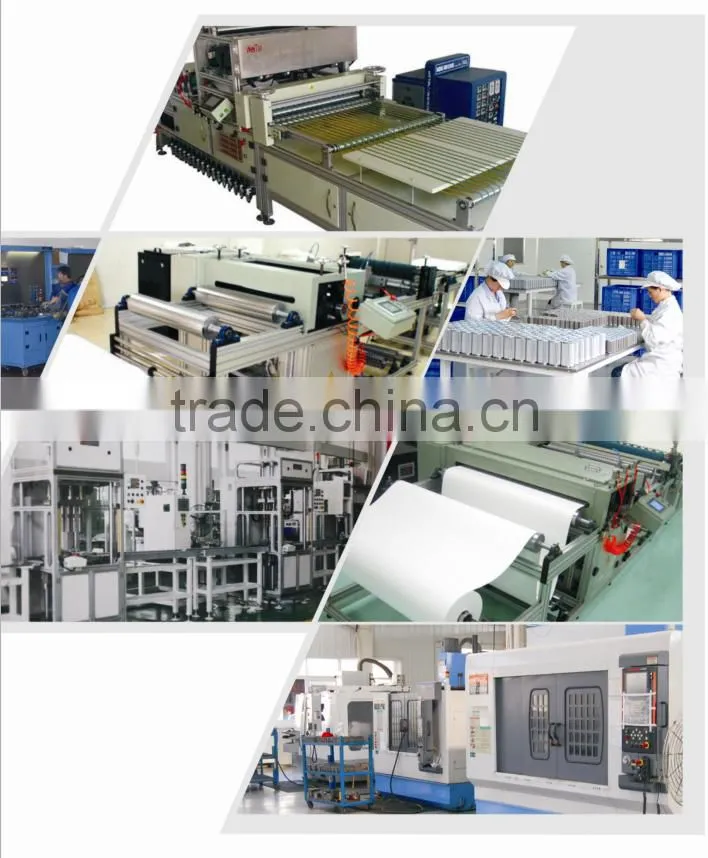

♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
