China Supplier Replacement HYDAC DFB High Pressure Filter
1. Product introduction
DFB... MA/DFB... QE series filters can be directly installed on system valve block, especially suitable for automatic control system and the servo system (can replace hydac DF...MA/DF... QE Series).
2. Product characteristics
Filter basic construction
DFB...MA/DFB...QE series filter consists of the cover and the spin-on housing.
The DFB...QE filter bowl with the flow rate above 660 liter is integral type; below 660 is separated structure.
2.1 Housing material
Filter cover: Ductile cast iron
Filter bowl: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Without clogging indicator,with steel plug
Visual clogging indicator:CM-03
Electrical clogging indicator:CM-05
Combined visual /electrical clogging indicator:CM-08
Bypass valve(setting 6 bar)
2.5 Type of connection (choose according to filter model)
DFB...QE series filters installed with four holes
DFB...MA series filters installed with two holes
The top and bottom direction of inlet/outlet port optional

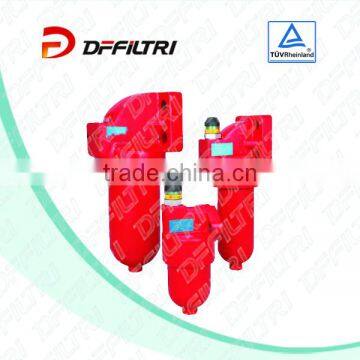

3. Product pictures

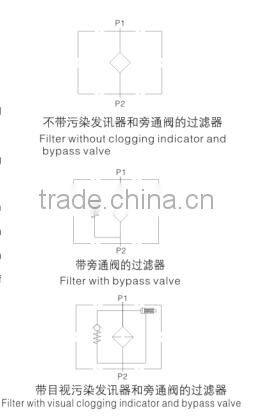

3.1 Symbols

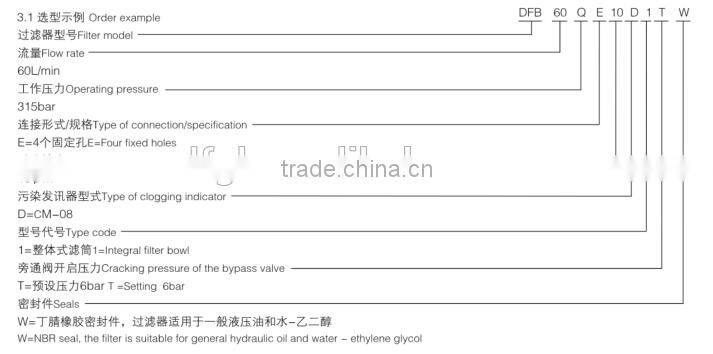

3.2 Order example

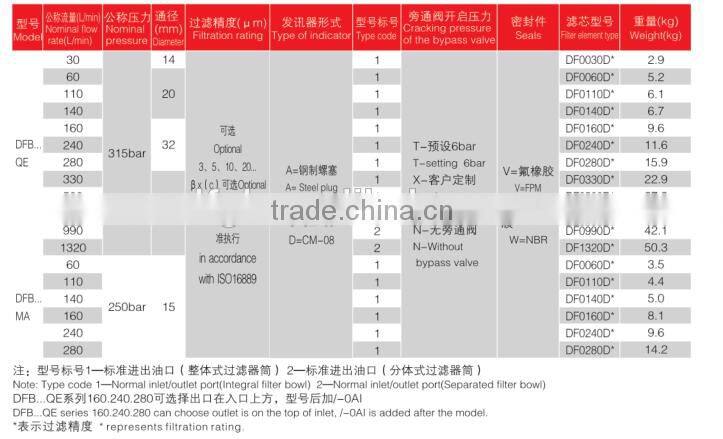

3.3 Technical data

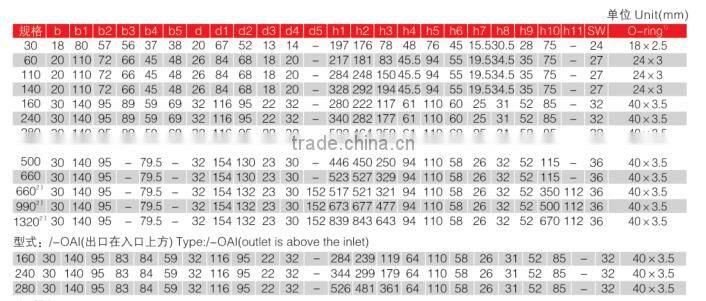

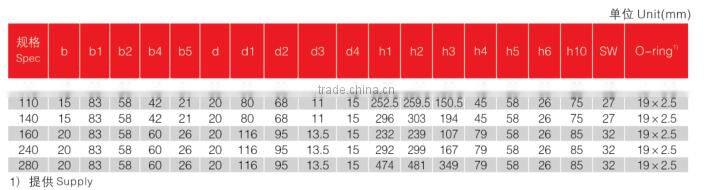

3.4 Specification
4. About us
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly
Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company's filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
♦Our product mainly interchangeable with following brand
PALL, HYDAC, MAHLE, PARKER, ARGO, FILTREC, STAUFF, VICKERS, EPPENSTEINER(EPE),TAISEI KOGYO, INTERNORMEN, MANN, DONALDSON, HY-PRO, MP-FILTRI, CAT, BENZ, VOLVO, CUMMINS, ALLISON,CLARK, EPE, SCHROEDER, LIEBHERR, DOOSAN, KOBELCO, JCB, FIEETGUARD, DEUTZ, SOFIMA, DETROIT, SACMI, KUBOTA,SAKURA, WIRTGEN, FAIFILTRI, SCHAEFF, POCLAIN, LUBERFINER, DYNAPAC, PALFINGER, SOFRANCE, VALMET, CECCATO, BOBCA, MCQUDY, COMMERCIAL, TAMROCK, SAUER-DANFOSS, PERKINS, JP-HBYB, LINDE
Xinxiang Dongfeng Filter Technology Co., Ltd.
Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland)
Telephone: 86-373-2677957
Mobile Phone: +86-18336074703
Fax: 86-373-2634868
