High Efficiency DFF High Pressure Filter (replacement of HYDAC DFZ series)
1. Product introduction
DFF series filter can be directly installed at the bottom of electromagnetic directional valve, prevent the slow reaction of the valve core, unstable or valve sticking, and too fast wear etc. failure happening (can replace Hydac DFZ series).
2. Product characteristics
Filter basic construction
DFF series filter consists of the cover and the spin-on housing
2.1 Housing material
Filter cover: Carbon steel; Filter bowl: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Without clogging indicator,with steel plug
Visual clogging indicator:CM-03
Electrical clogging indicator:CM-05
Combined visual /electrical clogging indicator:CM-08
Bypass valve(setting 6 bar)
2.5 Type of connection
Chousen according to the filter mounting size

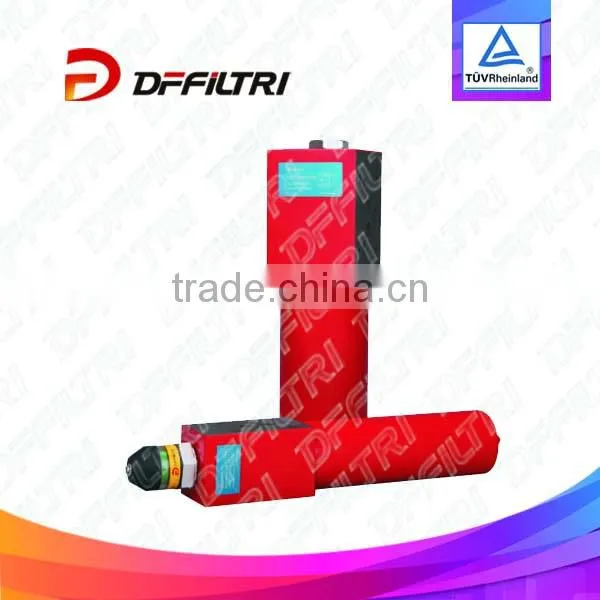

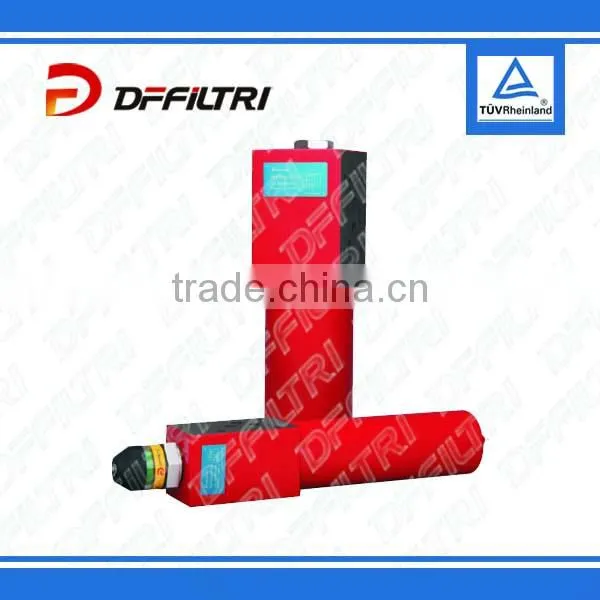

3. Product Pictures
3.1 Type Selection and Technical Data
3.2 Mounting Size

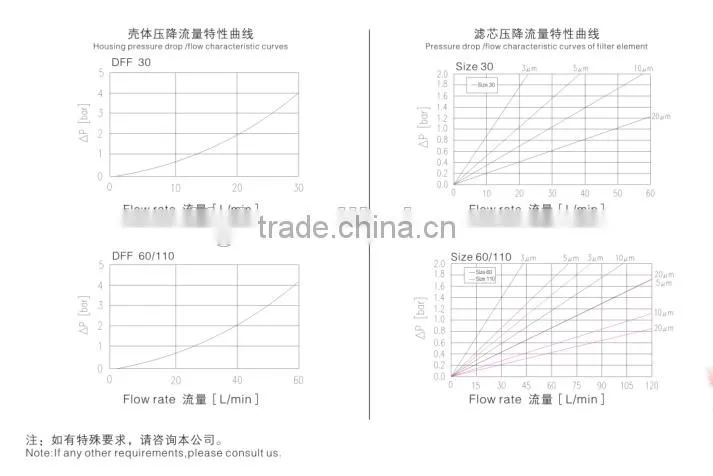

3.3 Product Characteristic Curves
Honour of DFFILTRI
♦ China's Quality Recognized Top Ten Well-known Filter Brand
♦Testing CenterThe Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation
♦DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
♦On-line particle counter of BETAB-HIAC/POYCO type (8000A/8000S) provided by HIAC/POYCO company in USA, and its supporting machine"Multi-pass test" and "single-pass test" implements ISO16889 new standard and other international standards perfectly.
♦Testing center also has the developed equiment for filter performance testing, which can make the comprehensive examination for filter element/cartridge performance. These can insure that company’s filter with high capacity, long life, high reliable in full compliance with our customer's requirement.
Xinxiang Dongfeng Filter Technology Co., Ltd.
Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland)
Telephone: 86-373-2677957
Mobile Phone: +86-18336074703
Fax: 86-373-2634868
