Specifications

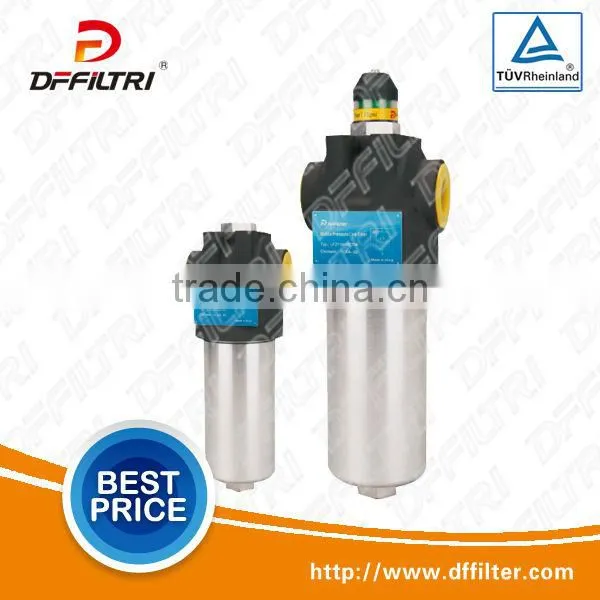

LFZ Medium Pressure Line Filter1. Easy install
2. 100% tested, Long Service Life
3. 7-30 working days prompt delivery
Strict Quality Control LFZ Medium Pressure Inline Filter for Hydraulic Oil Return Line System
Our Strategic Partners
P.S These are just part of our clients, in no particular order.
1. Product Introduction
LFZ series filters are installed on the medium pressure line, with these characteristics of high filtration accuracy,
small flow rate resistance,low initial pressure loss, high dirt-holding capacity, which can meet the various requirements from the customers (can replace Hydac LF series).
2. Product Characteristics
Filter basic construction
LFZ series filter consists of the cover and the spin-on housing .
2.1 Housing material
Filter cover: High strength casting aluminum alloy
Filter bowl: High strength aluminum alloy
2.2 Seals
Perbunan (=NBR) (-30~+120°C); Viton=FPM(-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Without clogging indicator,with steel plug
Visual clogging indicator:CM-03
Electrical clogging indicator:CM-05
Combined visual /electrical clogging indicator:CM-08
Bypass valve(setting 6 bar)
2.5 Type of connection (chosen according to the filter type)
Inch threaded connection

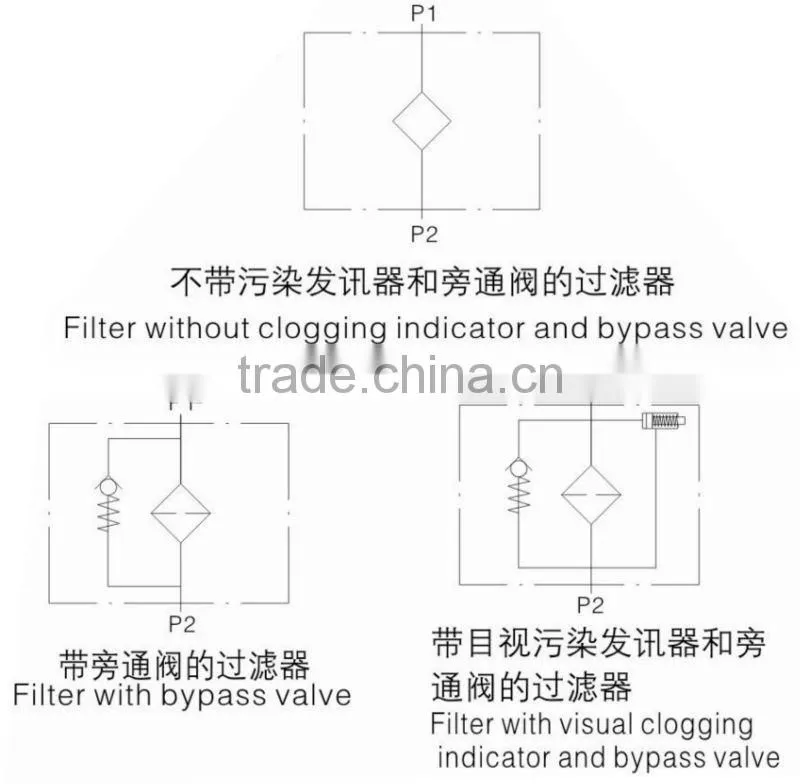

2.6 Symbols
3. Type Selection and Technical Data

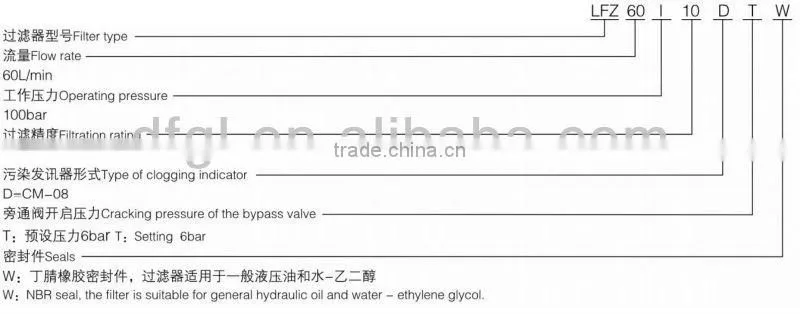

3.1 Order example
3.2 Technical Data
| Model | Nomal Flow Rate (L/min) | Nominal Pressure | Mounting Size | Filtration Rating ( μm ) |
Type of Indicator |
Cracking Pressure of the Bypass Valve (bar)
|
Seals |
Model of Filter Element |
Weight (kg) | |
| LFZ | 30 | 100 bar | G ½ |
Optional 3,5,10,20,30...
βx(c) optional 75,100,200,1000, in accordance with ISO 16889 |
A=Steel Plug
B=CM-03
C=CM-05
D=CM-08 |
T--Setting 6 bar
X--Custom-made
N--Without Bypas Valve |
V=FPM
W=NBR |
DF0030D* |
0.13 | |
| 60 | G ¾ | DF0060D* |
0.2 | |||||||
| 110 | G ¾ | DF0110D* |
0.33 | |||||||
| 160 | G 1¼ | DF0160D* |
0.6 | |||||||
| 240 | G 1¼ |
DF0240D* |
0.8 | |||||||
| 330 | G 1½ |
DF0330D* |
1.5 | |||||||
| 660 | G 1½ |
DF0660D*
|
3 | |||||||
Note: If any other requriements, please consult us; * represents filtration rating.

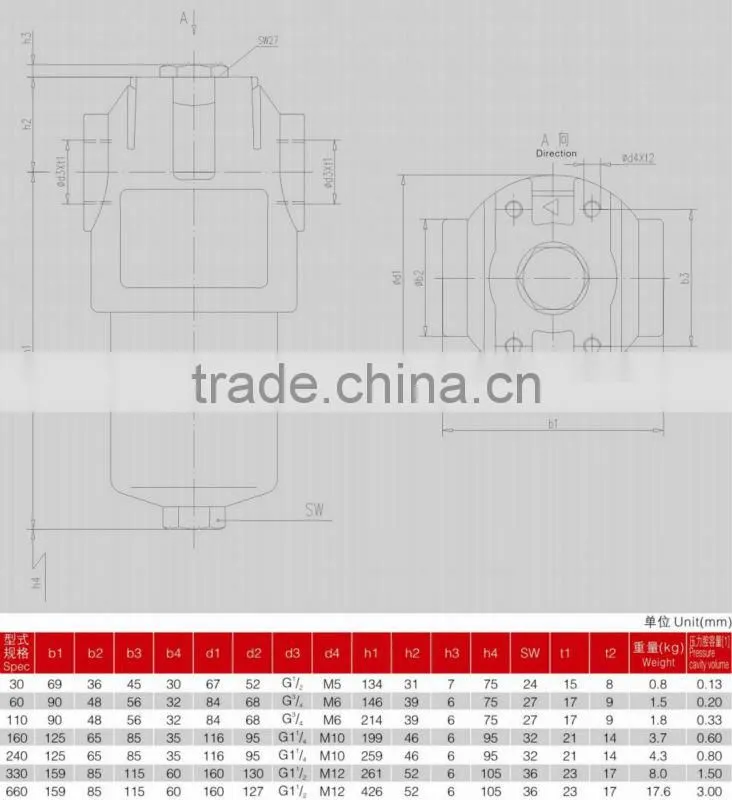

4. Mounting Size
5. Product Characteristic Curves
The total filter assembly pressure drop is the sum of housing and element pressure drop,filter selection calculated as per the following curves.

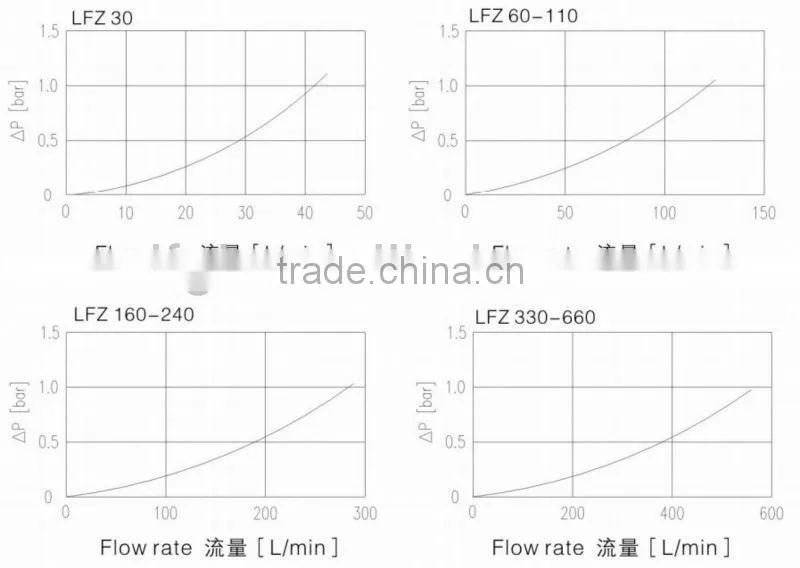

5.1 Housing pressure drop / flow rate characteristic curves
Housing pressure drop /flow rate characteristic curves are according to ISO3968, and suitable for the mineral oil with density 0.86 kg/dm³ and kinematic viscosity 30 mm²/s.

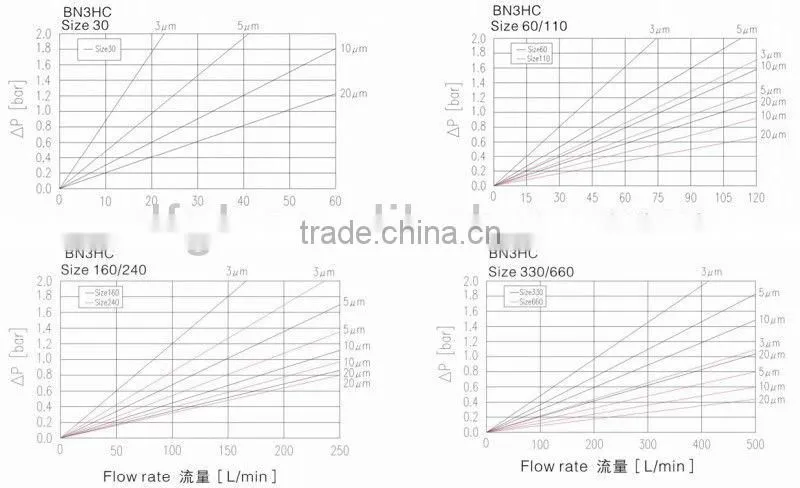

5.2 Differential pressure / flow characteristic curves of filter element
The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm²/s. Differential pressure and viscosity is proportional.
Note: If any other requriements, please consult us.
